Popis produktu:

Key Features

   X3D Turbo Mode to unleash new era gaming performance
   AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
   Digital 5+2+2 phases VRM solution
   Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
   EZ-Latch : PCIe x16 Slot with Quick Release Design
   Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
   Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
   Fast Networking : GbE LAN
   Extended Connectivity : 2*DP, HDMI

   CPU
   AMD Socket AM5, support for:
   AMD Ryzen™ 9000 Series Processors/
   AMD Ryzen™ 8000 Series Processors/
   AMD Ryzen™ 7000 Series Processors
   (Go to GIGABYTE's website for the latest CPU support list.)
   Chipset
   AMD B850
   Memory
   Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
   4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
   Dual channel memory architecture
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
   (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
   Onboard Graphics
   Integrated Graphics Processor with AMD Radeon™ Graphics support:
   - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

   * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
   ** Support for native HDMI 2.1 TMDS compatible ports.

   - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

   * Support for DisplayPort 1.4 version.

   (Graphics specifications may vary depending on CPU support.)
   Support for up to triple-display at the same time
   Audio
   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel

   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
   LAN
   Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
   Expansion Slots
   1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
   AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
   AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
   AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

   * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

   Chipset:
   - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
   Storage Interface
   1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
   AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
   AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
   AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

   1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
   AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
   AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
   AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

   4 x SATA 6Gb/s connectors
   RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

   * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

   RAID 0, RAID 1, and RAID 10 support for SATA storage devices
   USB
   CPU:
   - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
   - 1 x USB 3.2 Gen 1 port on the back panel
   - 1 x USB 2.0/1.1 port on the back panel
   Chipset:
   - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
   - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
   - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
   Internal I/O Connectors
   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x CPU fan header
   1 x CPU fan/water cooling pump header
   1 x system fan header
   1 x system fan/water cooling pump header
   2 x addressable RGB Gen2 LED strip headers
   1 x RGB LED strip header
   2 x M.2 Socket 3 connectors
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x USB Type-C® header, with USB 3.2 Gen 1 support
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
   1 x reset jumper
   1 x Clear CMOS jumper

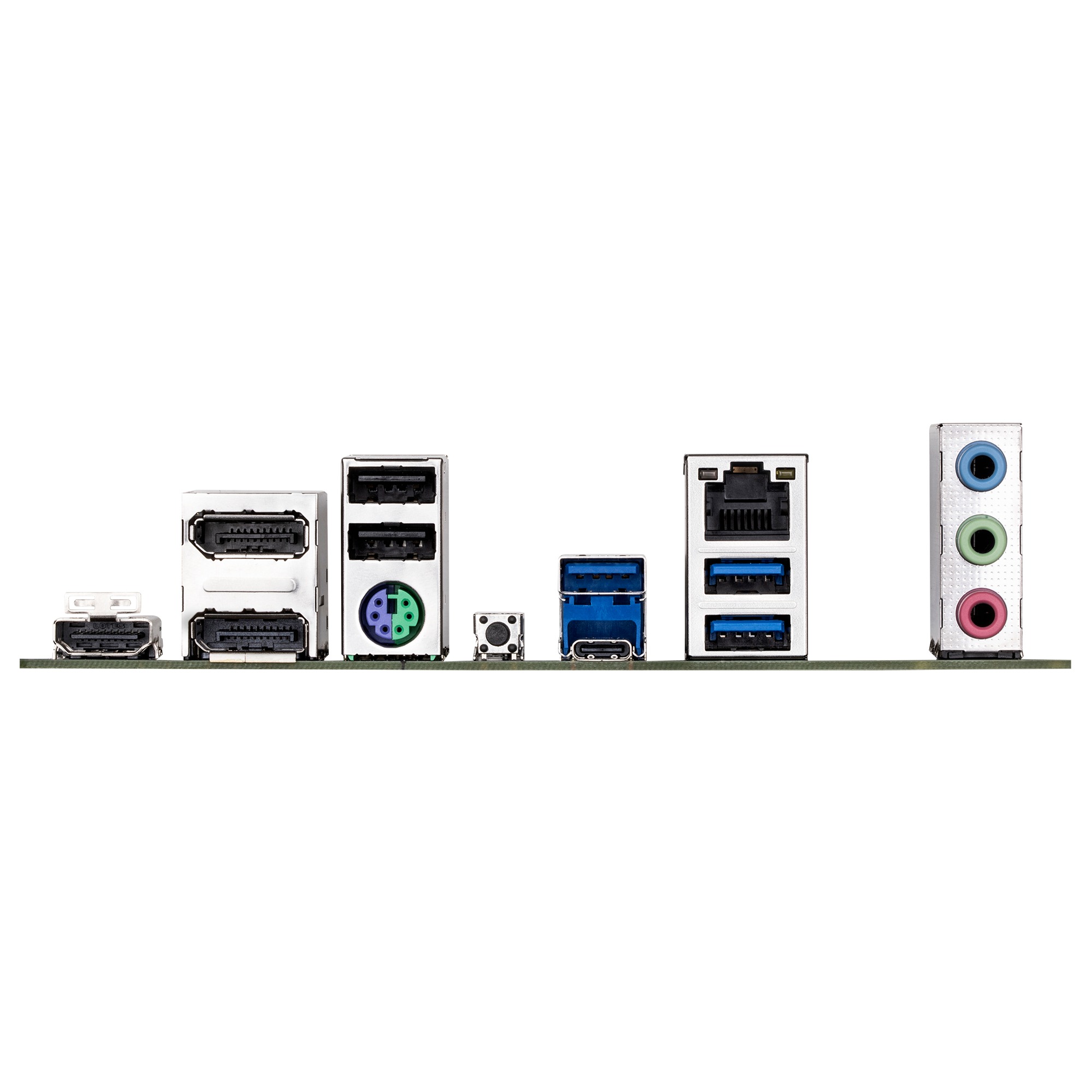

   Back Panel Connectors
   1 x HDMI port (Note)
   2 x DisplayPorts (Note)
   1 x PS/2 keyboard/mouse port
   1 x Q-Flash Plus button
   1 x USB Type-C® port, with USB 3.2 Gen 1 support
   3 x USB 3.2 Gen 1 ports
   2 x USB 2.0/1.1 ports
   1 x RJ-45 port
   3 x audio jacks

   (Note) Actual support may vary by CPU.
   I/O Controller
   iTE® I/O Controller Chip
   H/W Monitoring
   Voltage detection
   Temperature detection
   Fan speed detection
   Water cooling flow rate detection
   Fan fail warning
   Fan speed control

   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
   BIOS
   1 x 256 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
   Unique Features
   Support for GIGABYTE Control Center (GCC)

   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

   Support for Q-Flash
   Support for Q-Flash Plus
   Support for Smart Backup
   Bundled Software
   Norton® Internet Security (OEM version)
   LAN bandwidth management software
   Operating System
   Support for Windows 11 64-bit
   Support for Windows 10 64-bit
   Form Factor
   Micro ATX Form Factor; 24.4cm x 24.4cm
