Popis produktu:

LGA1200 package:
   11th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
   10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
   Intel® H470 Express Chipset
Memory
   11th Generation Intel® Core™ i9/i7/i5 processors:
   Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
   10th Generation Intel® Core™ i9/i7 processors:
   Support for DDR4 2933/2666/2400/2133 MT/s memory modules
   10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
   Support for DDR4 2666/2400/2133 MT/s memory modules
   2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
   Dual channel memory architecture
   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
   1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
   * The D-Sub port is only available with the 10th Generation processors.
   1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
   Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
CPU:
   1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
   1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
Chipset:
   1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
   4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
USB
Chipset:
   4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
   6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x CPU fan header
   1 x system fan header
   1 x RGB LED strip header
   1 x M.2 Socket 3 connector
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x USB 3.2 Gen 1 header
   1 x USB 2.0/1.1 header
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
   1 x serial port header
   1 x Clear CMOS jumper

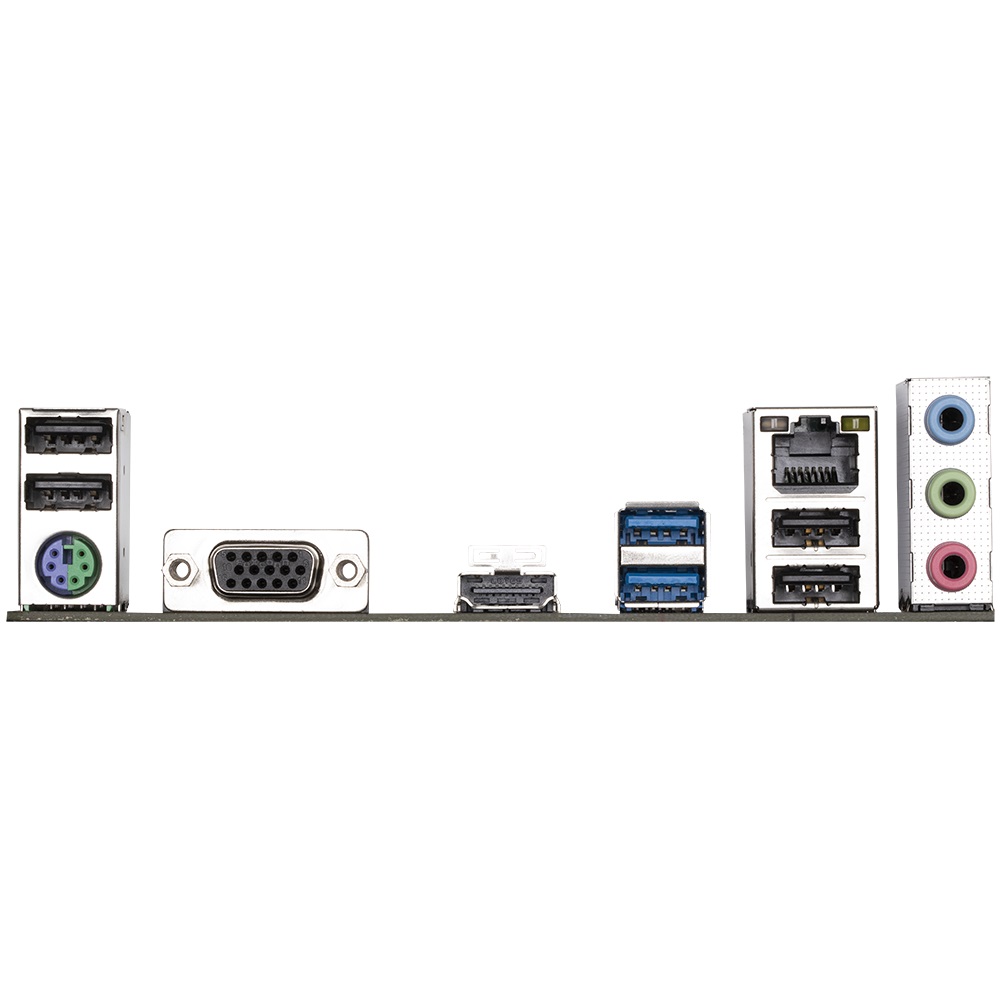

Back Panel Connectors
   1 x PS/2 keyboard/mouse port
   1 x D-Sub port
   1 x HDMI port
   2 x USB 3.2 Gen 1 ports
   4 x USB 2.0/1.1 ports
   1 x RJ-45 port
   3 x audio jacks
Operating System
   Support for Windows 11 64-bit
   Support for Windows 10 64-bit
Form Factor
   Micro ATX Form Factor; 22.6cm x 18.5cm
