Popis produktu:

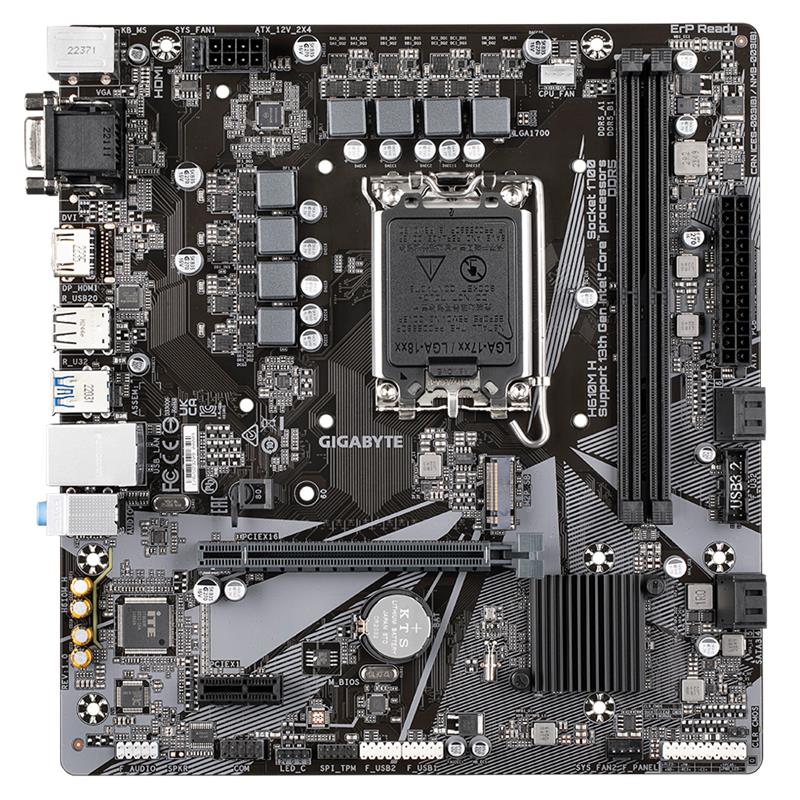

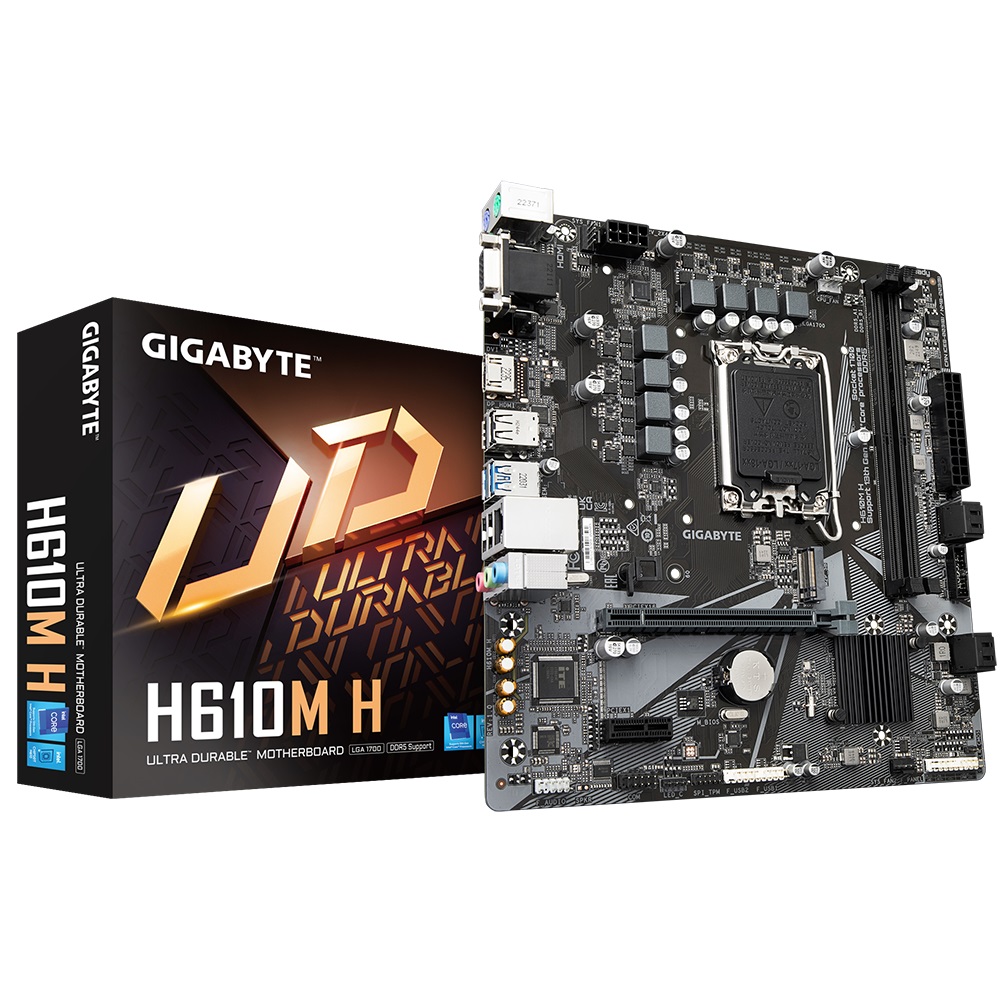

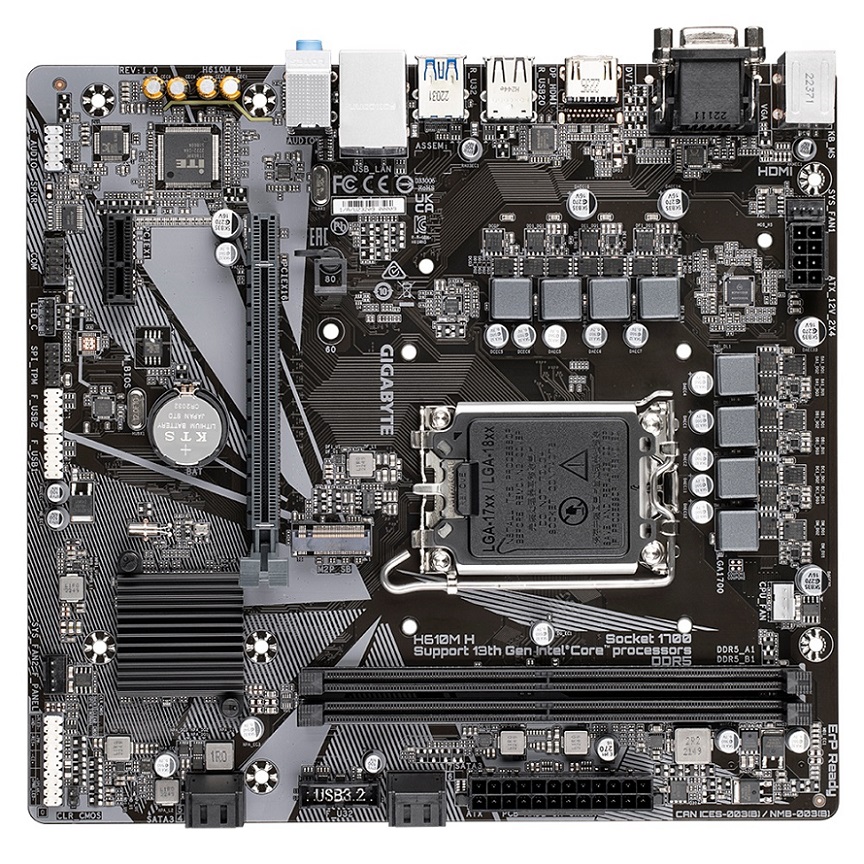

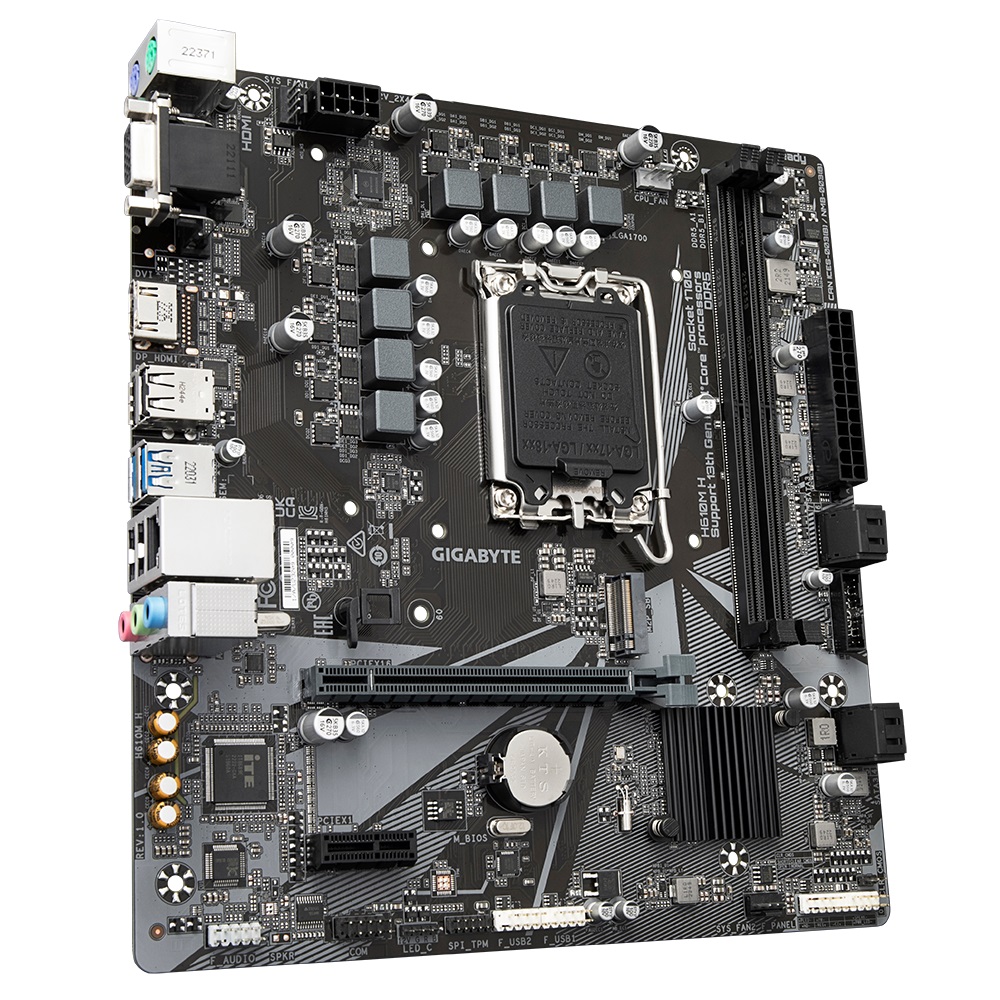

Intel® H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 6

   Supports 13th/12th Gen Intel® Core™ Series Processors
   Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
   6+1+1 Hybrid Digital VRM Design
   GbE LAN with Bandwidth Management
   NVMe PCIe 3.0 x4 M.2
   High Quality Audio Capacitors and Audio Noise Guard
   Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
   GIGABYTE APP Center, Simple and Easy Use
   Anti-Sulfur Resistors Design


* Actual support may vary by CPU.




   CPU
       LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
       L3 cache varies with CPU
   * Please refer to "CPU Support List" for more information.
   Chipset
       Intel® H610 Express Chipset
   Memory
       13th Generation Intel® Core™ i9/i7 processors:
       Support for DDR5 5600/5200/4800/4400 MT/s memory modules
       13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
       Support for DDR5 4800/4400 MT/s memory modules
       2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
       Dual channel memory architecture
       Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
       Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
       Support for Extreme Memory Profile (XMP) memory modules
   (Please refer "Memory Support List" for more information.)
   Onboard Graphics
   Integrated Graphics Processor-Intel® HD Graphics support:
       1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
       1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
       * Support for HDMI 2.1 version and HDCP 2.3.
       ** Support native HDMI 2.1 TMDS compatible ports
   (Graphics specifications may vary depending on CPU support.)
   Audio
       Realtek® Audio CODEC
       High Definition Audio
       2/4/5.1/7.1-channel
       * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
   LAN
       Realtek® GbE LAN chip (1 Gbps/100 Mbps)
   Expansion Slots
   CPU:
       1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
   Chipset:
       1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
   Storage Interface
   Chipset:
       1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
       4 x SATA 6Gb/s connectors
   USB
   Chipset:
       4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
       4 x USB 2.0/1.1 ports on the back panel
   Chipset+USB 2.0 Hub:
       4 x USB 2.0/1.1 ports available through the internal USB headers
   Internal I/O Connectors
       1 x 24-pin ATX main power connector
       1 x 8-pin ATX 12V power connector
       1 x CPU fan header
       2 x system fan headers
       1 x M.2 Socket 3 connector
       4 x SATA 6Gb/s connectors
       1 x RGB LED strip header
       1 x front panel header
       1 x front panel audio header
       1 x USB 3.2 Gen 1 header
       2 x USB 2.0/1.1 headers
       1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
       1 x serial port header
       1 x Clear CMOS jumper

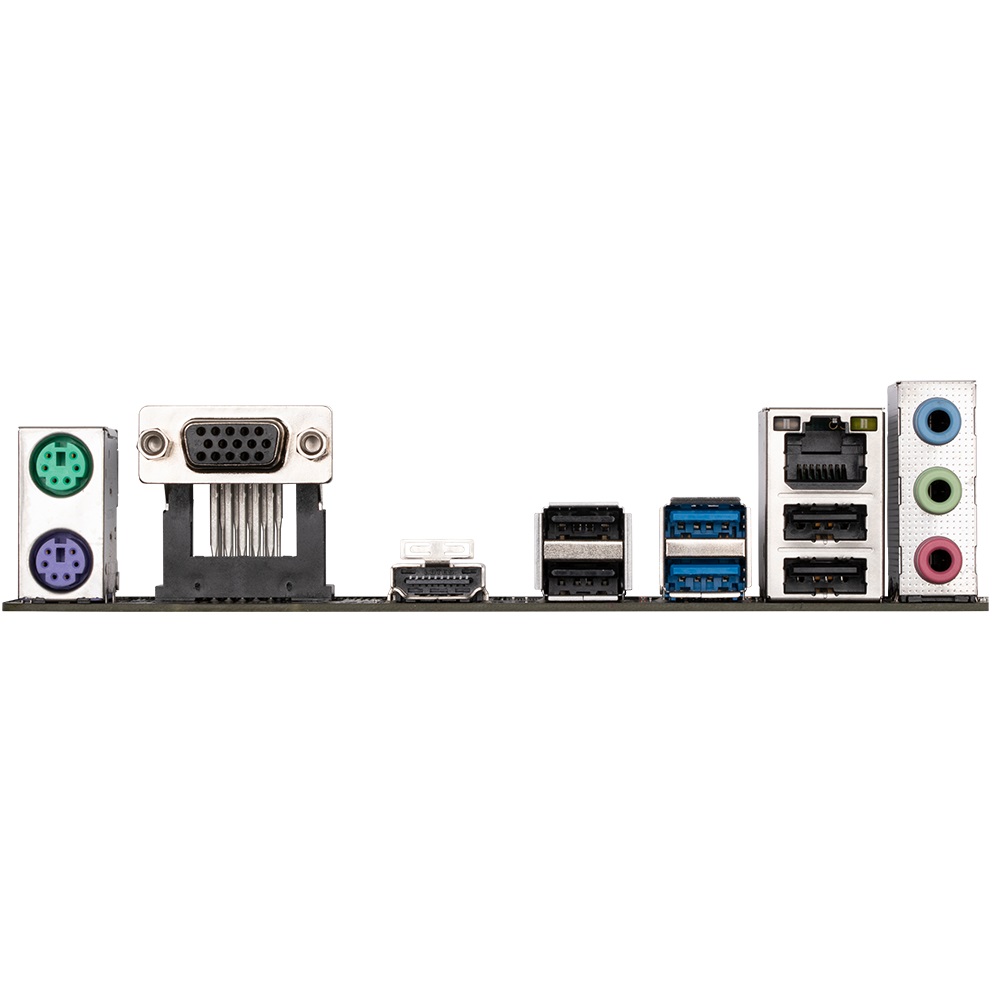

   Back Panel Connectors
       1 x PS/2 keyboard port
       1 x PS/2 mouse port
       1 x D-Sub port
       1 x HDMI port
       2 x USB 3.2 Gen 1 ports
       4 x USB 2.0/1.1 ports
       1 x RJ-45 port
       3 x audio jacks
   I/O Controller
       iTE® I/O Controller Chip
   H/W Monitoring
       Voltage detection
       Temperature detection
       Fan speed detection
       Water cooling flow rate detection
       Fan fail warning
       Fan speed control
       * Whether the fan speed control function is supported will depend on the cooler you install.
   BIOS
       1 x 128 Mbit flash
       Use of licensed AMI UEFI BIOS
       PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
   Unique Features
       Support for APP Center
       * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
       @BIOS
       Ambient LED
       EasyTune
       Smart Backup
       System Information Viewer
       Support for Q-Flash
       Support for Xpress Install
   Bundled Software
       Norton® Internet Security (OEM version)
       LAN bandwidth management software
   Operating System
       Support for Windows 11 64-bit
       Support for Windows 10 64-bit
   Form Factor
       Micro ATX Form Factor; 23.0cm x 21.5cm
