Popis produktu:

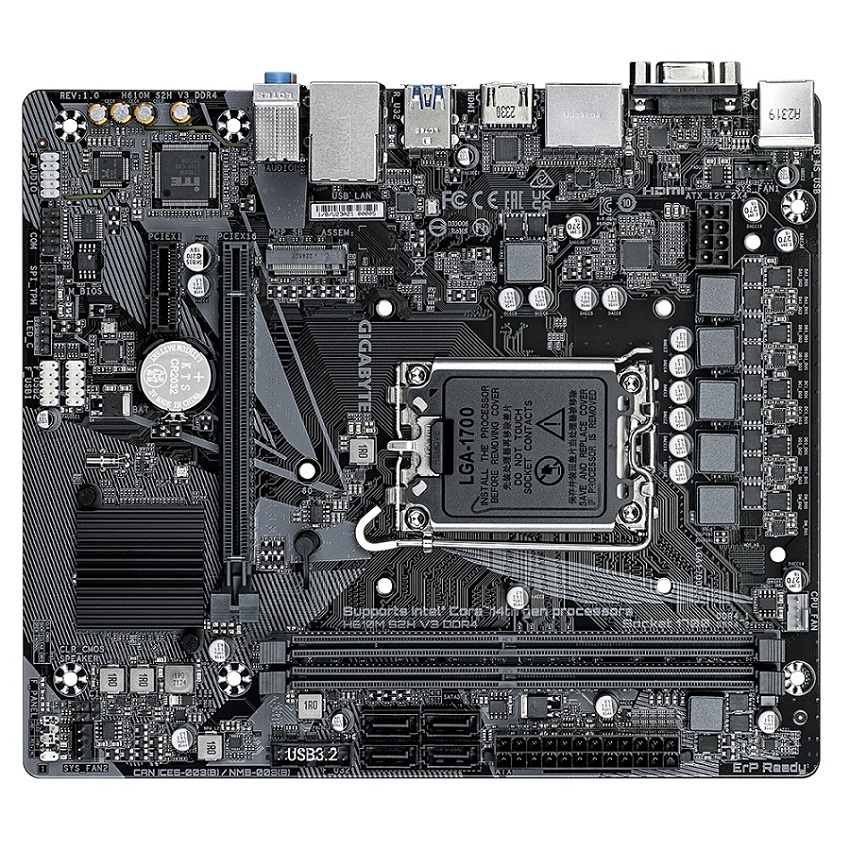

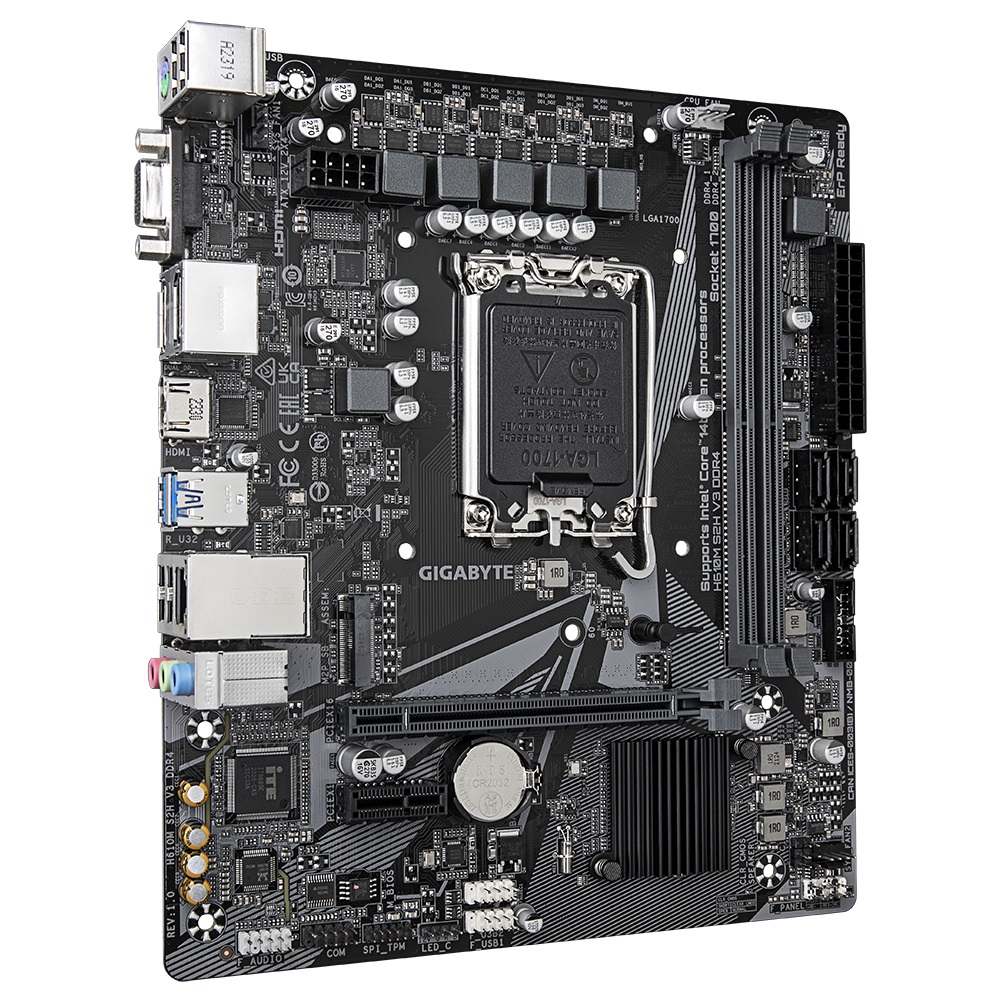

Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display , Anti-Sulfur Resistor, Smart Fan 6

   Supports Intel® Core™ 14th/ 13th /12th processors
   Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
   4+1+1 Hybrid Digital VRM Design
   GbE LAN with Bandwidth Management
   NVMe PCIe 3.0 x4 M.2
   2*DisplayPort / HDMI / D-Sub Ports for Multiple Display
   High Quality Audio Capacitors and Audio Noise Guard
   Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
   GIGABYTE APP Center, Simple and Easy Use
   Anti-Sulfur Resistors Design



   CPU
   LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
   L3 cache varies with CPU
   (Please refer "CPU Support List" for more information.)
   Chipset
   Intel® H610 Express Chipset
   Memory
   Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
   2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
   Dual channel memory architecture
   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for Extreme Memory Profile (XMP) memory modules
   (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
   Onboard Graphics
   Integrated Graphics Processor-Intel® HD Graphics support:
   - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
   - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

   * Support for HDMI 2.0 version and HDCP 2.3.

   - 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz

   * Support for DisplayPort 1.2 version and HDCP 2.3

   (Graphics specifications may vary depending on CPU support.)
   Support for up to triple-display at the same time
   Audio
   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel

   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
   LAN
   Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps
   Expansion Slots
   CPU:
   - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
   Chipset:
   - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
   Storage Interface
   Chipset:
   - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
   - 4 x SATA 6Gb/s connectors
   USB
   Chipset:
   - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
   - 4 x USB 2.0/1.1 ports on the back panel
   Chipset+USB 2.0 Hub:
   - 4 x USB 2.0/1.1 ports available through the internal USB headers
   Internal I/O Connectors
   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x CPU fan header
   2 x system fan headers
   1 x M.2 Socket 3 connector
   4 x SATA 6Gb/s connectors
   1 x RGB LED strip header
   1 x front panel header
   1 x front panel audio header
   1 x speaker header
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
   1 x serial port header
   1 x Clear CMOS jumper
   1 x chassis intrusion header

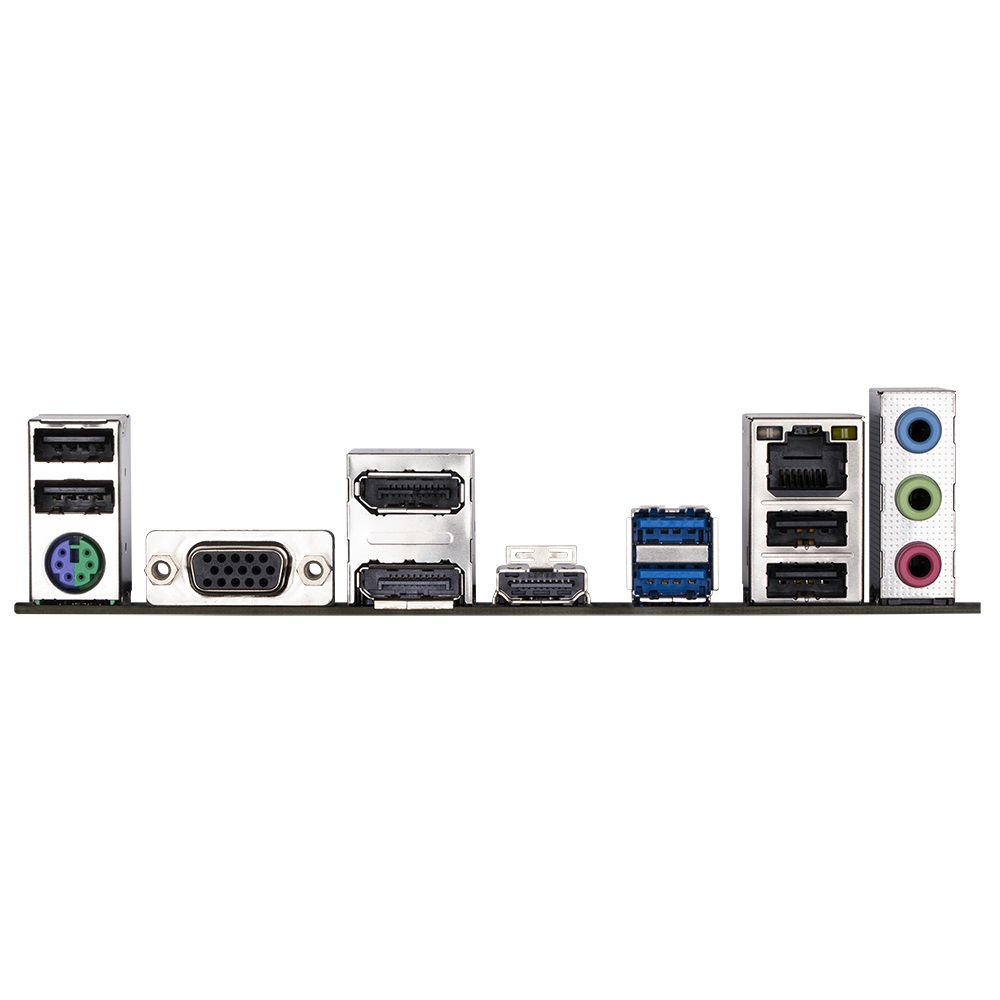

   Back Panel Connectors
   1 x PS/2 keyboard/mouse port
   1 x D-Sub port
   2 x DisplayPorts
   1 x HDMI port
   2 x USB 3.2 Gen 1 ports
   4 x USB 2.0/1.1 ports
   1 x RJ-45 port
   3 x audio jacks
   I/O Controller
   iTE® I/O Controller Chip
   H/W Monitoring
   Voltage detection
   Temperature detection
   Fan speed detection
   Water cooling flow rate detection
   Fan fail warning
   Fan speed control

   * Whether the fan speed control function is supported will depend on the fan you install.
   BIOS
   1 x 128 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
   Unique Features
   Support for APP Center

   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

   - @BIOS
   - EasyTune
   - Smart Backup
   - System Information Viewer
   Support for Q-Flash
   Bundled Software
   Norton® Internet Security (OEM version)
   LAN bandwidth management software
   Operating System
   Support for Windows 11 64-bit
   Support for Windows 10 64-bit
   Form Factor
   Micro ATX Form Factor; 22.3cm x 19.3cm
