Popis produktu:

   AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
   Unparalleled Performance:8+2+1 Phases Digital VRM Solution
   Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
   SuperSpeed Storage:2*PCIe 4.0 x4 M.2 Connectors
   Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD Performance
   EZ-Latch:PCIe x16 Slot with Quick Release Design
   Fast Networks:2.5GbE LAN
   Extended Connectivity:DP, HDMI, USB-C® 10Gb/s
   Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
   Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card



   AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

(Please refer "CPU Support List" for more information.)
Chipset

   AMD B650

Memory

   Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules
   4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
   Dual channel memory architecture
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:

   1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
   * Support for DisplayPort 1.4 version.
   1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)
Audio

   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

   Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots
CPU:

   1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

   1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface
CPU:

   1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
   1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)

Chipset:

   4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:

   1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
   1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
   2 x USB 2.0/1.1 ports on the back panel

Chipset:

   1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
   4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
   4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x CPU fan header
   2 x system fan headers
   1 x addressable LED strip header
   1 x RGB LED strip header
   2 x M.2 Socket 3 connectors
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x USB Type-C® header, with USB 3.2 Gen 1 support
   1 x USB 3.2 Gen 1 header
   1 x USB 2.0/1.1 header
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
   1 x reset jumper
   1 x Clear CMOS jumper

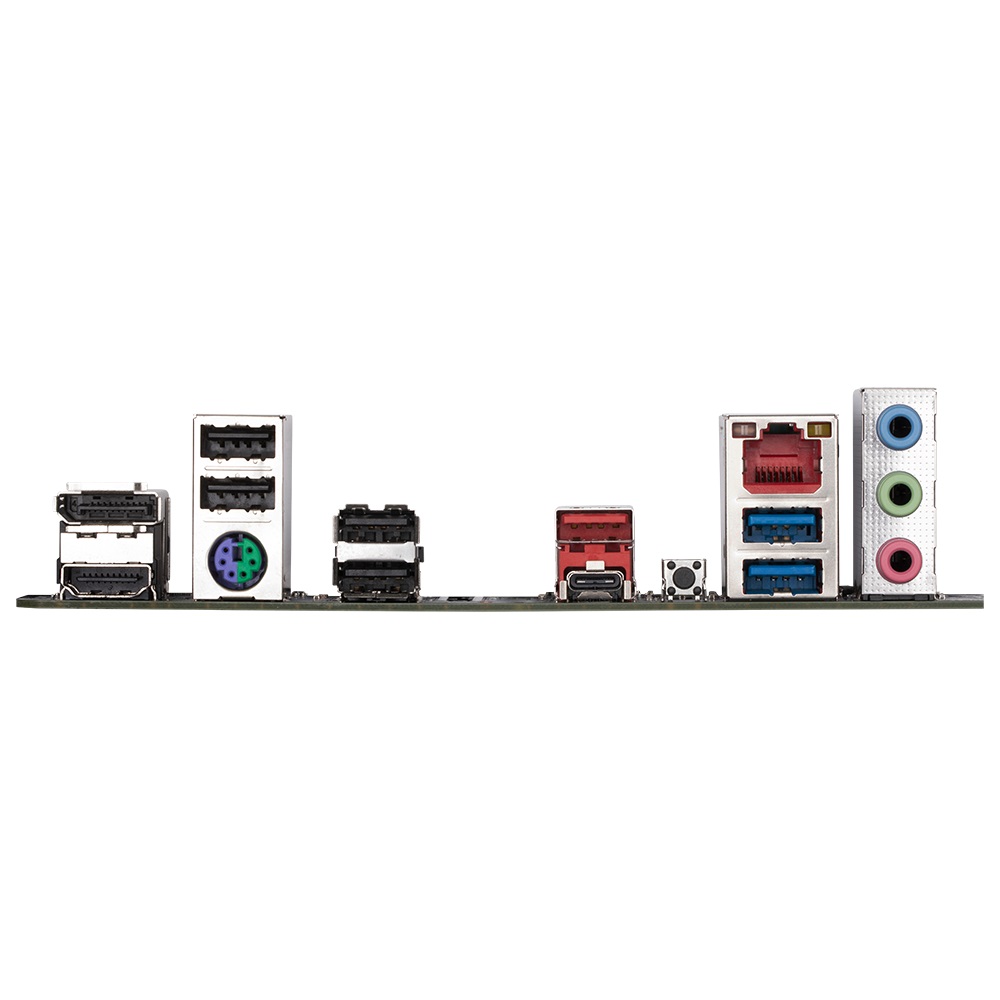

Back Panel Connectors

   1 x DisplayPort
   1 x HDMI port
   4 x USB 2.0/1.1 ports
   1 x PS/2 keyboard/mouse port
   1 x USB 3.2 Gen 2 Type-A port (red)
   1 x USB Type-C® port, with USB 3.2 Gen 2 support
   1 x Q-Flash Plus button
   1 x RJ-45 port
   2 x USB 3.2 Gen 1 ports
   3 x audio jacks

I/O Controller

   iTE® I/O Controller Chip

H/W Monitoring

   Voltage detection
   Temperature detection
   Fan speed detection
   Water cooling flow rate detection
   Fan fail warning
   Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

   1 x 256 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

   Support for GIGABYTE Control Center (GCC)
   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   Support for Q-Flash
   Support for Q-Flash Plus

Bundled Software

   Norton® Internet Security (OEM version)
   LAN bandwidth management software

Operating System

   Support for Windows 11 64-bit
   Support for Windows 10 64-bit

Form Factor

   Micro ATX Form Factor; 24.4cm x 24.4cm
