Popis produktu:

   LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
   L3 cache varies with CPU

* Please refer to "CPU Support List" for more information.
Chipset

   Intel® Z790 Express Chipset

Memory

   Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
   4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
   Dual channel memory architecture
   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:

   1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz
   * Support for drawing tablets and 20V@3A of power delivery.
   * Support for DisplayPort 1.4 version and HDR.
   1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specifications may vary depending on CPU or graphics card support.)
Audio

   Realtek® ALC1220-VB CODEC
   * The back panel line out jack supports DSD audio.
   High Definition Audio
   2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
   Support for S/PDIF Out

LAN

   Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module
Intel® Wi-Fi 6E AX211

   WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
   BLUETOOTH 5.3
   Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU:

   1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
   * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

   1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
   1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Storage Interface
CPU:

   1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
   1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

   1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
   1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
   1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
   4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:

   2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
   1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
   2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
   2 x USB 3.2 Gen 1 ports available through the internal USB header
   2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 3.2 Gen 1 Hub:

   4 x USB 3.2 Gen 1 ports on the back panel

Chipset+USB 2.0 Hub:

   4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x 4-pin ATX 12V power connector
   1 x CPU fan header
   1 x water cooling CPU fan header
   4 x system fan headers
   2 x system fan/water cooling pump headers
   2 x addressable LED strip headers
   2 x RGB LED strip headers
   5 x M.2 Socket 3 connectors
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   1 x noise detection header
   2 x Thunderbolt™ add-in card connectors
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
   1 x serial port header
   1 x Q-Flash Plus button
   1 x reset button
   1 x reset jumper
   2 x temperature sensor headers
   1 x Clear CMOS jumper

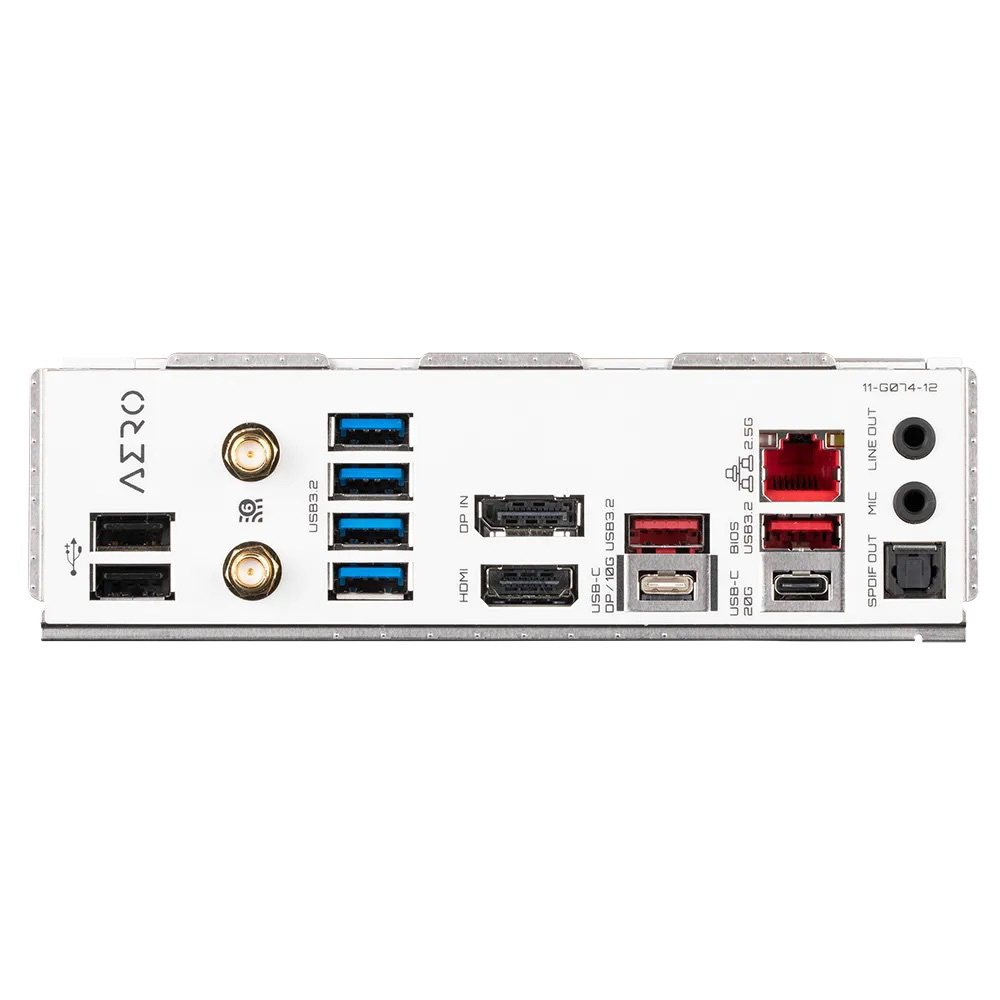

Back Panel Connectors

   2 x USB 2.0/1.1 ports
   2 x SMA antenna connectors (2T2R)
   4 x USB 3.2 Gen 1 ports
   1 x DisplayPort In port
   1 x HDMI 2.0 port
   2 x USB 3.2 Gen 2 Type-A ports (red)
   1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
   1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
   1 x RJ-45 port
   1 x optical S/PDIF Out connector
   2 x audio jacks

I/O Controller

   iTE® I/O Controller Chip

H/W Monitoring

   Voltage detection
   Temperature detection
   Fan speed detection
   Water cooling flow rate detection
   Fan fail warning
   Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
   Noise detection

BIOS

   1 x 256 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

   Support for GIGABYTE Control Center (GCC)
   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   Support for Q-Flash
   Support for Q-Flash Plus
   Support for Smart Backup

Bundled Software

   Norton® Internet Security (OEM version)
   LAN bandwidth management software

Operating System

   Support for Windows 11 64-bit
   Support for Windows 10 64-bit

Form Factor

   ATX Form Factor; 30.5cm x 24.4cm
