Popis produktu:

Key Features

   Supports Intel® Core™ 13th and next-gen processors
   Digital twin 18+1+2 phases VRM solution
   Dual Channel DDR5:4*DIMMs with XMP 3.0 memory module support
   PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
   EZ-Latch Click:M.2 heatsinks with screwless design
   EZ-Latch Plus:M.2 slots with quick release design
   Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
   UC BIOS:User-Centred intuitive UX with Quick Access function
   Ultra-Fast Storage:5*M.2 slots, including 1* PCIe 5.0 x4
   Efficient Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard XL
   Fast Networking:5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
   Extended Connectivity:HDMI, DP IN, Front & Rear USB-C® 20Gb/s
   High-Res Audio:ALC1220 & Audiophile Grade Capacitors



   CPU
   LGA1700 socket: Support for the 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
   L3 cache varies with CPU

   * Please refer to "CPU Support List" for more information.
   Chipset
   Intel® Z790 Express Chipset
   Memory
       Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
       4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
       Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
       Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
       Support for Extreme Memory Profile (XMP) memory modules
   (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
   Onboard Graphics
   Integrated Graphics Processor-Intel® HD Graphics support:
   - 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz

   * Support for drawing tablets and 20V@3A of power delivery.
   * Support for DisplayPort 1.2 version and HDR.

   - 1 x USB Type-C® port, supporting USB 2.0 and DisplayPort video outputs and a maximum resolution of 1920x1080@30 Hz
   - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

   * Support for HDMI 2.0 version and HDCP 2.3.

   (Graphics specifications may vary depending on CPU or graphics card support.)
   Audio
   Realtek® ALC1220-VB CODEC

   *The back panel line out jack supports DSD audio.

   High Definition Audio
   2/4/5.1/7.1-channel

   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

   Support for S/PDIF Out
   LAN
   Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
   Wireless Communication module
   MediaTek Wi-Fi 7 MT7927, RZ738 (For PCB rev. 1.0)
   - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
   - BLUETOOTH 5.3
   - Support for 11be 320MHz wireless standard
   Intel® Wi-Fi 7 BE200 (For PCB rev. 1.1)
   - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
   - BLUETOOTH 5.3
   - Support for 11be 320MHz wireless standard
   (Actual data rate may vary depending on environment and equipment.)
   Expansion Slots
   CPU:
   - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

   * The PCIEX16 slot shares bandwidth with the M2C_CPU connectors.

   The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.

   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

   Chipset:
   - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
   - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
   Storage Interface
   CPU:
   - 1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
   - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
   Chipset:
   - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
   - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
   - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
   - 4 x SATA 6Gb/s connectors
   RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
   RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
   USB
   Chipset:
   - 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
   - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
   - 1 x USB Type-C® port onboard, with USB 2.0 support
   - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
   - 2 x USB 3.2 Gen 1 ports available through the internal USB header
   - 2 x USB 2.0/1.1 ports on the back panel
   Chipset+USB 3.2 Gen 1 Hub:
   - 4 x USB 3.2 Gen 1 ports on the back panel
   Chipset+USB 2.0 Hub:
   - 4 x USB 2.0/1.1 ports available through the internal USB headers
   Internal I/O Connectors
   1 x 24-pin ATX main power connector
   2 x 8-pin ATX 12V power connectors
   1 x CPU fan header
   1 x CPU fan/water cooling pump header
   4 x system fan headers
   2 x system fan/water cooling pump headers
   3 x addressable RGB Gen2 LED strip headers
   1 x RGB LED strip header
   5 x M.2 Socket 3 connectors
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
   1 x USB Type-C® port (DisplayPort), with USB 2.0 support
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   1 x noise detection header
   2 x Thunderbolt™ add-in card connectors
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
   1 x Q-Flash Plus button
   1 x reset button
   1 x reset jumper
   2 x temperature sensor headers
   1 x Clear CMOS jumper

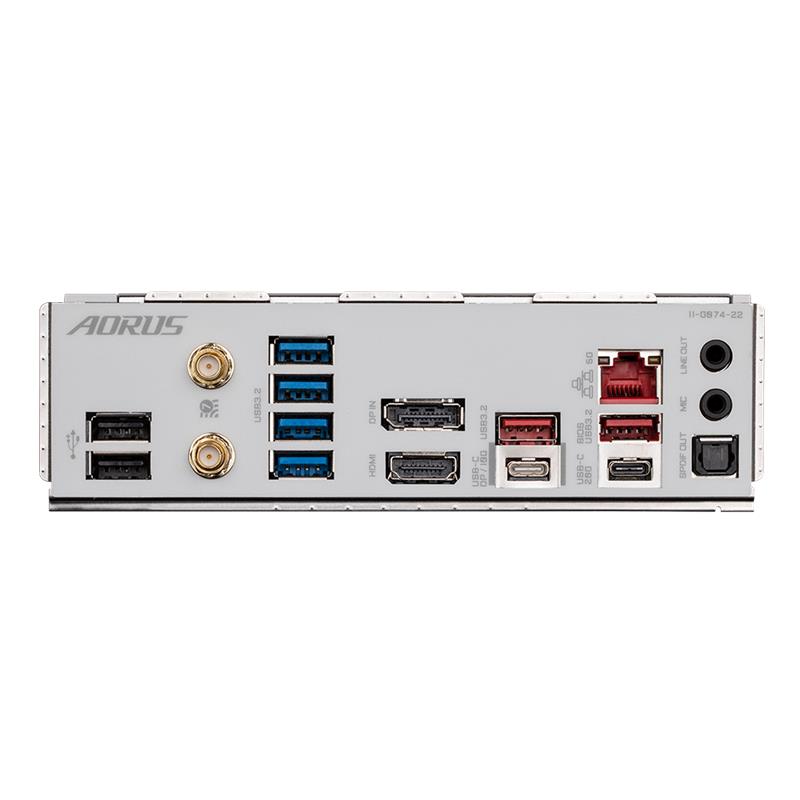

   Back Panel Connectors
   2 x USB 2.0/1.1 ports
   2 x SMA antenna connectors (2T2R)
   4 x USB 3.2 Gen 1 ports
   1 x DisplayPort In port
   1 x HDMI port
   2 x USB 3.2 Gen 2 Type-A ports (red)
   1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
   1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
   1 x RJ-45 port
   1 x optical S/PDIF Out connector
   2 x audio jacks
   I/O Controller
   iTE® I/O Controller Chip
   H/W Monitorin
