Popis produktu:

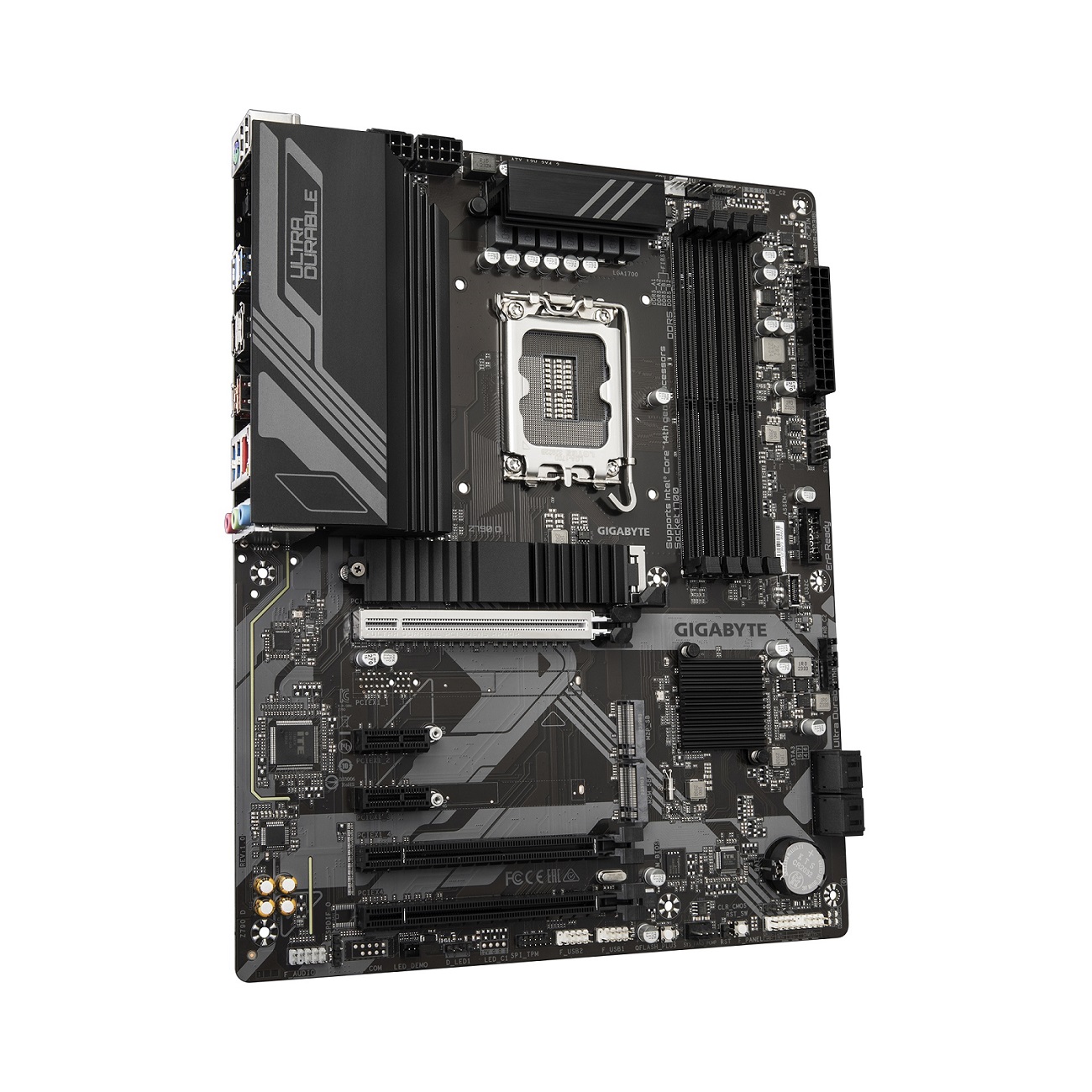

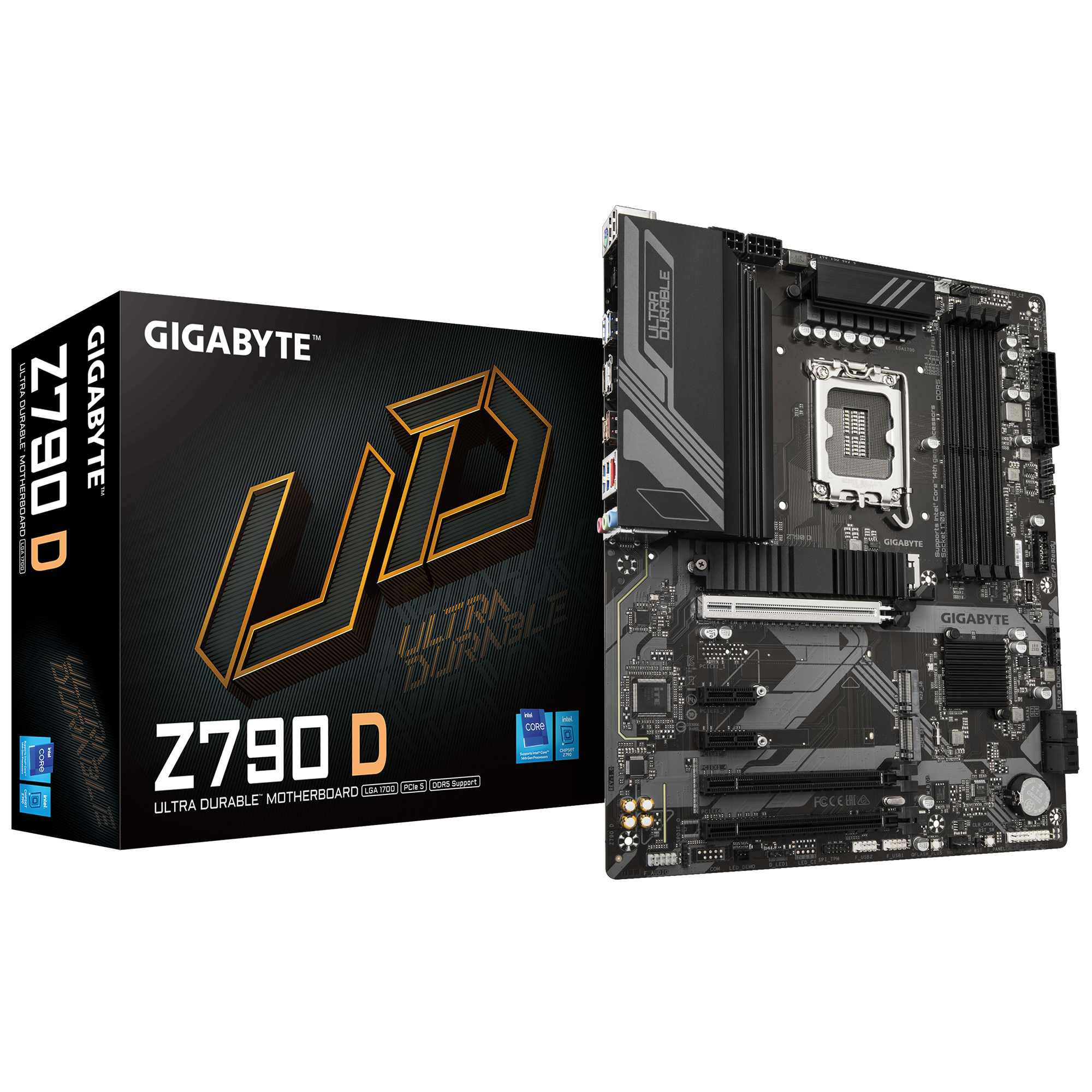

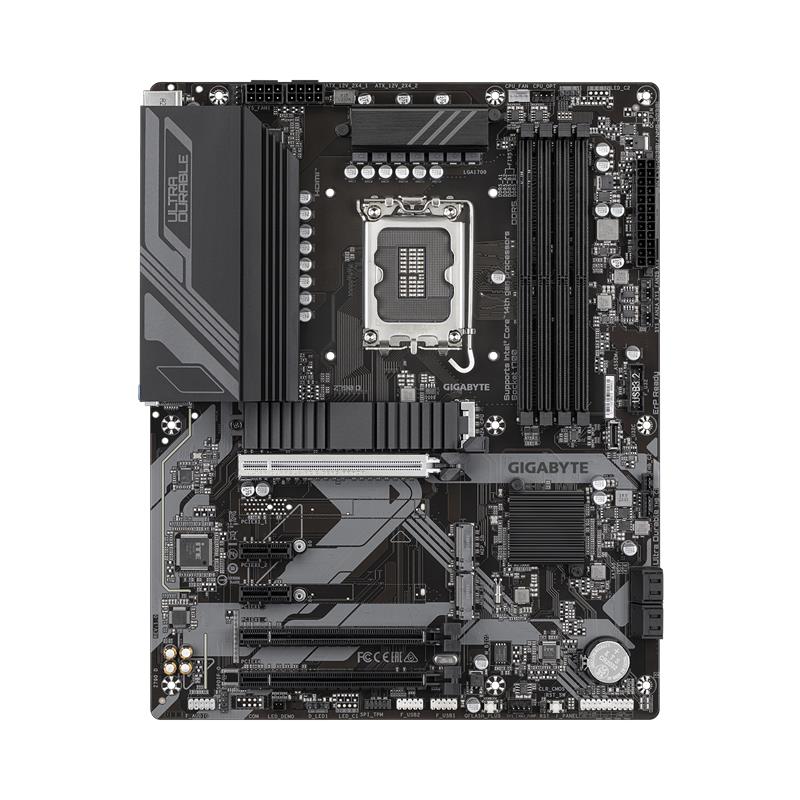

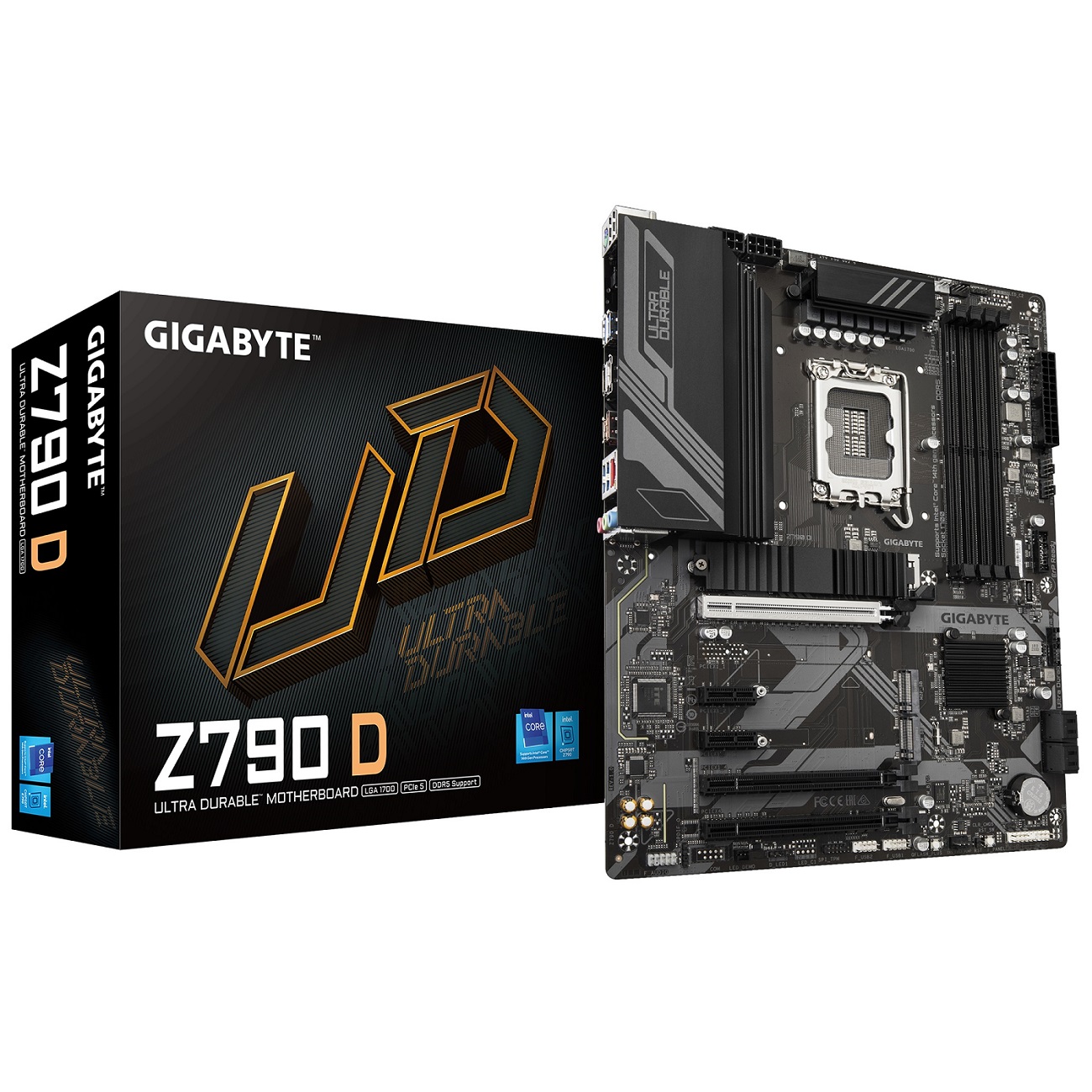

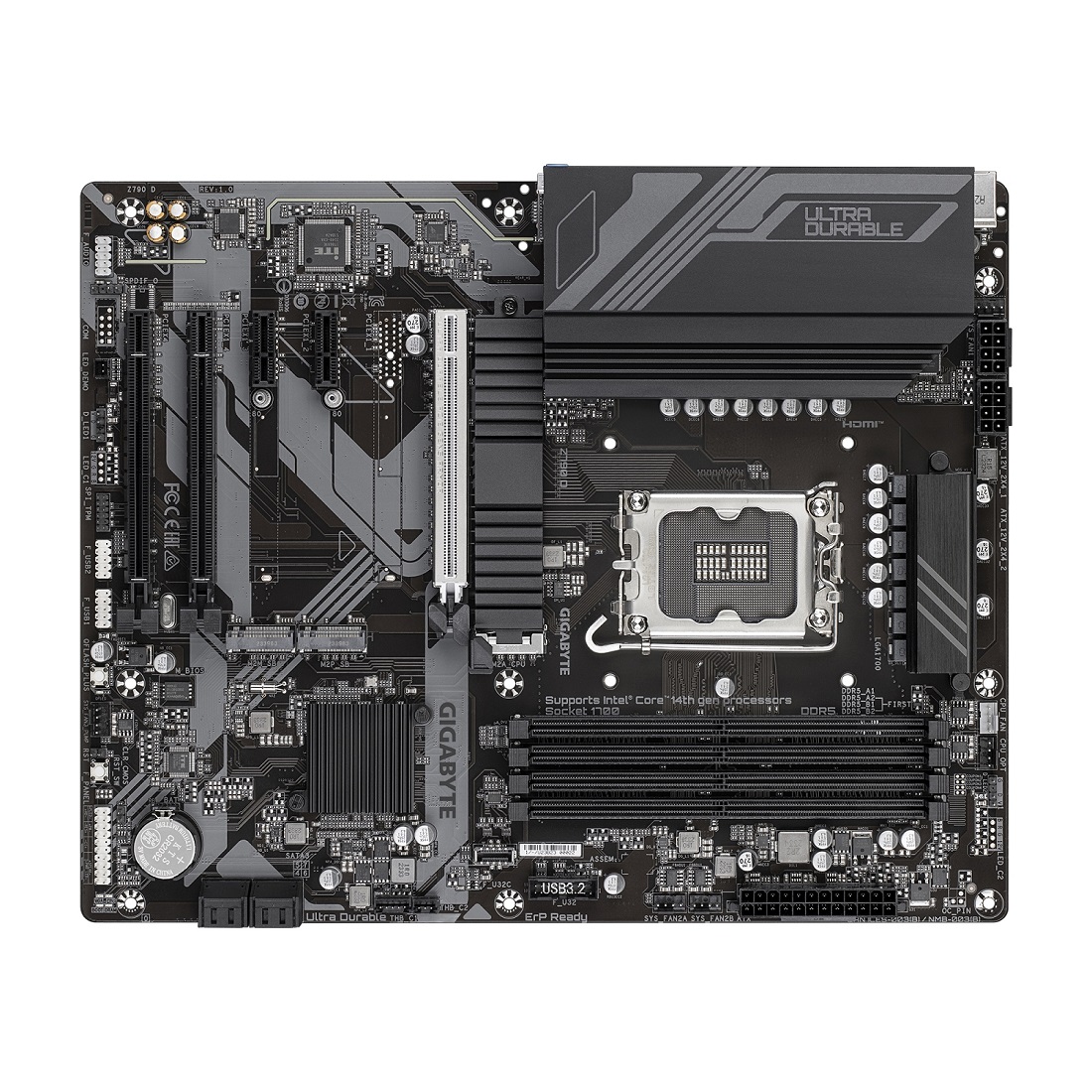

Z790 D

   Supports Intel® Core™ 14th/ 13th /12th processors
   Unparalleled Performance:Twin 12*+1+1 Phases Digital VRM Solution
   Dual Channel DDR5:4*DIMMs with XMP 3.0 Memory Module Support
   Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
   Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
   EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design
   Fast Networks:2.5GbE LAN
   Extended Connectivity:DP, HDMI, Rear USB-C® 10Gb/s
   Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
   Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

   CPU
   LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
   (Go to GIGABYTE's website for the latest CPU support list.)
   L3 cache varies with CPU
   Chipset
   Intel® Z790 Express Chipset
   Memory
   14th and 13th Generation Intel® Core™ i9/i7 Pocessors:
   - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules
   13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
   - Support for DDR5 4800/4400 MT/s memory modules
   4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
   Dual channel memory architecture
   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for Extreme Memory Profile (XMP) memory modules
   (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
   Onboard Graphics
   Integrated Graphics Processor-Intel® HD Graphics support:
   - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support for native HDMI 2.1 TMDS compatible ports.

   - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

   * Support for DisplayPort 1.2 version and HDCP 2.3

   (Graphics specifications may vary depending on CPU support.)
   Audio
   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel

   * You can change the functionality of an audio jack using the audio software. To configure

   7.1-channel audio, access the audio software for audio settings.
   Support for S/PDIF Out
   LAN
   Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
   Expansion Slots
   CPU:
   - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

   * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
   Chipset:
   - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
   - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
   - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
   Storage Interface
   CPU:
   - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
   Chipset:
   - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
   - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
   - 4 x SATA 6Gb/s connectors
   RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
   RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
   USB
   Chipset:
   - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
   - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
   - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
   - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
   - 2 x USB 2.0/1.1 ports on the back panel
   Chipset+USB 2.0 Hub:
   - 4 x USB 2.0/1.1 ports, available through the internal USB headers
   Internal I/O Connectors
   1 x 24-pin ATX main power connector
   2 x 8-pin ATX 12V power connectors
   1 x CPU fan header
   1 x CPU fan/water cooling pump header
   3 x system fan headers
   1 x system fan/water cooling pump header
   2 x addressable LED strip headers
   3 x M.2 Socket 3 connectors
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x S/PDIF Out header
   1 x USB Type-C® header, with USB 3.2 Gen 1 support
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   2 x Thunderbolt™ add-in card connectors
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
   1 x reset button
   1 x Q-Flash Plus button
   1 x reset jumper
   1 x Clear CMOS jumper

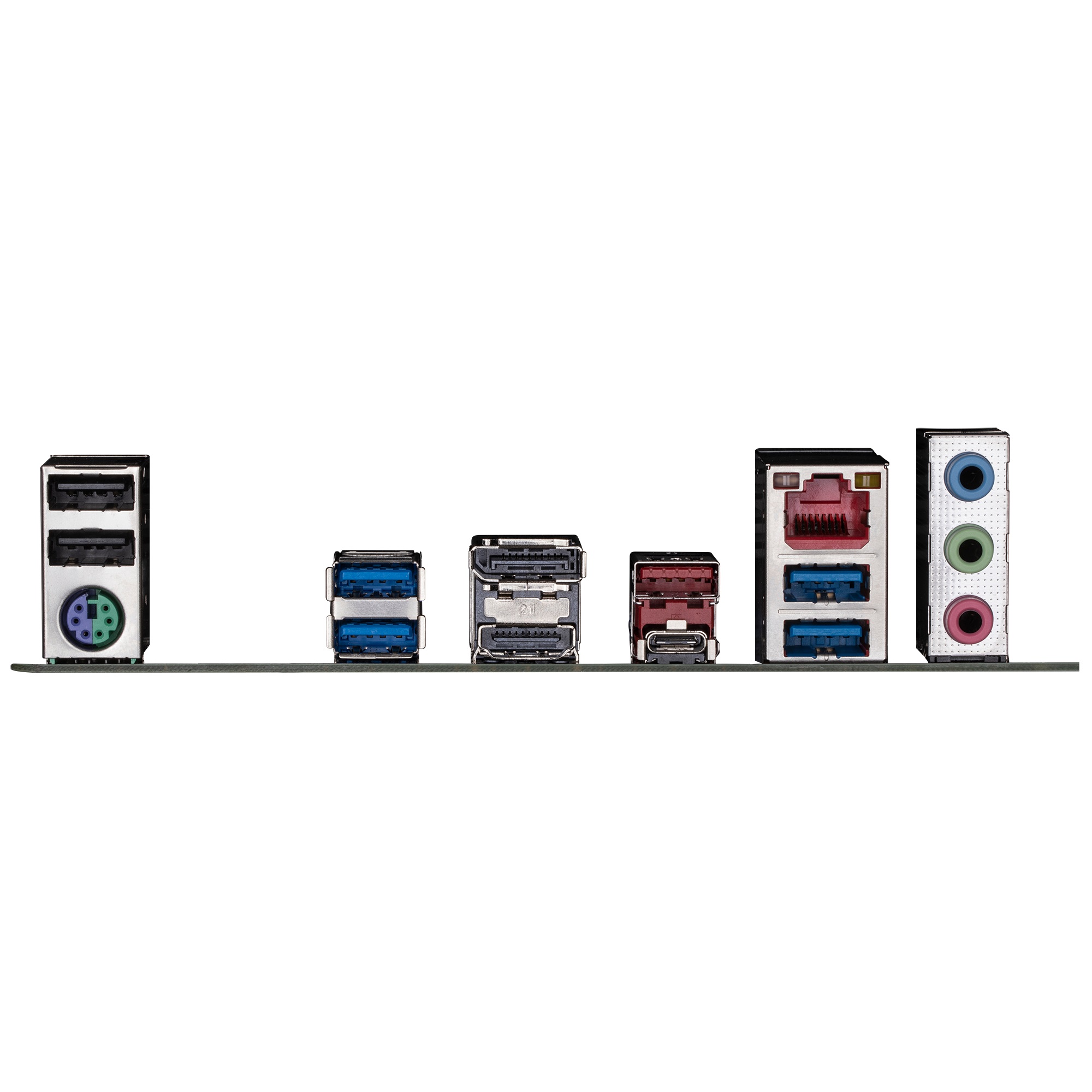

   Back Panel Connectors
   1 x PS/2 keyboard/mouse port
   1 x USB Type-C® port, with USB 3.2 Gen 2 support
   1 x USB 3.2 Gen 2 Type-A port (red)
   4 x USB 3.2 Gen 1 ports
   2 x USB 2.0/1.1 ports
   1 x HDMI port
   1 x DisplayPort
   1 x RJ-45 port
   3 x audio jacks
   I/O Controller
   iTE® I/O Controller Chip
   H/W Monitoring
   Voltage detection
   Temperature detection
   Fan speed detection
   Water cooling flow rate detection
   Fan fail warning
   Fan speed control

   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
   BIOS
   1 x 256 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
   Unique Features
   Support for GIGABYTE Control Center (GCC)

   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   Support for Q-Flash
   Support for Q-Flash Plus
   Support for Smart Backup
   Bundled Software
   Norton® Internet Security (OEM version)
   LAN bandwidth management software
   Operating System
   Support for Windows 11 64-bit
   Support for Windows 10 64-bit
   Form Factor
   ATX Form Factor; 30.5cm x 24.4cm
