Popis produktu:

Status  Launched
Launch Date  Q1'15
Expected Discontinuance  Q1'20
Limited 3-year Warranty  Yes
Extended Warranty Available for Purchase (Select Countries)  Yes
# of QPI Links  2
Compatible Product Series  Intel® Xeon® processor E5-2600 v3 product family
Board Form Factor  SSI EEB 12" x 13"
Chassis Form Factor  Rack or Pedestal
Socket  Socket R3
Integrated Systems Available  No
Integrated BMC with IPMI  IPMI 2.0 with OEM extensions
Rack-Friendly Board  Yes
Embedded Options Available  No
TDP  145 W
Included Items  (1) Intel® Server Board S2600CWT, I/O shield, 2 SATA cables, Quick Start User’s Guide, Attention document, and configuration labels
Recommended Customer Price  N/A
Datasheet  Link

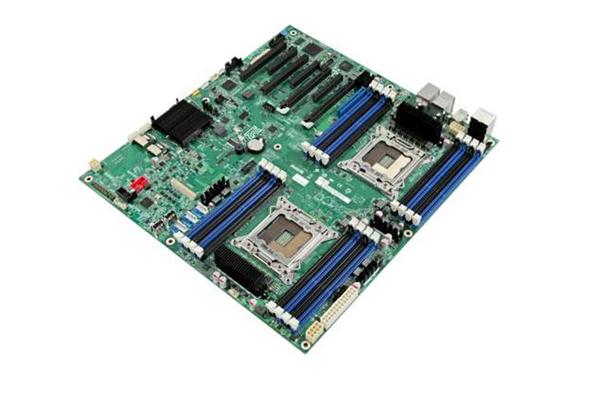

Description  A general purpose server board supporting two Intel® Xeon® processor E5-2600 V3 family up to 145W, 16 DIMMs, and two 10-Gb ethernet ports
Target Market  Embedded
Additional Information URL  Link



-
Memory Specifications
Max Memory Size (dependent on memory type)  1024 GB
Memory Types  DDR4 ECC RDIMM 1600/1866/2133, DDR4 ECC LRDIMM 1600/1866/2133
Max # of Memory Channels  8
Max Memory Bandwidth  136 GB/s
Physical Address Extensions  46-bit
Max # of DIMMs  16
ECC Memory Supported ‡  Yes



-
Graphics Specifications
Integrated Graphics ‡  Yes
Graphics Output  VGA
Discrete Graphics  Supported



-
Expansion Options
PCI Express Revision  3.0
Max # of PCI Express Lanes  84
PCIe x8 Gen 3  1
PCIe x16 Gen 3  4
PCIe x4 Gen 2.x  1



-
I/O Specifications
USB Revision  2.0 & 3.0
# of USB Ports  7
Total # of SATA Ports  10
RAID Configuration  PCH SATA 6G, ESRT2 RAID 0,1,10
# of Serial Ports  1
# of LAN Ports  2
Integrated LAN  2x 10-GbE
Firewire  No
Embedded USB (eUSB) Solid State Drive Option  Yes
Integrated SAS Ports  0
Integrated InfiniBand*  No



-
Package Specifications
Max CPU Configuration  2
Low Halogen Options Available  See MDDS



-
Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡  Yes
Intel® Remote Management Module Support  Yes
Intel® Node Manager  Yes
TPM Version  1.2
Intel® Quick Resume Technology  No
Intel® Quiet System Technology  No
Intel® HD Audio Technology  No
Intel® Matrix Storage Technology  No
Intel® Rapid Storage Technology  No
Intel® Rapid Storage Technology enterprise  Yes
Intel® Fast Memory Access  Yes
Intel® Flex Memory Access  Yes
Intel® I/O Acceleration Technology  Yes
Intel® Advanced Management Technology  Yes
Intel® Server Customization Technology  Yes
Intel® Build Assurance Technology  Yes
Intel® Efficient Power Technology  Yes
Intel® Quiet Thermal Technology  Yes



-
Intel® Data Protection Technology
AES New Instructions  Yes



-
Intel® Platform Protection Technology
Trusted Execution Technology ‡  No
