SPECIFICATIONS




Essentials



Status

Launched



Launch Date

Q2'13



Limited 3-year Warranty

Yes



Extended Warranty Available for Purchase (Select Countries)

Yes



# of QPI Links

1



Board Form Factor

uATX



Chassis Form Factor

Rack



Socket

LGA1150



Integrated Systems Available

Yes



Integrated BMC with IPMI

Yes



Rack-Friendly Board

Yes



Embedded Options Available

Yes



Max TDP

95 W



Included Items

Intel® Server Board S1200V3RPMwith (4)SATA Cables, (1)Intel® Server Deployment & Management DVD, (1) attention document, (1) Quick Start User’s Guide



Recommended Customer Price

N/A



Description

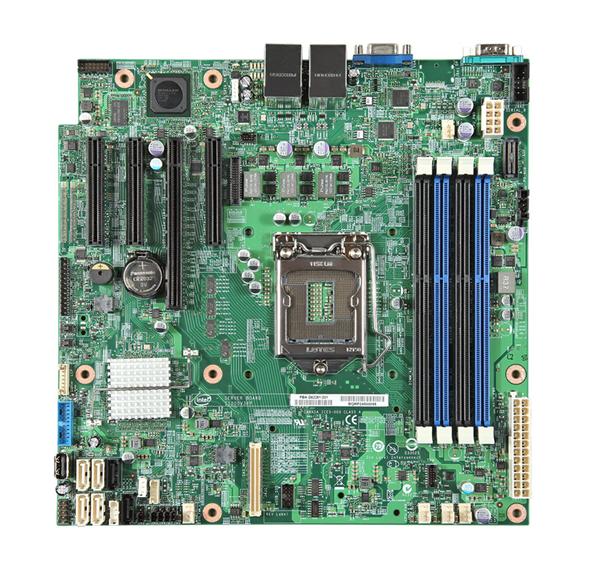

Intel® Server Board S1200V3RPM with Intel® C226 chipset, supports supports 4 UDIMM sockets with two channel native 1600MHz



Target Market

Small Business/1st Server



Additional Information URL

Link





Memory Specifications



Max Memory Size (dependent on memory type)

32 GB



Memory Types

DDR3L ECC UDIMM 1333/1600 MT/s



# of Memory Channels

2



Max Memory Bandwidth

25.6 GB/s



# of DIMMs

4



ECC Memory Supported ‡

Yes





Graphics Specifications



Integrated Graphics ‡

Yes



Graphics Output

VGA



# of Displays Supported ‡

2





Expansion Options



PCI Express Revision

3.0



Max # of PCI Express Lanes

16



PCIe x8 Gen 3

1



Connector for Intel® I/O Expansion Module

1



Connector for Intel® Integrated RAID Module

1





I/O Specifications



USB Revision

3.0 & 2.0



# of USB Ports

4



Total # of SATA Ports

6



RAID Configuration

Intel® RST (0, 1, 10, 5)



# of Serial Ports

1



# of LAN Ports

2



Integrated LAN

Dual 1GbE



Embedded USB (eUSB) Solid State Drive Option

Yes





Package Specifications



Max CPU Configuration

1



Low Halogen Options Available

See MDDS





Advanced Technologies



Intel® Virtualization Technology for Directed I/O (VT-d) ‡

Yes



Intel® Remote Management Module Support

Yes



TPM Version

TPM 1.2



Intel® Matrix Storage Technology

Yes



T

Yes



Intel® Server Customization Technology

Yes





Intel® Data Protection Technology



AES New Instructions

Yes
