Popis produktu:

Limited 3-year Warranty Yes
Extended Warranty Available for Purchase (Select Countries) Yes
# of QPI Links 1
Board Form Factor uATX
Chassis Form Factor Pedestal
Socket LGA1150
Integrated Systems Available Yes
Integrated BMC with IPMI Yes
Rack-Friendly Board Yes
Embedded Options Available No
Max TDP 95 W
Included Items Intel® Server Board S1200V3RPS with (4) SATA Cables, (1) Intel® Server Deployment & Management DVD, (1) attention document, (1) Quick Start User’s Guide

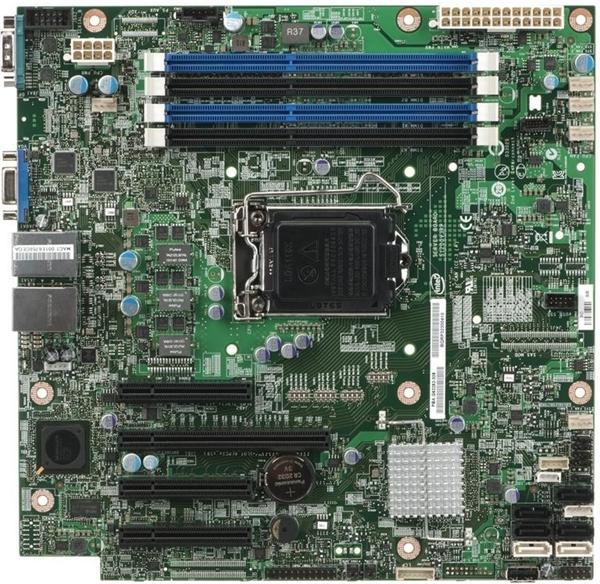

Description Intel® Server Board S1200V3RPS with Intel® C222 chipset, supports 4 UDIMM sockets with two channel native 1600MHz
Target Market Small Business/1st Server
Additional Information URL Link
Memory Specifications
Max Memory Size (dependent on memory type) 32 GB
Memory Types DDR3 ECC UDIMM 1333/1600 MT/s
# of Memory Channels 2
Max Memory Bandwidth 25.6 GB/s
# of DIMMs 4
ECC Memory Supported ‡ Yes
Graphics Specifications
Integrated Graphics ‡ Yes
Graphics Output VGA
Expansion Options
PCI Express Revision 3.0
Max # of PCI Express Lanes 16
PCIe x8 Gen 3 1
PCIe x1 Gen 2.x 1
PCIe x4 Gen 2.x 1
PCIe x8 Gen 2.x 1
Connector for Intel® I/O Expansion Module 1
I/O Specifications
USB Revision 3.0 & 2.0
# of USB Ports 4
Total # of SATA Ports 6
RAID Configuration Intel® RST (0, 1, 10, 5)
# of Serial Ports 1
# of LAN Ports 2
Integrated LAN Dual 1GbE
Embedded USB (eUSB) Solid State Drive Option Yes
Package Specifications
Max CPU Configuration 1
Low Halogen Options Available See MDDS
Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
TPM Version TPM 1.2
Intel® Matrix Storage Technology Yes
T Yes
Intel® Server Customization Technology Yes
Intel® Data Protection Technology
AES New Instructions Yes
