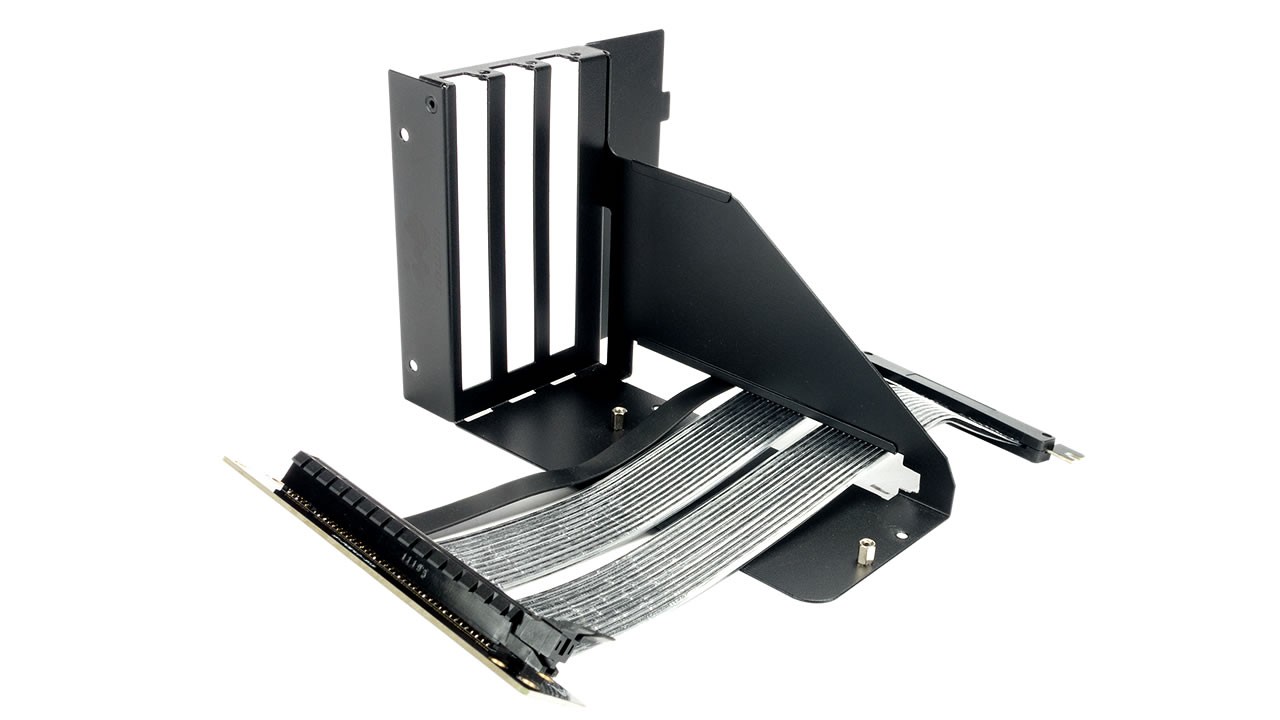

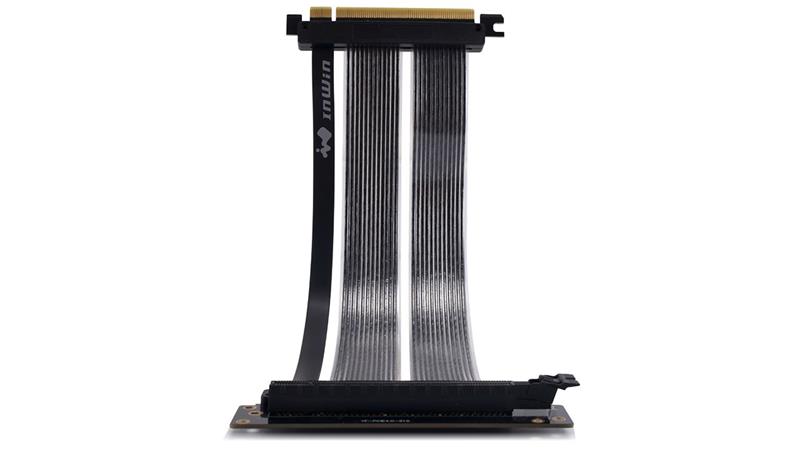

InWin Riser Cable & Bracket
PCI-E 4.0x16
90 Degree Right Angle Riser Adapter Card

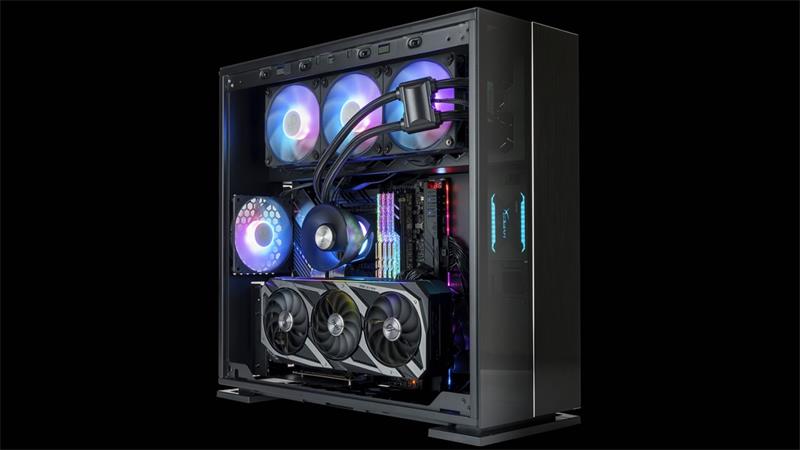

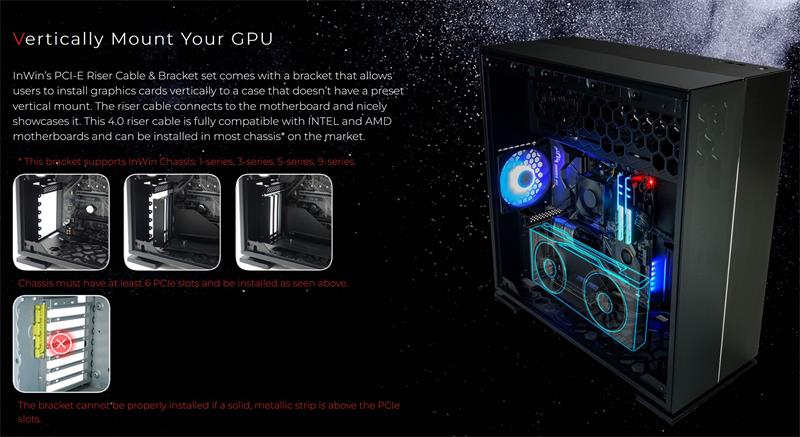

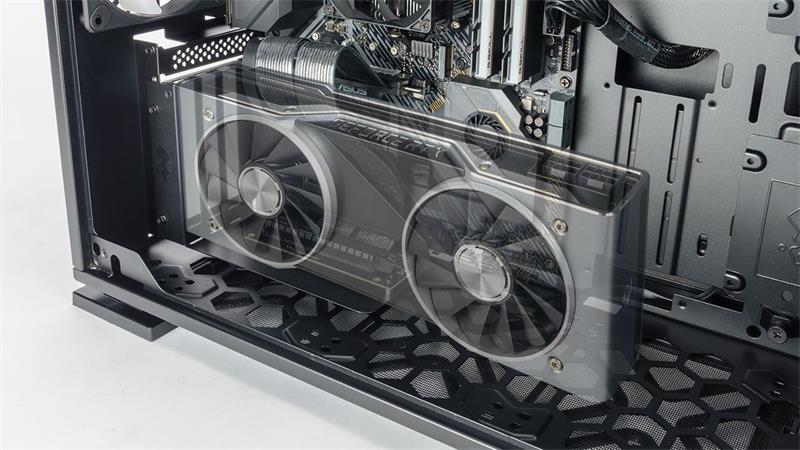

Vertically Mount Your GPU

InWin’s PCI-E Riser Cable & Bracket set comes with a bracket that allows users to install graphics cards vertically to a case that doesn’t have a preset vertical mount. The riser cable connects to the motherboard and nicely showcases it. This 4.0 riser cable is fully compatible with INTEL and AMD motherboards and can be installed in most chassis* on the market.
* This bracket supports InWin Chassis: 1-series, 3-series, 5-series, 9-series.
Chassis must have at least 6 PCIe slots and be installed as seen above.
The bracket cannot be properly installed if a solid, metallic strip is above the PCIe slots.

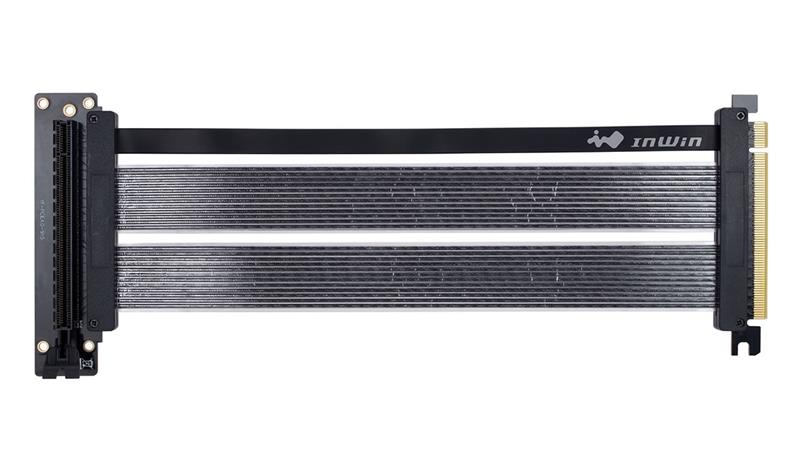

Latest Gen 4.0 Cable for Faster Transmission Speeds

The latest PCI-E riser cable 4.0 x 16 supports transfer rates of 16GB/s. While providing double the bandwidth of PCI-E 3.0, the Gen 4.0 riser cable remains backwards-compatible with a maximum transfer speed and offers great performance.
*This PCI-E 4.0 x 16 riser cable allows connections to RTX 3000 series, RTX 3080, RTX 3090 FE, as well as, RX 5700XT and the new RX 6000 GPUs.
* BEFORE using,
1. Measure the distance between your motherboard, PCI-E slots, and GPU connection to confirm if this 4.0 riser cable will reach.
2. Update your motherboard bios to the latest version.
3. Update your GPU software to the latest version.
4. Check that your motherboard settings in BIOS is set for 4.0. Some software won’t automatically switch and failure to do so won’t allow your PC to boot properly.

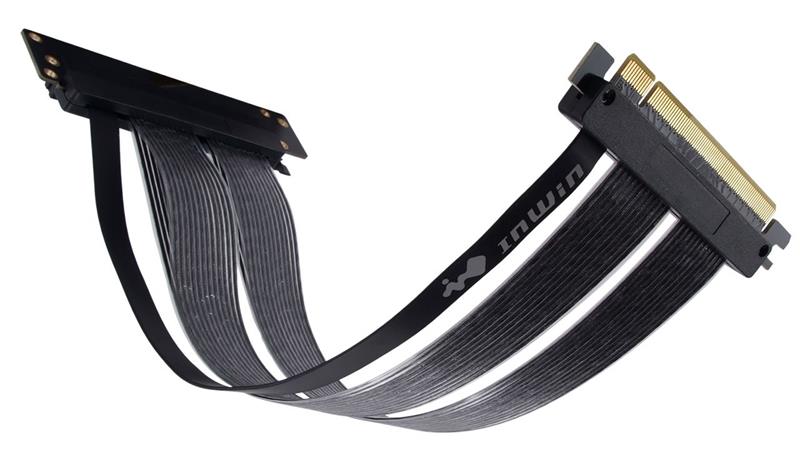

Flexible Design Allows for Easier Cable Routing
The InWin PCI-E riser cable is flexible, highly routable and can be positioned in any suitable direction.
* Please ensure no shorts have occurred due to poor PCI card placement.
* To prevent from damaging the cable, please do not fold the PCI-E cable during installation

Best Connectivity and Long Durability
The InWin PCI-E Gen 4 riser cables have foiled cables for high-frequency impedance & EMI gold-plated contacts for the best connectivity and longer lifespan.

Specifications
Model InWin PCI-E Riser Cable & Bracket
Part Number IW-PCIE4-25-BRACKET
Interface PCI-E 4.0 x16
90 Degree Right Angle Riser Adapter Card

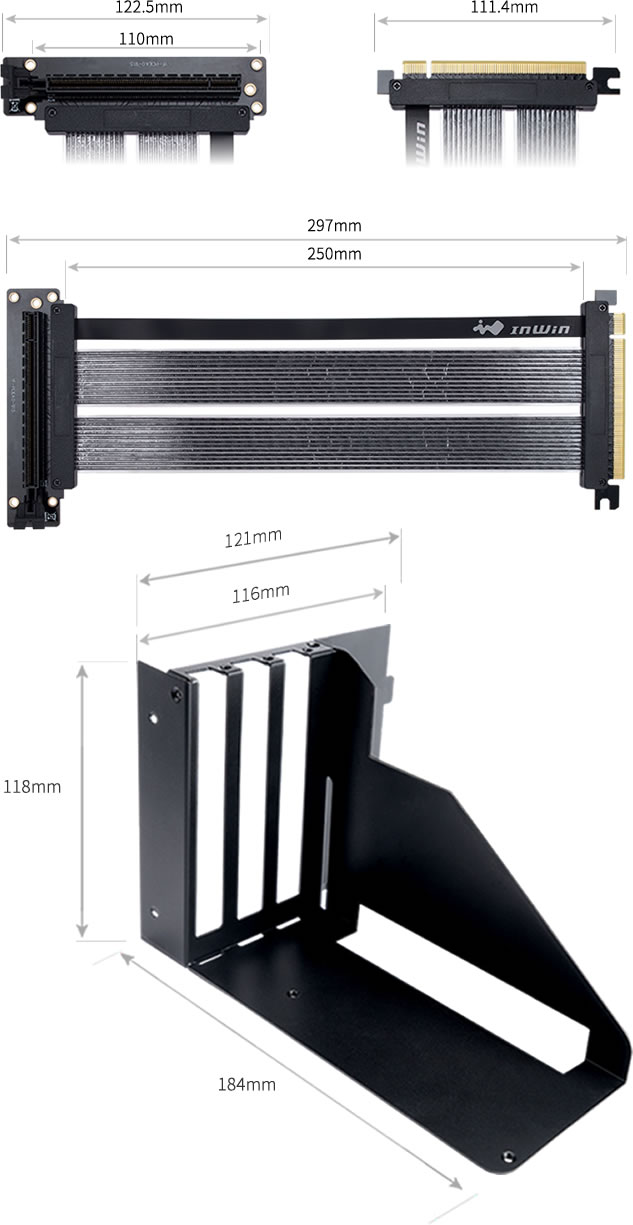

Cable Length 250mm
Materials SECC
PCB
FR4
Polyethylene(PE)
Copper Alloy
Temperature Range (°C) -20 ~ 80 °C
Net Weight 0.44 KG
Gross Weight 0.48 KG

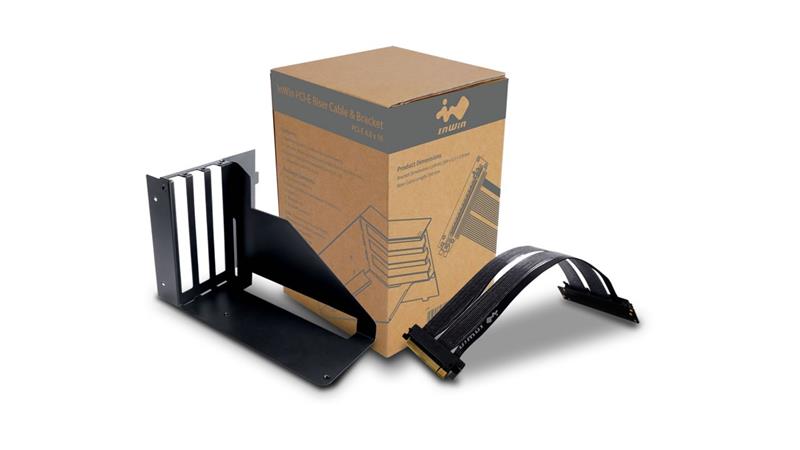

Package Contents

   PCI-E Riser Cable x1
   Vertical Graphics Card Adaptor Bracket x1
   Screws x5
   Standoffs x3
   Standoff Socket x1

* Our products comply with RoHS regulations.
* Specifications may vary based on different regions.
