Popis produktu:

7Y48A007EA Xeon E-2124G 4+2C 71W 3.4GHz 1x 8GB Onboard AHCI 4 drive bays  2x 2TB HDD Slim DVD-RW  + 3.5-in bay No 250W  No v2.0 Option


Machine type
7Y49 - 1 year warranty
7Y48 - 3 year warranty

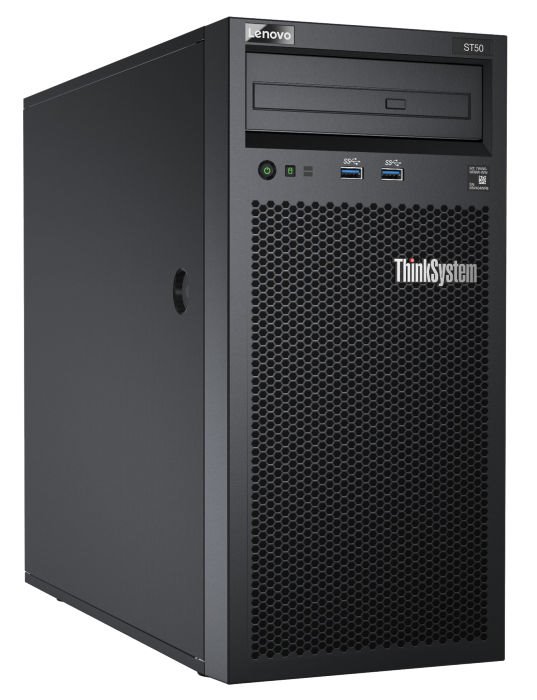

Form factor
Tower or 4U rack

Processor
One Intel processor (formerly codenamed "Coffee Lake"). Choose from:
•Intel Xeon E-2100 Series processor up to 3.8 GHz
•Intel Core i3-8100/8300 Series processor up to 4 GHz
•Intel Pentium G5400/G5500/G5600 Series processor up to 3.9 GHz
•Intel Celetron G4900 Series processor up to 3.2 GHz

Chipset
Intel C246 chipset

Memory
Four DIMM sockets supporting Lenovo TruDDR4 DIMMs at 2666 MHz. Support ECC UDIMMs. For China customers, the server supports non-ECC DIMMs (ECC and non-ECC cannot be mixed).

Memory maximums
Up to 64 GB with 4x 16 GB UDIMMs

Memory protection
Error-correcting code (ECC)

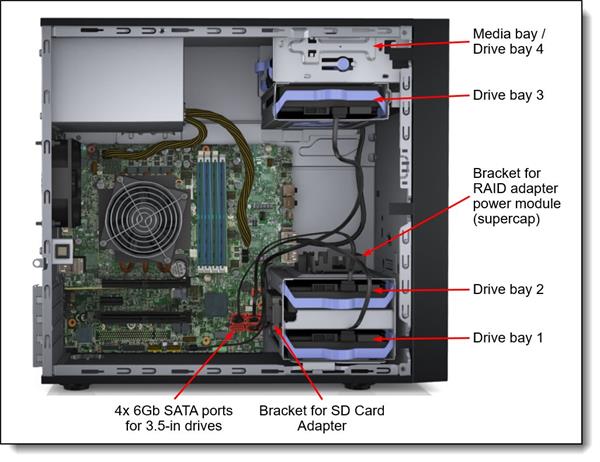

Disk drive bays
Up to 4x 3.5-inch non-hot swap (NHS) drive bays.
Bays 1-3 only support 3.5" HDD or SSD drives; Bay 4 supports one of the following configurations:
•3.5-inch non-hot-swap HDD or SSD in a 5.25-inch conversion tray
•Half-high optical drive (either DVD-ROM or DVD-RW)
•Half-high backup unit (either LTO tape or RDX drive)
•Combination 3.5-inch non-hot-swap HDD or SSD plus a slim optical DVD-RW
The server can be configured without any HDDs or SSDs. The server also supports 2x SD Cards installed in an optional SD Card Adapter (RAID not supported).

Maximum internal storage
•Using HDDs: 32 TB using 4x 8TB SATA HDDs
•Using SSDs: 3.84 TB using 4x 960GB SATA SSDs
HDDs and SSDs can be installed in the same server but are not supported in the same RAID volume

Storage controller
•Onboard 6 Gb SATA controller, supporting AHCI mode (non-RAID) or Intel RSTe software RAID (RAID 0, 1, 10, 5)
•12 Gb RAID controller: ?RAID 530i (cacheless) supports RAID 0, 1, 10, 5 (planned support in 1Q/2019)
?RAID 730-8i with 1GB cache supports RAID 0, 1, 10, 5
?RAID 930-8i with 2GB flash-backed cache supports RAID 0, 1, 10, 5, 6
•12 Gb Host Bus Adapter: ?430-8i SAS/SATA 12Gb HBA

Media drive bay
One half-height 5.25-inch bay for optical or tape drive. Supports DVD-ROM or DVD-RW. Mutually exclusive with the fourth HDD/SSD.

Network interfaces
One integrated Gigabit Ethernet 1000BASE-T port (RJ-45) using Intel i219-LM controller.

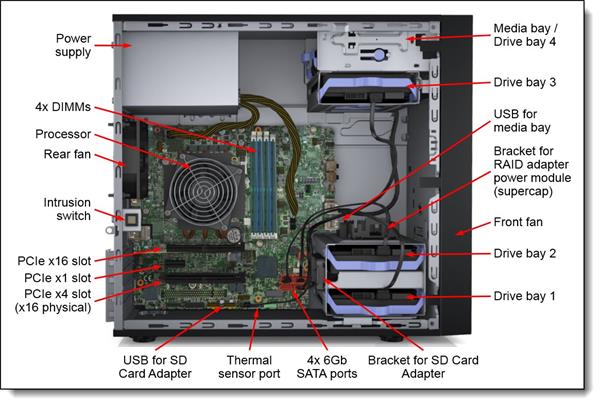

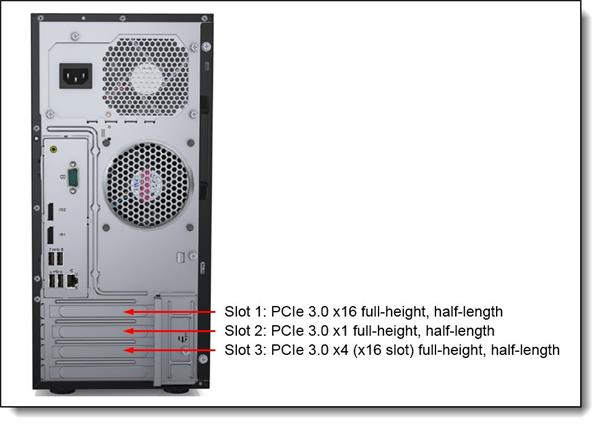

PCI Expansion slots
Three PCIe slots as follows:
•Slot 1: PCIe 3.0 x16 full-height half-length (FHHL)
•Slot 2: PCIe 3.0 x1 full-height half-length (FHHL)
•Slot 3: PCIe 3.0 x4 (physical connector is x16) full-height half-length (FHHL)

Ports

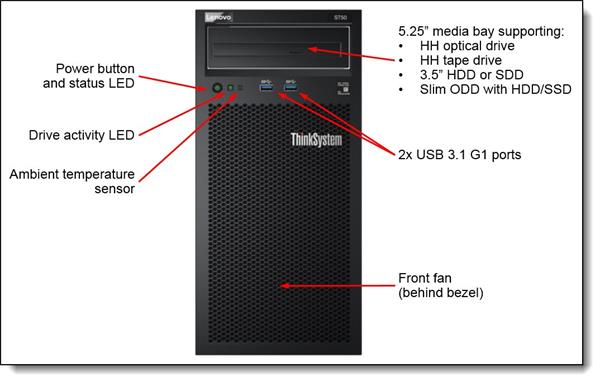

Front ports:
•Two USB ports (both are USB 3.1 G1)

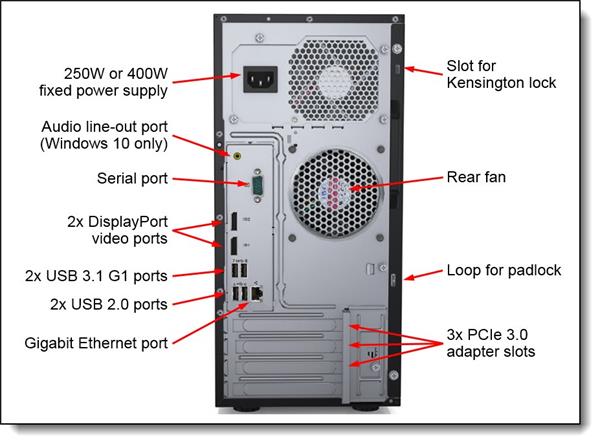

Rear ports:
•Four USB ports (two USB 3.1 G1, two USB 2.0)
•Two DisplayPort video ports (require a processor with integrated graphics)
•One RJ-45 Gigabit Ethernet port
•One serial port
•One audio line-out ports (Windows 10 only; some line noise is possible)

Cooling
Supports ASHRAE A2 and ASHRAE B environments. Two fixed system fans. Additional fans attached to the processor, in the power supply, and in the optional media bay enclosure.

Power supply
One fixed power supply, either 250W or 400W power supply. 80 PLUS Platinum certified.

Hot-swap parts
None

Systems management
Power and drive activity LEDs. Intel Active Management Technology (AMT) 12.0 server management. Supports Integrated Lenovo XClarity Provisioning Manager Lite (USB memory key-based) for system setup and firmware upgrades.

Security features
Power-on password, administrator's password, Trusted Platform Module (TPM), supporting TPM 1.2 or TPM 2.0. Optional Chassis intrusion switch. Padlock loop and Kensington cable slot for physical security.

Video
Integrated Intel Graphics Technology (Intel GT) on most processors - see the Processors section. Two DisplayPort ports. Maximum resolution is 3840 x 2160 pixels (4K) at a refresh rate of 60Hz. On servers with a processor that does not have integrated graphics, the two DP ports are not connected and a separate GPU adapter is required. See GPU adapters for details.

Operating systems supported
Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi. See the Operating system support section for specifics.

Limited warranty
Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).

Service and support
Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications.

Dimensions Height: 375 mm (14.8 in), width: 175 mm (6.9 in), depth: 407 mm (16.0 in) Weight Minimum: 7.5 kg (16.5 lb), maximum: 11.2 kg (24.7 lb)
