Popis produktu:

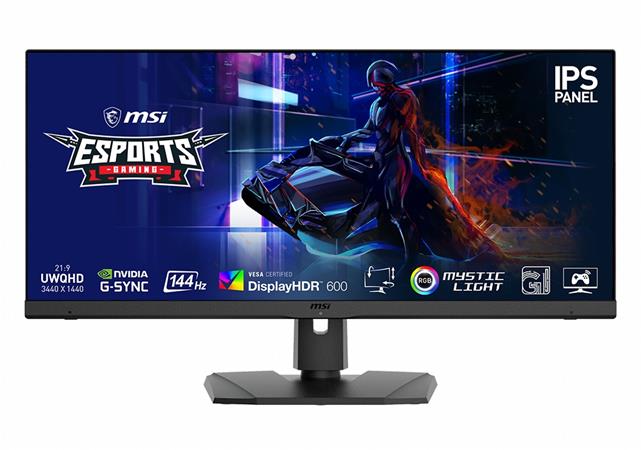

MSI Gaming monitor Optix MPG341QR, 34"/3440 x 1440 /IPS, 144Hz/1ms/1000:1/550cd / m2 /2xHDMI/DP/USB-C/USB

MKT Name Optix MPG341QR
Entity MKT Name
MKT Spec Optix MPG341QR
Website Name Optix MPG341QR
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 34" (86.36 cm)
Active Display Area (mm) 799.8 (H) x 334.8 (V)
Curvature Flat
Panel Type IPS
Resolution 3440x1440 (UWQHD)
Pixel pitch (mm) 0.2325(H)x0.2325(V)
Aspect Ratio 21:9
Dynamic Refresh Rate technology G-SYNC Compatible
Dynamic Refresh Rate Activated Range 48Hz-144Hz
HDR (High dynamic range) HDR 400
SDR Brightness (nits) 550
HDR Brightness (Peak nits) 600
Contrast Ratio 1000:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency 72~216 KHz(H) / 48~144 Hz(V)
Refresh Rate 144HZ
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 4ms
Response Time (Tr + Tf) 10ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 106.8% / 82.5%
NTSC (CIE1931 area percentage/overlap) 83.8% /75.8%
sRGB (CIE1976 area percentage/overlap) 122.5% /99.4%
sRGB (CIE1931 area percentage/overlap) 118.3%/99.8%
Adobe RGB (CIE1976 area percentage/overlap) 105% /88.2%
Adobe RGB (CIE1931 area percentage/overlap) 87.7% /80.8%
DCI-P3 (CIE1976 area percentage/overlap) 97.6%/91.5%
DCI-P3 (CIE1931 area percentage/overlap) 87.2%/85.4%
Rec.709 (CIE1976 area percentage/overlap) 122.5%/99.4%
Rec.709 (CIE1931 area percentage/overlap) 118.3%/99.8%
Rec.2020 (CIE1976 area percentage/overlap) N/A
Rec.2020 (CIE1931 area percentage/overlap) N/A
Quantum Dot N/A
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits (8 bits + FRC)
Note_DP 3440 x1440 (Up to 144Hz)
Note_HDMI 3440 x 1440 (Up to 100Hz)
Note_DVI N/A
I/O Ports
HDMI 2
HDMI version 2.0
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in N/A
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A 2
USB 2.0 Type B 1
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader N/A
Lock type Kensington Lock
Speaker NA
Webcam NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type External Adapter 20V 6A
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 40
Annual Energy Consumption (KWh) 40
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating G
Adapter's KC safety Number N/A
Power Cord Type C5
QC Output NA
QC Output Power NA
PD Output NA
PD Output Power NA
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 100 mm
Adjustment (Pivot) NA
VESA Mounting 100x100mm
Frameless Design Yes
Pallet
pcs/Carton
pallet Q'ty (by air) pcs 12
Q'ty/20cy (by air) pcs 120
Q'ty/40cy (by air) pcs 252
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 125
Net Weight (by air) kg 21.24
Gross Weight (by air) kg 177.24
pallet Q'ty (by sea) pcs 18
Q'ty/20cy (by sea) pcs 180
Q'ty/40cy (by sea) pcs 378
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 125
Net Weight (by sea) kg 21.24
Gross Weight (by sea) kg 177.24
Inside Carton Dimension (WxDxH)
Inside Carton Dimension (WxDxH) (mm) 947 x 181 x 640
Inside Carton Dimension (WxDxH) (inch) 37.28 x 7.13 x 25.2
Outer Carton Dimension (WxDxH)
Outer Carton Dimension (WxDxH) (mm) 962 x 196 x 665
Outer Carton Dimension (WxDxH) (inch) 37.87 x 7.72 x 26.18
Product Dimension with Stand (WxDxH)
Product Dimension with Stand (WxDxH) (mm) 817.40 x 252.26 x 422.70
Product Dimension with Stand (WxDxH) (inch) 32.18 x 9.93 x 16.64
Product Dimension without Stand (WxDxH)
Product Dimension without Stand (WxDxH) (mm) 817.40 x 65.24 x 374.20
Product Dimension without Stand (WxDxH) (inch) 32.18 x 2.57 x 14.73
Stand Dimension (WxDxH)
Stand Dimension (WxDxH) (mm) 119.04 x 138.11 x 372.79
Stand Dimension (WxDxH) (inch) 4.69 x 5.44 x 14.68
Weight
Weight (Net kg) 9.38
Weight (Net lbs) 20.68
Weight (Gross kg) 13.8
Weight (Gross lbs) 30.42
Weight Without Stand (kg) 7.95
Weight Without Stand (lbs) 17.53
Accessories
DisplayPort Cable 1
HDMI Cable 1
DVI Cable 0
USB Type A to Type B Cable 1
USB Type C to Type A Cable 0
USB Type C to Type C Cable 1
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable N/A
Power Cord 1
AC Adaptor 1
Quick Guide 1
Warranty Card 1
Mouse Bungee Unit 1
VESA Screw 4
Switch Case N/A
Portable Screen Protection Case N/A
Monitor Hood N/A
Speaker (Accessories) N/A
Model Info
Series Name Gaming
Segment Name MPG
Segment Name2 MPG341Q
Segment Name3 MPG341QR
Barcode Info
EAN 4719072779658
