Popis produktu:

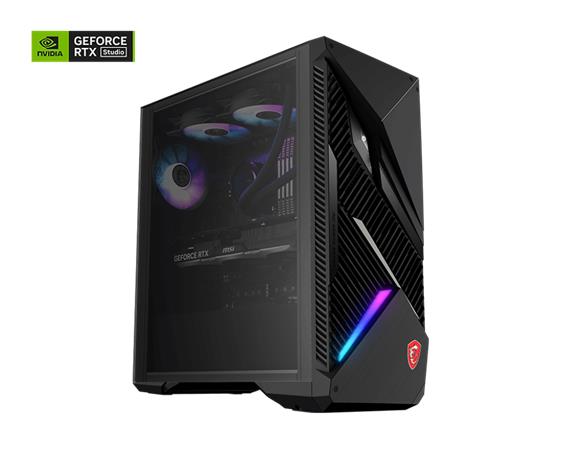

MSI MPG Infinite X2 14NUF7-470EU/i7-14700KF/32GB/2TB SSD/RTX 4070 Ti Ventus 3X, 12GB OC/BT/WiFi/Win 11 home

MKT Spec MPG Infinite X2 14NUF7-470EU
Website Name MPG Infinite X2 14th
Color ID1/Black-Black-Black
System/Barebone System
Processor
CPU Core Name RAPTOR LAKE REFRESH
CPU Socket LGA-1700pin
CPU Number Intel Core i7 Processor 14700KF
CPU Clock 3.4GHz
CPU Cores 20
TDP 125W
CPU Cooler Liquid cooling
Max Turbo Frequency up to 5.60 GHz
Cache 33 MB Intel® Smart Cache
Threads 28
Chipset
Chipsets Z790
MB Ori. MKT Name MS-7E06
Graphics
GPU1 Vendor -
GPU1 MKT Name GeForce RTX 4070 Ti
GPU1 Number RTX 4070 Ti VENTUS 3X
GPU1 VRAM Size 12G
VGA I/O Port -
VGA MKT Name GeForce RTX 4070 Ti VENTUS 3X 12G OC
Memory
Memory Size 32GB(16GB*2)
Memory Type DDR5 SDRAM
Memory Speed 2800(5600)MHz
Module Type U-DIMM
Memory Slot 2
Memory Slot(Total) 4
Memory Slot(Free) 2
Max Capacity Max 128GB
Storage
SSD Interface PCIe GEN4x4 w/o DRAM NVMe
SSD Form Factor M.2-2280 M-KEY
SSD Config 2TB*1
SSD Size 2TB
HDD1 Interface N/A
HDD1 Form Factor N/A
HDD1 Size N/A
HDD1 RPM N/A
ODD(Type) N/A
ODD Height N/A
ODD Type N/A
mSATA slots N/A
mSATA slots(Total) NA
mSATA slots(Free) 0
M.2 slots 1
M.2 slots(Total) 4
M.2 slots(Free) 3
2.5" Drive Bays N/A
2.5" Drive Bays(Total) 2
2.5" Drive Bays (Free) 2
3.5" Drive Bays N/A
3.5" Drive Bays(Total) 2
3.5" Drive Bays(Free) 2
Communications
LAN Intel I225-LM
WLAN INTEL/AX211.NGWG.NV
WLAN Version Wi-Fi 6E+BT
BT Version 5,3
VESA
VESA size NA
Audio
Audio Chipset Realtek ALC897
Audio Type 7.1 Channel HD Audio
Speaker NA
I/O Ports (Front)
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
USB 3.2 Gen 2 Type C 1
USB 3.2 Gen 2 Type A NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 1 Type A 2
USB 2.0 Type A NA
USB 2.0 Type C NA
Thunderbolt NA
Audio Mic-in 1
Audio Headphone-out 1
Audio Headphone-out (HiFi/SPDIF) NA
Mic-in/Headphone-out combo NA
Card Reader NA
I/O Ports (Rear)
USB 3.2 Gen 2x2 Type C (R) 1
USB 3.2 Gen 2x2 Type A (R) NA
USB 3.2 Gen 2 Type C (R) NA
USB 3.2 Gen 2 Type A (R) 1
USB 3.2 Gen 1 Type C (R) NA
USB 3.2 Gen 1 Type A (R) 2
USB 2.0 Type C (R) NA
USB 2.0 Type A (R) 4
Thunderbolt (R) NA
RJ45 1
WiFi Antenna 2
Card Reader (R) NA
VGA out NA
VR-Link NA
HDMI out 1x (v2.1)
DP out 1x (v1.4)
mini DP in NA
mini DP out NA
PS/2 1
COM Port NA
DVI-D out NA
Audio jack 6
S/PDIF NA
Flash BIOS Button 1
Power
Power 850W
Power Certification 80PLUS GOLD
Formfactor SFX
Type POWER SUPPLY
Operating Systems
OS MULTI-LANGUAGE(WIN 11 HOME ADVANCED OLC OA3)
OS Type W11MA
Operating Systems Windows 11 Home
Pallet
W/O KB Pallet Q'ty (by air) 12
W/O KB Pallet Q'ty (by sea) 20
W/KB Pallet Q'ty (by air) 12
W/KB Pallet Q'ty (by sea) 20
Dimension&Weight
Product Dimension (WxDxH) (mm) 215 x 429.6 x 489.6
Product Dimension (WxDxH) (inch) 8.46 x 16.91 x 19.28
Inside Carton Dimension (WxDxH) (mm) N/A
Inside Carton Dimension (WxDxH) (inch) N/A
Outer Carton Dimension Standard (WxDxH) (mm) 314 x 576 x 565
Outer Carton Dimension Standard (WxDxH) (inch) 12.36 x 22.68 x 22.24
Outer Carton Dimension with bundle item (WxDxH) (mm) 314 x 576 x 565
Outer Carton Dimension with bundle item (WxDxH) (inch) 12.36 x 22.68 x 22.24
Weight (Net kg) 14
Net Weight (lbs) 30,86
Weight (Gross kg) 16,2
Gross Weight (lbs) 35,71
Liter 34L
Pint 34L
Noise Level
Idle mode 25.9 dBA
Full loading mode 42.2 dBA
Warranty
Warranty 24months
SW Feature - 3rd Party Royalty
Nahimic Sound effect Y
HDMI Royalty Y
Mechanical and Environmental
Operating, Storage Temperature 0° C ~ 35° C ; -20° C ~ 60° C
Operating, Storage Humidity 0% ~ 85%;0% ~ 90%
Regulatory Compliance FCC(Class B), CB/CE, UL(CUL), BSMI, RCM(C-Tick)
Accessories
AC Adaptor N/A
Power Cord 1
Warranty Card N/A
Quick Guide 3
User Manual N/A
VESA Mount kit N/A
Keyboard N/A
Keyboard Interface N/A
Mouse N/A
Mouse Interface N/A
Model Info
Series Name Gaming
Segment Name Infinite
Segment Name2 MPG Infinite X2
Segment Name3 MPG Infinite X2 14NUF7
Barcode Info
EAN 4711377184496
