Popis produktu:

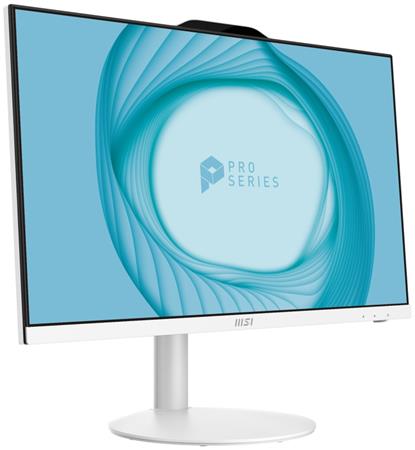

MSI PRO AP242 12M-008EU 23.8" IPS NT/1920x1080/i5-12400/8GB/512GB SSD/bílá/Win 11

MKT Spec PRO AP242 12M-008EU
Website Name PRO AP242 12M
Color ID1/White-White-White
System/Barebone System
Display
Screen Size 23.8" (60cm)
Active Display Area (mm) 527.04(H) x 296.46(V)
Curvature Flat
Panel Type IPS
Resolution 1920x1080 (FHD)
Pixel pitch 0.2745(H)X0.2745(V)
Brightness (nits) 250
Contrast Ratio 1200:01:00
Signal Frequency N/A
Response Time (GTG) 14ms
View Angles 178°(H)/178°(V)
Surface Treatment Anti-Glare
Touch Screen Non-touch
Display Colors 16.7M
Processor
CPU Core Name ALDER LAKE
CPU Socket LGA-1700pin
CPU Number Intel Core i5-12400
CPU Clock 2.5GHz
CPU Cores 6
TDP 65W
Max Turbo Frequency up to 4.40 GHz
Cache 18 MB Intel® Smart Cache
Threads 12
Chipset
Chipsets H610
Graphics
GPU1 Vendor N/A
GPU1 MKT Name N/A
GPU1 Number UMA
GPU1 VRAM Size
GPU1 VRAM Type
Memory
Memory Size 8GB(8GB*1)
Memory Type DDR4 SDRAM
Memory Speed 1600(3200)MHz
Module Type SO-DIMM
Memory Slot 1
Memory Slot(Total) 2
Memory Slot(Free)
Max Capacity Max 64GB
Storage
SSD Interface PCIe GEN3x4 w/o DRAM NVMe
SSD Form Factor M.2-2280 M-KEY
SSD Config 512GB*1
SSD Size 512GB
HDD1 Interface N/A
HDD1 Form Factor N/A
HDD1 Size N/A
HDD1 RPM N/A
ODD(Type) N/A
ODD Height N/A
ODD Type
mSATA slots N/A
mSATA slots(Total) NA
mSATA slots(Free)
M.2 slots 1
M.2 slots(Total) 1
M.2 slots(Free)
2.5" Drive Bays N/A
2.5" Drive Bays(Total) 1
2.5" Drive Bays (Free)
3.5" Drive Bays N/A
3.5" Drive Bays(Total) NA
3.5" Drive Bays(Free)
Communications
LAN Realtek RTL8111H
WLAN INTEL/AX201.NGWG.NVW
WLAN Version 802.11ax 2x2+BT
BT Version 5,2
I/O Ports (Side)
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
USB 3.2 Gen 2 Type C NA
USB 3.2 Gen 2 Type A NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 1 Type A NA
USB 2.0 Type A 2
Mic-in NA
Headphone-out NA
Headphone-out (HiFi / SPDIF) NA
Mic-in/Headphone-out combo NA
Card Reader NA
I/O Ports (Rear)
USB 3.2 Gen 2x2 Type C (R) NA
USB 3.2 Gen 2x2 Type A (R) NA
USB 3.2 Gen 2 Type C (R) 1
USB 3.2 Gen 2 Type A (R) 1
USB 3.2 Gen 1 Type C (R) NA
USB 3.2 Gen 1 Type A (R) 2
USB 2.0 Type C (R) NA
USB 2.0 Type A (R) NA
USB 2.0 Type A (Top) NA
RJ45 1
VGA out NA
HDMI out 1x (v1.4)
HDMI in NA
DP out 1x (v1.2)
mini DP out NA
Line-out (R)
PS/2 NA
COM Port 1
DVI-D out NA
Mic-in/Headphone-out combo (R) NA
Printer Port (Parallel) NA
Lock type Kensington
Input Device
Webcam NA
Audio
Audio Chipset Realtek ALC897
Audio Type 2.1 Channel HD Audio
Speaker 2 x 3W
Power
AC Adapter Output 120W
Battery N/A
Battery Whrs N/A
Operating Systems
OS MULTI-LANGUAGE(WIN 11 HOME OLC OA3)
OS Type W11M
Operating Systems Windows 11 Home
Pallet
Pallet Q'ty (by air) 20cy x10pcs, 40cy x21pcs
Pallet Q'ty (by sea) N/A
Dimension&Weight
Product Dimension with Holder (WxDxH) (mm) N/A
Product Dimension with Holder (WxDxH) (inch) N/A
Product Dimension with Stand (WxDxH) (mm) 541.9 x 227.9 x 425.5
Product Dimension with Stand (WxDxH) (inch) 21.33 x 8.97 x 16.75
Inside Carton Dimension with Holder (WxDxH) (mm) N/A
Inside Carton Dimension with Holder (WxDxH) (inch) N/A
Inside Carton Dimension with Stand (WxDxH) (mm) 620 x 223 x 486
Inside Carton Dimension with Stand (WxDxH) (inch) 24.41 x 8.78 x 19.13
Outer Carton Dimension with Holder (WxDxH) (mm) N/A
Outer Carton Dimension with Holder (WxDxH) (inch) N/A
Outer Carton Dimension with Stand (WxDxH) (mm) 640 x 243 x 508
Outer Carton Dimension with Stand (WxDxH) (inch) 25.2 x 9.57 x 20
Weight (Net kg) 4,63
Weight (Net lbs) 10,21
Weight (Gross kg) 8
Weight (Gross lbs) 17,64
STAND
Adjustment (Tilt) -5°~20°(+/-2°)
Adjustment (Swivel) N/A
Adjustment (Height) N/A
Adjustment (Pivot) N/A
SW Feature - 3rd Party Royalty
Nahimic 2 N/A
HDMI Royalty Y
Mechanical and Environmental
Operating, Storage Temperature 0° C ~ 35° C ; -20° C ~ 60° C
Operating, Storage Humidity 0% ~ 85%;0% ~ 90%
Regulatory Compliance FCC(Class B)
CB/CE
UL(CUL)
BSMI
Accessories
AC Adaptor 1
Power Cord 1
Warranty Card N/A
Quick Guide 3
User Manual N/A
VESA Mount kit N/A
Keyboard RF1430W
Keyboard Interface WIRELESS
Mouse MA04W
Mouse Interface WIRELESS
Model Info
Series Name Pro
Segment Name PRO
Segment Name2 AP242
Segment Name3 AP242 12M
