Popis produktu:

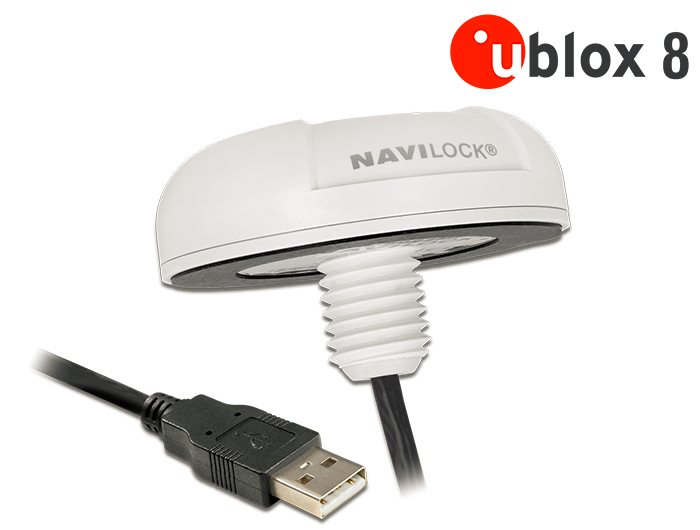

The USB 2.0 multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a laptop and a suitable routing software for navigation. The NL-8022MU GNSS receiver is especially designed for installation on a white ground (boat, camper, bus etc.) It is unremarkable and fits into the vehicle concept due to its housing design.

Specifikace
• Connector: USB 2.0 type A male
• u-blox 8 UBX-M8030-KT chipset
• Frequency:
 GPS: L1, 1575.4200 MHz
 GLONASS: L1, 1602.5625 ~ 1615.5000 MHz
 BEIDOU COMPASS: B1, 1561.0980 MHz
 GALILEO E1, 1575.4200 MHz
 QZSS L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online/offline,
 SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Auto Baud Rate up to 115200 bps
• Update rate:
 single GNSS: 18 Hz (e.g. GPS solo)
 multi GNSS: 10 Hz (e.g. GPS+GLONASS)
• Sensibility max. –167 dBm
• IPX7 protection class
• Operating temperature: -20 °C ~ +60 °C
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and
 2 m CEP with SBAS
• Cable length: ca. 4.5 m
• Dimensions (O x H without screw thread): ca. 62 mm x 21 mm

Systémové požadavky
• Windows Vista/7/8/8.1/10, Linux Kernel 2.6
• PC or laptop with a free USB type A port

Obsah balení
• USB 2.0 Empfänger
• Befestigungsmaterial: Mutter und Unterlegscheibe Edelstahl
• Treiber CD
• Bedienungsanleitung auf CD ROM

Balení
• Box
