Popis produktu:

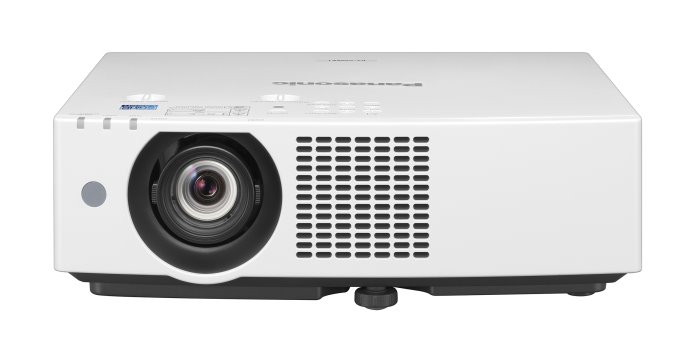

Laserový projektor Panasonic PT-VMZ61

3LCD instalační prjektor
Rozlišení 1920x1200 (WUXGA)
Světelný výkon: 6 200 ANSI Lm
Lampa s životností až 20 000 hodin
Throw ratio 1.09-1.77:1

PROJECTOR TYPE: LCD projector
LCD  Panel
Panel size: 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
Display System: Transparent LCD panel (x 3, R/G/B)
Drive Method: Active matrix
pixels: 2,304,000 (1920 x 1200) pixels
Light source: Laser diodes
Light output: 6,200 lm
Time until light output declines to 50 %: 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO)
Resolution: WUXGA (1920 x 1200 pixels)
Contrast ratio: 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
Screen size (diagonal): 0.76–7.62 m (30–300 in), 16:10 aspect ratio
Center-to-corner zone ratio*1 85 %
Lens: 1.6x manual zoom (throw ratio: 1.09–1.77:1), manual focus lens, F 1.60–2.12, f 15.30–24.64 mm
LENS SHIFT (From the origin point of the lens mounter)
Vertical: +44 %, 0 % (manual)
Horizontal : +20 %, -20 % (manual)
Keystone correction range Vertical: ±25 °, Horizontal: ±35 °
Installation: Ceiling/floor, front/rear, free 360-degree installation
TERMINALS
HDMI IN: HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p*4 signal input), CEC supported
Computer 1 In: D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Computer 2 In: D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
AUDIO 1/2 IN: M3 stereo mini-jack x 2
Variable Audio Out: M3 stereo mini-jack x 1
Serial In: D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
DIGITAL LINK/LAN : RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control), (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], HDCP, Deep Color, 4K/30p*4 signal input)
LAN: RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2]
USB(VIEWER/WIRELESS/DC OUT): USB connector (Type A) x 1 for Memory Viewer function, optional Wireless Module AJ-WM50 Series, power supply (DC 5 V, maximum 2 A*5)
POWER SUPPLY AC 100 V–240 V, 50/60 HZ
Max. Power consumption: 370 W
Cabinet materials: Molded plastic
Filter*6 Included (Estimated maintenance time: approx. 20,000 hours)
Operation noise: 36 dB (NORMAL/ECO), 26 dB (QUIET)
Dimensions (W x H x D)
399 mm x 115 mm x 348 mm (15 23/32˝ x 4 17/32˝ x 13 11/16˝ ) (not including protruding parts)
399 mm x 133 mm x 348 mm (15 23/32˝ x 5 1/4˝ x 13 11/16˝ ) (with feet at shortest position)
Weight with supplied lens: Approx. 6.9 kg (15.21 lbs)
Operating environment: Operating temperature: 0–45 °C (32–113 °F)*8*9, Operating humidity: 20–80 % (no condensation)
Applicable software: Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows®*10, Wireless Projector App for iOS/Android™*11
