Popis produktu:

SPECIFICATION
Graphics Engine RX 7600 8G-L/OC
Video Memory 8GB GDDR6
Stream Processor 2048 Units
Engine Clock(OC) up to 2280MHz(Game)
up to 2695MHz(Boost)
Engine Clock(STD/Silent) up to 2250MHz(Game)
up to 2655MHz(Boost)
Memory Clock 18.0 Gbps
Memory Interface 128-bit
DirectX® Support 12
Bus Standard PCIE 4.0

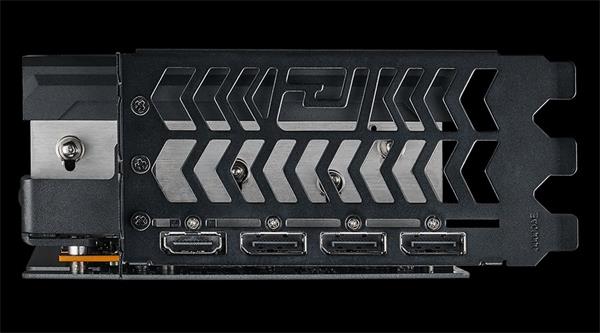

Standard Display Connectors 1 x HDMI 2.1,3 x DisplayPort 2.1
(only 2x simultaneous DP2.1 connections can be supported)
Customized Specifications
Product Remark 'Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
'Boost Clock' is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
Feature Support
OpenGL Support
AMD Stream Technology Support
AMD Eyefinity Technology Support
AMD Smart Access Memory Support
For more infromation, please refer AMD Website.
Maximum Resolution
VGA
DVI
DisplayPort 4096x2160
HDMI 4096x2160
Power Specs + Board Dimensions
Board Dimensions 223mm*132mm*45mm
234mm*149mm*45mm(with bracket)
Minimum System Power requirement (W) 600W
Extension Power Connector One 8-Pin PCI Express Power Connector
