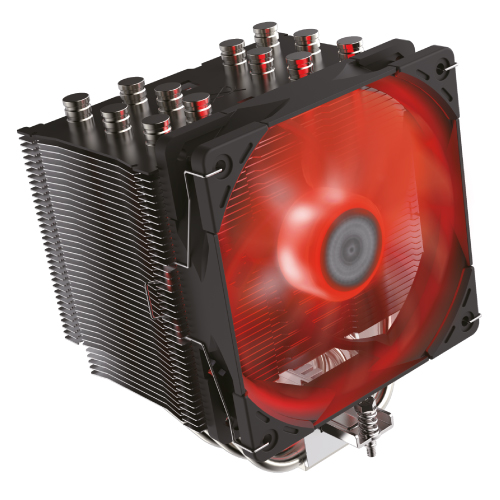

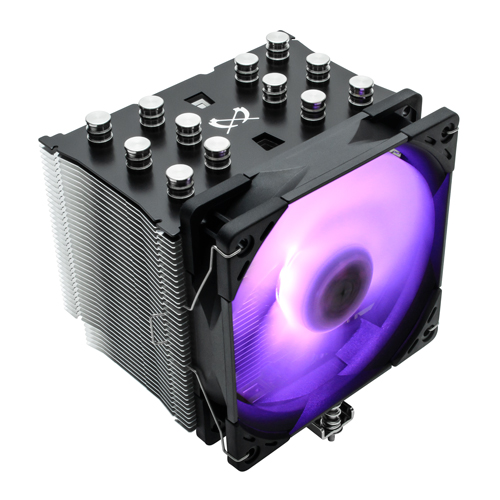

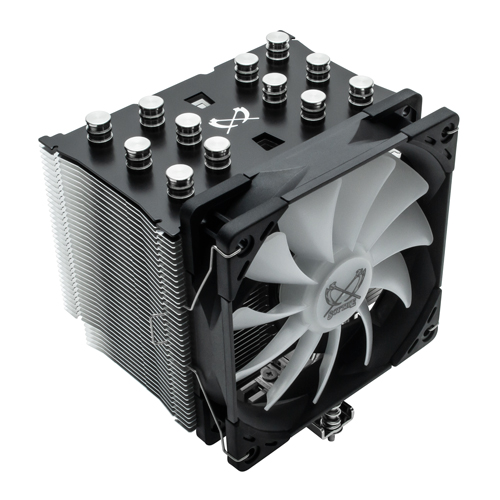

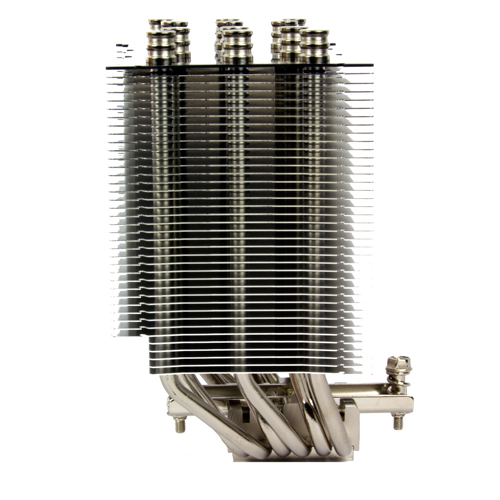

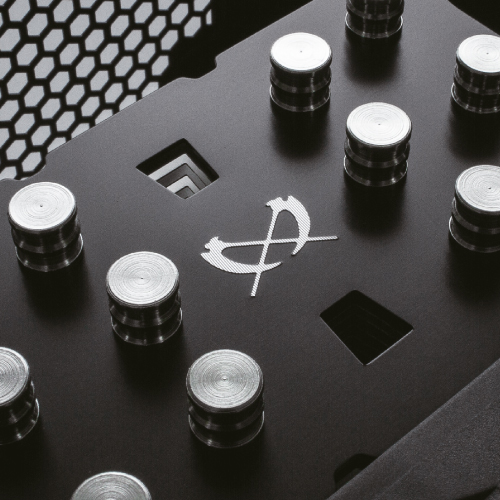

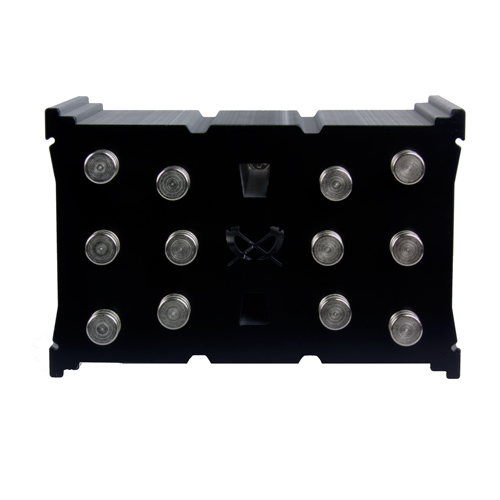

Mugen 5 Black RGB Edition¨ Jednoduchá elegance je mottem Mugen 5 Black RGB Edition. Černá eloxovaná horní deska vytváří ostrý kontrast k hliníkovým koncovkám tepelných trubek a diamantem řezanému logu Scythe. Rám ventilátoru je také zcela černý a dokonale zapadá do celkového designu, zatímco osvětlení RGB vytváří barevný akcent. Z technického hlediska má Mugen 5 Black RGB skóre s oceněnými výkonovými metrikami svých předchůdců. Pět tepelných trubek a základová deska vyrobená z poniklované mědi odvádějí teplo do prostorného chladiče. Ventilátor Kaze Flex 120 mm RGB PWM s rozsahem otáček 300 až 1200 ot / min je vybaven uzavřeným kapalinovým ložiskem (Sealed Precision FDB). To umožňuje extrémně hladký chod a průměrnou životnost 120 000 hodin. Osvětlení RGB ventilátoru používá 4pinové 5V připojení a lze jej ovládat pomocí odpovídající konektoru na základní desce. Podporovány jsou systémy RGB, jako je ASUSTM Aura Sync, ASRockTM RGB LED, MSITM Mystic Light Sync a GigabyteTM RGB Fusion. Simple elegance is the motto of the Mugen 5 Black RGB Edition. The black anodized top-plate forms a sharp contrast to the aluminum endcaps of the heatpipes and the diamond-cut Scythe logo. The fan frame is also completely black and fits seamlessly into the overall design, while the RGB lighting sets a colorful accent. On the technical side, the Mugen 5 Black RGB scores with the award-winning performance metrics of its predecessors. Five heatpipes and a baseplate made of nickel-plated copper, dissipate the heat into the spacious heat sink. The Kaze Flex 120 mm RGB PWM fan with a speed range from 300 to 1.200 RPM is equipped with a closed liquid bearing (Sealed Precision FDB). This enables extremely smooth running and an average lifespan of 120.000 hours. The RGB lighting of the fan uses a 4-pin 5V connection and can be controlled by the corresponding header on the mainboard. RGB systems, such as ASUSTM Aura Sync, ASRockTM RGB LED, MSITM Mystic Light Sync and GigabyteTM RGB Fusion are supported. Model Name: Mugen 5 Black RGB Edition Model Number: SCMG-5100BK EAN: 4717011055016 UPC: 812623021368 Compatibility: Intel®: Socket LGA775 Socket LGA1150 Socket LGA1151 Socket LGA1155 Socket LGA1156 Socket LGA1366 Socket LGA2011 / 2011-v3 (Square ILM) Socket LGA2066 AMD®: Socket AM2 Socket AM2+ Socket AM3 Socket AM3+ Socket AM4 Socket FM1 Socket FM2 Socket FM2+ Overall Dimensions WxHxD: 130 x 154,5 x 110 mm / 5,12 x 6,08 x 4,33 inch (including fan - more details) Weight: 890 g / 31,4 oz Accessory: Mounting parts for Intel and AMD sockets, fan, fan clips, thermal grease, installation manual. Baseplate Material / Heatpipes: Nickel-plated copper (additional information) Please note that an original backplate with screw mounting is needed for installation on mainboards with AMD sockets. Please check before buying if the backplate is fixed by screws (example)! If the backplate uses plastic-pins, mounting of this cooler is not possible. Fan Specifications Model Name: Kaze Flex 120 RGB PWM Dimensions: 120 x 120 x 27 mm / 4.72 x 4.72 x 1.06 inch Noise Level: 4 ~ 24,9 dBA Air Flow: 16,6 ~ 51.17 CFM / 28,2 ~ 86,93 m3/h Fan Speed: 300 (±200 rpm) ~ 1.200 rpm (±10%) (PWM-controlled) Static Pressure: 0,75 ~ 10,3 Pa / 0,076 ~ 1,05 mmH2O Bearing Type: Sealed Precision FDB Voltage: 12V MTTF: 120.000 Hours (25°C) Outstanding Design The stylish, black anodized aluminium top plate is embellished with and eye-catching diamond cut logo. The fan was outfitted with black rubber shock absorbers to keep them in tone with the overall design. Kaze Flex 120 RGB PWM Fan Our in-house designed Kaze Flex 120mm RGB PWM fan with a speed range of 300 to 1,200 RPM is used on the Mugen 5 black RGB Edition. This fan is characterized by a closed liquid storage (Sealed Precision FDB) and an average life of 120,000 hours. Thanks to the RGB LED lighting of the translucent fan blades, the fan offers a breathtaking visual accent. Rubberized contact surfaces have a decoupling effect and prevent the transmission of any vibrations that may occur. Asymmetrical Design Thanks to gently sloped heatpipes, the heat sink is not located directly above the bottom plate, but slightly offset to the rear. This asymmetrical design, in combination with a recess on the back of the heatsink, allows for unrestricted use of the memory banks. The high-quality cooper heatpipes and base-plate are completely nickel-plated. H.P.M.S. III Mounting System The cooler features the proven and easy-to-use Hyper Precision Mounting System III. A preassembled mounting bar simplifies the installation process, while spring-loaded screws prevent uneven pressure distribution. The mounting system supports all common sockets, including AMD®s AM4 and Intel®s Socket 2066. The Mugen 5 TUF Gaming Alliance package also includes an extra long screwdriver for easy mounting.
