Popis produktu:

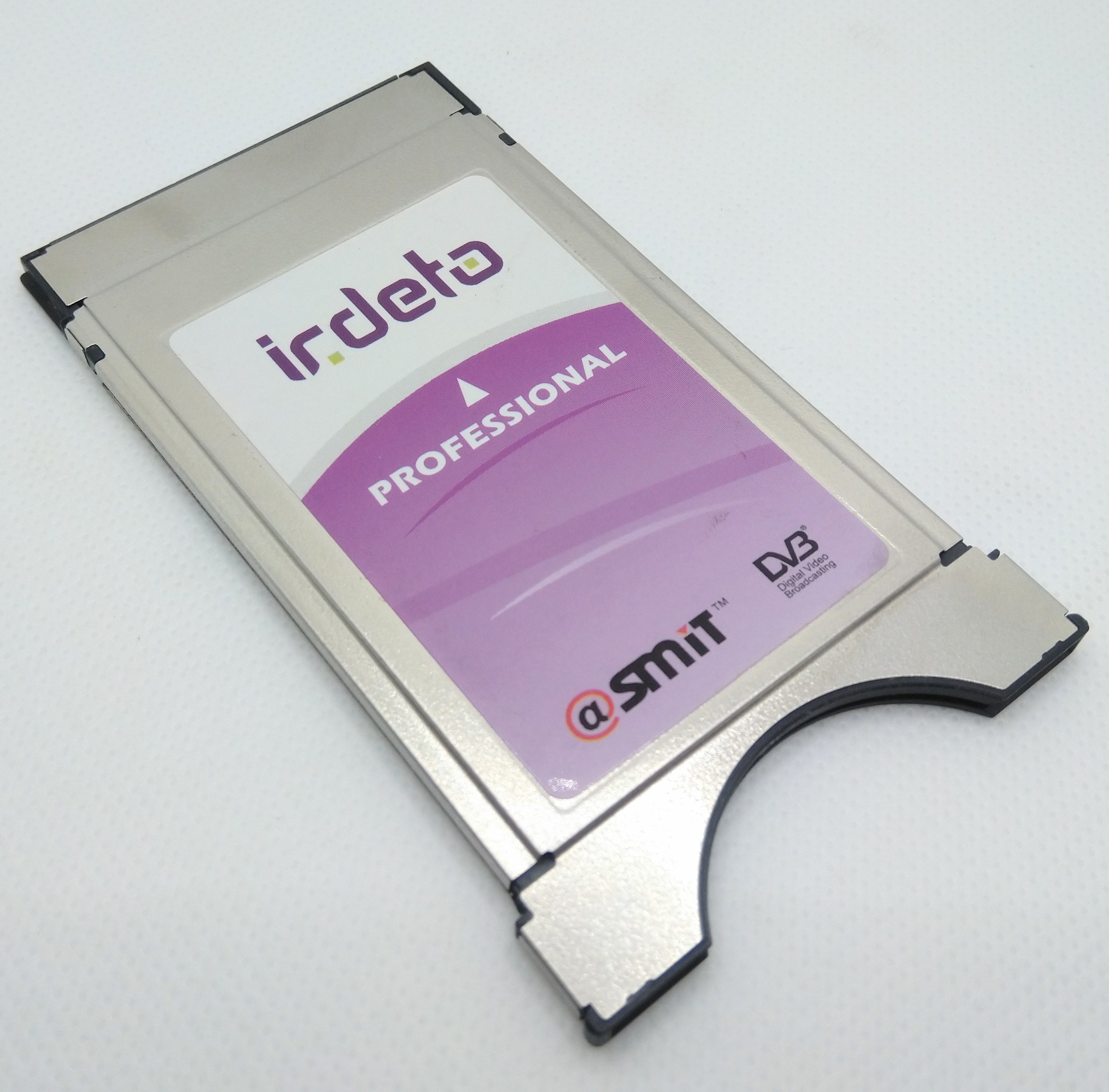

Licencovaný modul Irdeto od výrobce SMIT. Zaručuje velmi dobrou spolupráci s HD přijímači.

Možnost dekódování 6 stanic najednou (vhodne pro hlavni stanice atd).

pracovní prostředí
* Pracovní teplota: +5°C až +50°C
Maximální teplota pro stabilni fungovani je +50 ° C


Product Description:
- The CAM can be used on IRDs, which has DVB-CI interface
- Meticulously tested with IRDs models from Europe, the middle East, Australia, Asia
- The CAM supports Irdeto Softcell3.0 enhanced secure features(optional)
- With an authorized Irdeto smart card, the CAM gives access to DVB encrypted program

Chipset & TS bandwidth:
- Based on the Embedded 32-bit CPU (ARM7TDMI)
- Adopting advanced 0.18-micron technology
- Flash Size: 4M Bytes
- RAM Size: 384K Bytes
- TS process bandwidth: Up to 96Mbps
- Limited thermal aging test is over 24 hours

Physical & Electrical Characteristics:
- Dimensions: Type II PCMCIA card (100mm x 58mm x 4mm)
- Connector: 68-pin PCMCIA slot
- Operation voltage: 4.5V ~ 5.5V
- Operation current: <150mA
- Low power consumption: < 600mW

Standard:
- Plug and Play
- Compatible with DVB-CI standard (EN50221)
- Compatible with ETR289
- Compatible with ISO7816 T=0/T=14 protocol, Class A and Class B
- Compatible with MPEG-2/MPEG-4
- Compatible with the RoHS Directive 2002/95/EC and its subsequent amendments

Descrambling & Filtering:
- Supporting common descrambling algorithm of Europe
- Multi services descrambling (Optional), up to 8 services descrambling
- Up to 24 configurable PID filters for filtering packet or section data

Software Upgrade:
- Support OTA software upgrade
- Secure Loader for more secure, stable and efficient software upgrade
