Popis produktu:

Key Features

1. Compact Mini-Tower : D 11" x W 8.27" x H 9.45"
2. Support wide range of Mini-ITX Motherboard, from ATOM to Core i7
3. 4 x 3.5" Hot-Swap SATA HDD and 2x internal 2.5" SATA HDD
4. One low profile expansion slot32A4 - 1U Active Heatsink for SC502/503 with Celeron processor platform

Product SKUs

CSE-721TQ-250B

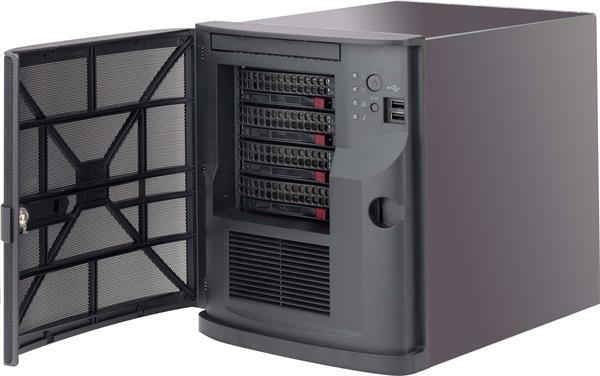

SuperChassis 721TQ-250B (Black)

Form Factor

Mini-Tower chassis for motherboard support size Mini-ITX 6.75" x 6.75"

Processor Support

Single Intel® and AMD processors

Dimensions

Height
9.45" (240.03mm)
Width
8.27" (210.06mm)
Depth
11" (279.4mm)
Packaging
12.4'' (W) x 13.78''(H) 16.14'' (L)
Gross Weight
15 lb (6.8 kg)
Available Colors
Black

Expansion Slots

1 low-profile expansion slot(s)

Drive Bays

Storage Chassis
4x 3.5" hot-swap SAS/SATA
2x 2.5" fixed drive bay
SAS or enterprise SATA HDD only recommended

Backplane

4x 3.5" SATA / SAS Backplane with SES24x 3.5" SATA / SAS Backplane with SES24x 3.5" SATA / SAS Backplane with SES24x 3.5" SATA / SAS Backplane with SES2

Peripheral Drives

DVD-ROM • 1 slim DVD-ROM drive bay

Front Panel

Buttons • Power On/Off button
• System Reset Button
LEDs • 1 Network Activity LEDs
• Fan Fail/System Over Heat LED
• HDD activity LED
• Power Status LED


Motherboard(s) for CSE-721TQ-250B

A1SAi-2550F
A1SAi-2750F
A1SRi-2558F
A1SRi-2758F
X10SBA
X10SBA-L
X10SDV-F
X10SDV-TLN4F
X10SLV
X10SLV-Q
X11SBA-F
X11SBA-LN4F
X9SBAA-F
X9SCAA
X9SCAA-L
X9SCV-QV4 (2.01)
X9SPV-F-3217UE
X9SPV-F-3610ME
X9SPV-LN4F-3LE
X9SPV-LN4F-3QE
X9SPV-M4
X9SPV-M4-3QE
X9SPV-M4-3UE

Server(s) for SC721TQ-250B

5028A-TN4 5028D-TN4T
5028L-TN2

System Cooling

Fans • 1x 12cm rear exhaust fan
• 1x 12cm rear exhaust fan
• 1x 12cm rear exhaust fan
• 1x 12cm rear exhaust fan


Operating Environment (System)

Operating Temperature Range
5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range
-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range
8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)

Power Supply

250W Flex ATX Multi-output Bronze Power Supply
AC Voltage
100 - 240V, 50 - 60Hz, 5Amp
+5V
Max:14 Amp; Min:0.5 Amp
+12V
Max:18 Amp; Min:1 Amp @100V-240V
-12V
Max: 3 Amp; Min: 0 Amp
+3.3V
Max: 12 Amp Min: 0.3Amp
5VSB
Max: 2.5 Amp Min: 0 Amp
Certification 80 PLUS   Bronze Certified

Regulatory (Power Supply)

Power Supply Safety / EMC
USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant
