Popis produktu:

Key Features

1. Versatile front I/O access (2x USB3.0 & audio ports).
2. Tool-less side panel; tool-less 5.25inch (DVD), 3.5inch (card reader) device & add-on-card installation.
3. 90-degree rotatable HDD cage design; One push HDD installation and folded ddge design for safe installation.
4. Optional 4x internal 2.5inch HDD cage and all-In-One card reader available .

Product SKUs

CSE-732D3-903B

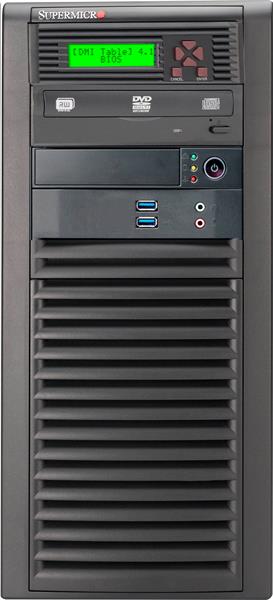

SuperChassis 732D3-903B (Black)

Form Factor

Mid-Tower chassis for motherboard support size of ATX 12" x 9.6", ATX 12" x 10", E. ATX 12" x 13", Micro ATX 9.6" x 9.6",

Processor Support

Dual, single Intel® / AMD processors

Dimensions

Height
16.7" (424mm)
Width
7.6" (193mm)
Depth
20.68" (525mm)
Packaging
11.97'' (W) x 21.38''(H) 25.28'' (L)
Gross Weight
30 lb (13.61 kg)
Available Colors
Black

Expansion Slots

7 full-height & full-length expansion slot(s)

Drive Bays

Internal • 4 x 3.5" fixed drive bay
• SAS or enterprise SATA HDD only recommended
Peripheral Bay • 1 card reader module
• 2 standard 5.25" drive bay

Front Panel

Buttons • Power On/Off button
LEDs • 1 Network Activity LEDs
• HDD activity LED
• System Information LED


Motherboard(s) for CSE-732D3-903B

X10SRA-F

Server(s) for SC732D3-903B

5038A-I

System Cooling

Fans •1x 12cm rear exhaust fan


Operating Environment (System)

Operating Temperature Range
5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range
-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range
8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)

Power Supply

900W AC multi output power supply
AC Voltage
100-240 V, 50-60 Hz, 10-6 Amp
+5V Standby
3 Amp
+12V1
25 Amp
+12V2
25 Amp
+12V3
25 Amp
+12V4
25 Amp
+5V
25 Amp
+3.3V
25 Amp
-12V
0.5 Amp
Certification Gold Level   Gold Level
Note: • Max. continuous combined load on +3.3V and +5V output shall not exceed 155W.
• Max. continuous combined load on +12V1, +12V2, +12V3 and +12V4 output shall not exceed 860W.

Regulatory (Power Supply)

Power Supply Safety / EMC
USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant


See Parts List



Standard Parts List

Part Number Qty Description
Chassis CSE-732D3-903B 1 Mid-Tower Chassis (Black)
Power Supply PWS-903-PQ 1 PS2 900W Multi-Output Power Supply 80Plus Gold
Cable(s) CBL-0071L 1 ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG
Cable(s) CBL-0084L 1 Front control cable 16 pin split, 6
Cable(s) CBL-0453L 1 USB 3.0 Internal Cable-60 cm(19 pin Female to 19pin Female)
Cable(s) CBL-0160L 1 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Cable(s) CBL-0455L 1 HD to AC97 Audio Cable-60cm
Fan(s) FAN-0124L4 1 12 CM x12 CM fan
Drive Tray MCP-220-73101-0B 4 SC731 Tool-less Internal 3.5inch HDD Tray
Mounting Rail MCP-290-73102-0N 1 SC731 Card Reader Rail


Optional Parts List

Part Number Qty Description
Adapter Cable CBL-0454L -- USB3.0 to 2.0 adapter cable - 30cm(19pin male to 9pin female)
LCD Kit MCP-220-00095-0B -- 5.25" USB LCD Kit
HDD Cage MCP-220-73201-0N -- HDD Cage (4x Internal 2.5" fixed HDD bays)
Fan Kit FAN-0124L4 -- 12cm (1850rpm) cooling Fan
