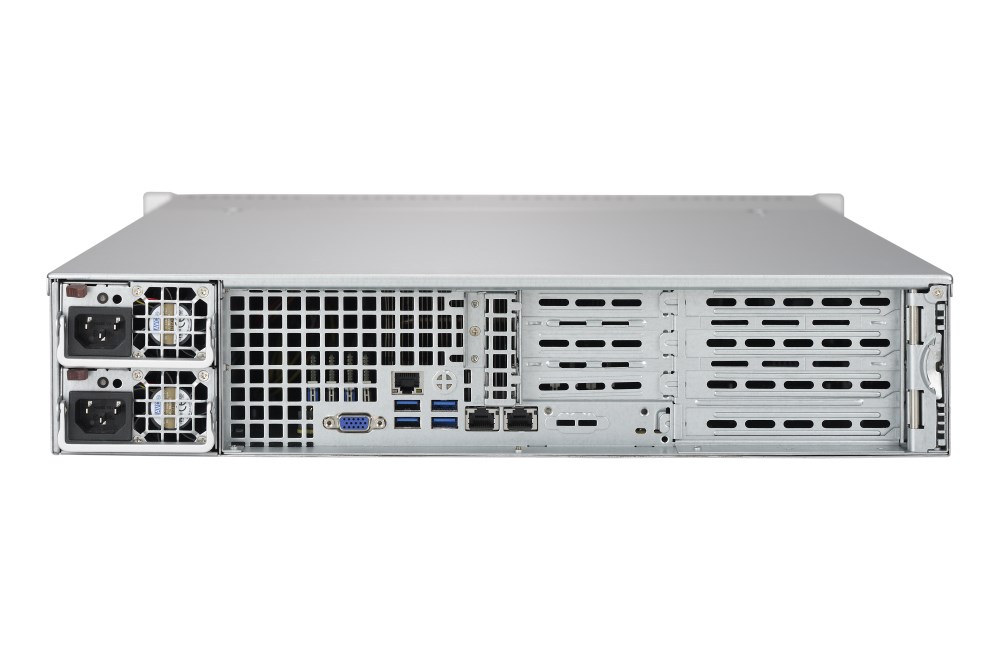

Supermicro® CSE-825TQ-500WB 2U chassis 8x 3,5" HS SAS/SATA, 2x500W (80PLUS Platinum), WIO CSE-825TQ-R500WB
Supermicro® CSE-825TQ-500WB 2U chassis 8x 3,5" HS SAS/SATA, 2x500W (80PLUS Platinum), WIO CSE-825TQ-R500WB
| Výrobca |
Supermicro |
|
|---|---|---|
| Kód | ITK273050 | |
| Part No. | CSE-825TQ-R500WB | |
| Dostupnosť po pobočkách |
NRE
NR
BA |
|
| DPH | 20% | |
| Vaša cena s DPH |
797.39 €
bez DPH 664.49 €
|
|
| Vaša cena bez DPH | ||
| Garancia ceny | Našli ste inde na internete nižšiu cenu? Informujte nás! | |
|
|
||
| Objednať |
|
|
Záruka koncový zákazník: 24 Mesiacov
Záruka firma: 24 Mesiacov
Výrobca:
Kód: ITK273050
Part No.: CSE-825TQ-R500WB
Záruka firma: 24 Mesiacov
Výrobca:
Supermicro
Kód: ITK273050
Part No.: CSE-825TQ-R500WB
Supermicro® CSE-825TQ-500WB 2U chassis 8x 3,5" HS SAS/SATA, 2x500W (80PLUS Platinum), WIO CSE-825TQ-R500WB
Obchod si vyhradzuje právo na zmenu ceny až po potvrdenie objednávky. Obrázok má len ilustračný charakter.
Zaradenie produktu
Diskusia (0)
Poslať info
- +Akcia
- +JARNÉ POMÔCKY
- +PC, NOTEBOOKY
- +MOBILY, TABLETY, HODINKY
- +PC KOMPONENTY
- +PERIFÉRIE
- +HERNÁ ZÓNA
- +ČIERNA TECHNIKA
- +MALÁ BIELA TECHNIKA
- +VEĽKÁ BIELA TECHNIKA
- +SOFTWARE, E-KNIHY
- +MICROSOFT SOFTVÉR
- +ŠPORT, ZDRAVIE
- +ZÁHRADA, HOBBY
- +NÁBYTOK
- +FOTOVOLTAIKA
Naposledy navštívené
| Kód | Názov produktu | Vaša cena |
|---|
Vážení zákazníci, dovoľujeme si Vás upozorniť, že pri zásielkach expedovaných po 18.12.2024 nám nevie kuriérska spoločnosť zaručiť, že budú dodané do 23.12.2024. Ďakujeme za porozumenie. Viac info
Podrobnosti o produkte
Popis produktu:
Popis produktu:
1. 500W Redundant Power Supplies
80 PLUS, Platinum Level (94%)
2. 8x 3.5" Hot-swap SAS / SATA Drive
Bays
3. 2x Fixed 3.5" Drive Bays
4. Adjustable Air Shroud
5. 4x Full-height, Full-length I/O
3x Low-Profile Expansion Slots
6. Power Switch & 6 LED Indicators
7. Full SES2 support is available with SAS motherboards and other compatible components.
Form Factor
2U chassis supports Supermicro Proprietary WIO motherboards:
12" x 13", 13.68" x 16.5" E-ATX
Processor Support
Supports dual, single Intel® / AMD processors
Dimensions
Height 3.5" (89mm)
Width 17.2" (437mm)
Depth 25.5" (648mm)
Gross Weight 52 lbs (23.6 kg)
Available Color Black
Expansion Slots
• 4x Full-height Full-length I/O and 3x Low-Profile Expansion Slots
(Standard add-on cards)
Drive Bays
Hot-swap 8x 3.5" SAS / SATA Hot-swap drive bays
SAS or enterprise SATA HDD only recommended
SAS Backplane
1x 2U SAS backplane w/ Enclosure Management
Peripheral Drives
DVD-ROM Slim DVD-ROM drive (Optional)
Front Panel
Buttons • Power On/Off button
• System Reset button
LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Power fail LED
Ports 2x USB Ports + DB9 COM Port (optional)
System Cooling
Fans 3x 80x38mm 4-pin PWM Fans
System Monitoring
Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range
-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range
8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply with Power Distributor
500W high-efficiency redundant power supplies with PMBus
AC Input
100-240 V, 50-60 Hz, 6.1-2.6 Amp
DC Output
4 Amp @ +5V standby
41.7 Amp @ +12V
With Power Distributor
+5V: 30 Amp
+3.3V: 24 Amp
-12V: 0.6 Amp
Certification Platinum Level
[ Test Report ]
Regulatory (Power Supply)
Power Supply Safety / EMC
USA - UL listed
Canada - CUL listed
Germany - TUV Certified
EN 60950/IEC 60950-Compliant
CB Report
CCC Certification
