Popis produktu:

Key Features

• High Performance SAS2/6GbS Expander
• High Efficiency PS and Storage Capacity

1. 1200W high-efficiency (1+1) redundant
   power supply (Gold Level 93%)
2. 16x 3.5" Hot-swappable SAS / SATA
   Drive Bays
3. 1 x Slim DVD-ROM Drive (optional)
4. 6Gb/s SAS2 Expander
5. Mini-I-Pass (SFF 8087) connectivity
6. 3x 8cm Hot-swap 4-pin PWM Fans
7. 2x 8cm Rear-exhaust 4-pin PWM Fans
8. Palletized package for secure
   transportation
9. Optional 3x slim 2.5" Internal Fixed HDD
Form Factor

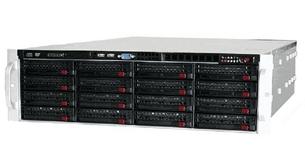

CSE-836E16-R1200B SuperChassis 836E16-R1200B (Black)

Form Factor

3U chassis support for max. motherboard size -
13.68" x 13", E-ATX and ATX

Processor Support

Supports dual, single Intel® / AMD processors

Dimensions

Height 5.2" (132mm)
Width 17.2" (437mm)
Depth 25.5" (648mm)
Gross Weight 72 lbs (32.7kg)
Available Color Black

Expansion Slots

• 7x full-height full-length expansion slots

Drive Bays

Hot-swap 16x 3.5" SAS / SATA Hot-swap drive trays
SAS or enterprise SATA HDD only recommended

Backplane

SAS2 Expander Backplane, features:
• Scalability through cascading
• 6Gb SAS2/SATA3 HDD support
• Inband SES-2 Enclosure Management
• Single input/output SFF 8087 connectors

Peripheral Drives

DVD-ROM Slim DVD-ROM Drive (Optional)
Floppy Slim 1.44MB Floppy Drive (Optional)

Front Panel

Buttons • Power On/Off button
• System Reset button
LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
• Power fail LED
Ports 2x USB Ports & DB9 COM Port

System Cooling

Fans • 3x 80mm Hot-swap 4-pin PWM Fans
• 2x 80mm Rear-exhaust 4-pin PWM Fans

System Monitoring

Chassis intrusion switch

Operating Environment (System)

Operating Temperature Range 10 - 35°C (50° - 95°F)
Non-Operating Temperature Range -40 - 70°C (-40° - 158°F)
Humidity Range 8 - 90% non-condensing
Non-Operating Humidity Range 5 - 95% non-condensing

Power Supply

Redundant 1200W high-efficiency power supply with PMBus
AC Input 100 - 140V, 50 - 60Hz, 8 - 11.5 Amp
180 - 240V, 50 - 60Hz, 5.5 - 8 Amp
DC Output
+12V 1000W, 83 Amp @ 100-140V
1200W, 100 Amp @ 180-240V
5Vsb: 4A
DC Output
with PDB +5V: 50 Amp
+3.3V: 30 Amp
-12V: 0.6 Amp
Certification
 80 PLUS Gold Certified
 [ Test Report ]

Regulatory (Power Supply)

Power Supply Safety / EMC USA - UL listed
Canada - CUL listed
Germany - TUV Certified
EN 60950/IEC 60950-Compliant
CB Report
CCC Certification







Standard Parts List

Part Number Qty Description
Chassis CSE-836TS-R1200BP
MCP-420-83601-0N 1
1 3U Chassis (Black)
Chassis Accessory Box
Backplane BPN-SAS2-836EL1 1 836 backplane with single LSI SAS2X28 expander chip
Cable(s) CBL-0087 1 20" 16-pin to 16-pin Round Ribbon Cable
Chassis Accessory Box MCP-420-83601-0N 1 Accessory Box for SC836 with two power cords, NO FDD acc.
Drive Tray(s) NCP-220-00024-0B
MCP-220-00007-01 16
1 Black hot-swappable 3.5" drive trays
Black USB/COM port tray for SC825 & SC836
Fan(s) FAN-0062L4
FAN-0094L4 2
3 8cm 4-pin Rear PWM Fan (with Housing)
8cm 4-pin Hot-swap PWM Fan
Front Panel MCP-280-00012-00 1 Front control board (FP836) for SC823M, 825, 825M, 828, 835, 836
Mounting Rails MCP-290-00053-0N 1 26.5" to 36.4" rail set, quick/quick, default for 2U, 3U 17.2" W chassis
Part MCP-290-83601-0V 1 Silver chassis handle for SC836
Peripheral Drives MCP-290-00007-01
MCP-290-00015-01 1
1 Black DVD dummy cover for SC825, 836
Black FDD dummy cover for SC836
Power PWS-1K21P-1R
PDB-PT825-8824 2
1 1200W Gold-Level power supply with PMBus
24-pin x8 power distributor
Rail Adaptor MCP-290-00060-0N 1 Square hole to round hole rail adaptor set
Air Shroud MCP-310-38001-0N 1 SC835/836/936 Intel DP X8.X7 PC Air Shroud
Palletized Package MCP-430-83601-0N 1 Storage chassis palletized shipping box for SC836,936
