Popis produktu:

Key Features

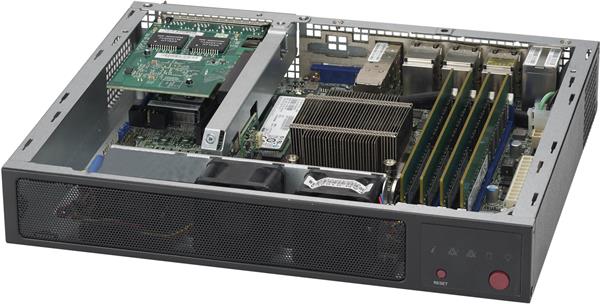

1. Compact Desktop 1U Server BOX PC
2. Embedded Appliance Chassis
3. Optimized for Flex-ATX and Mini-ITX Motherboard
4. Support 2x 2.5 internal HDD or 1x Standard LP AOC
5. Power Switch, Reset Button and LED Indicators




Product SKUs

CSE-E300
SuperChassis E300

Form Factor

Flex-ATX 9.0" x 7.25", Mini-ITX chassis

Processor Support

Single Intel® and AMD processors

Dimensions

Height
1.7" (43 mm)
Width
10" (254 mm)
Depth
8.9" (226 mm)
Net Weight
2.76 lbs (1.25 kg)
Gross Weight
3.7 lbs (1.68 kg)
Packaging (W x H x L)
15" (381 mm) x 10.87" (276 mm) x 5.59" (142 mm)
Available Color
Black

Drive Bays

2 x 2.5" fixed drive bay

Front Panel

Buttons
Power On/Off button
System Reset Button
LEDs
Unit Identification (UID) LED


Motherboard (for CSE- E300)

X10SDV-TP8F X10SDV-2C-TP8F
X10SDV-2C-TP4F X10SDV-4C+-TP4F
A2SDi-H-TP4F A2SDi-H-TF
A2SDi-TP8F A2SDi-LN4F
A2SDi-4C-HLN4F A2SDi-12C-HLN4F
A2SDi-16C-HLN4F A2SDi-8C-HLN4F
A2SDV-8C-TLN5F A2SDV-16C-TLN5F
A2SDV-12C+-TLN5F

Servers (for CSE- E300)

E300-8D E300-9A
Systems Cooling

Fans
1 x 4cm high performance PWM fan(s)
Optional 2 x fans for AOC cooling

Operating Environment (System)

Operating Temperature Range
0°C - 40°C (32°F - 104°F)
Non-Operating Temperature Range
-20°C - 60°C (-4°F ? 140°F)
Operating Relative Humidity Range
10% - 85% (non-condensing)
Non-Operating Relative Humidity Range
10% - 95% (non-condensing)

Power Supply
Optional 60W/84W, DC-DC Power Adapter or DC/DC Power converter board

Regulatory (Power Supply)

Power Supply Safety / EMC
CCC
CE/EMC
FCC
TUV/CB
UL/CUL




Standard Parts List

Part Number Qty Description
Fan(s) FAN-0065L4 1 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Cooling Fan & Accessory MCP-320-30001-0N 1
Part(s) MCP-260-30001-0B 1


Optional Parts List

Part Number Qty Description
Power Adapter MCP-250-10117-0N - 60W DC power adapter with US power cord 18AWG 6ft
Power Adapter MCP-250-10122-0N - 84W DC power adapter with US power cord 18AWG 6ft
IO shield MCP-260-10108-0B - CSE-101F, E300 Rear I/O for X11SSV-Q
IO shield MCP-260-10107-0B - CSE-101F, E300 Rear I/O for A1SAi And A1SRi
Chassis parts MCP-290-30002-0B - CSE-E300 Rackmount kit
Cable CBL-SAST-1034 - SATA Splitter Cable with Power for dual SATA HDD
Cable CBL-CUSB-0975 - RJ45 SERIAL Cabel for Console
Fan Kit FAN-0065L4 - 4028mm 13K RPM 4-PIN PWM FAN
Riser Card RSC-RR1U-E8 - RSC-RR1U-E8 (Rev 4.00)
