Popis produktu:


Key Features

1. 350W High-efficiency Power Supply
    80 PLUS, Gold Level Certified
2. 2x 3.5" Internal Drive Bays
3. 1x Slim DVD-ROM Drive (optional)
4. 2x Counter-rotating Fans
5. 1x I/O Expansion Slot
6. Power Switch, Reset, and
   5x LED Indicators

Product SKUs

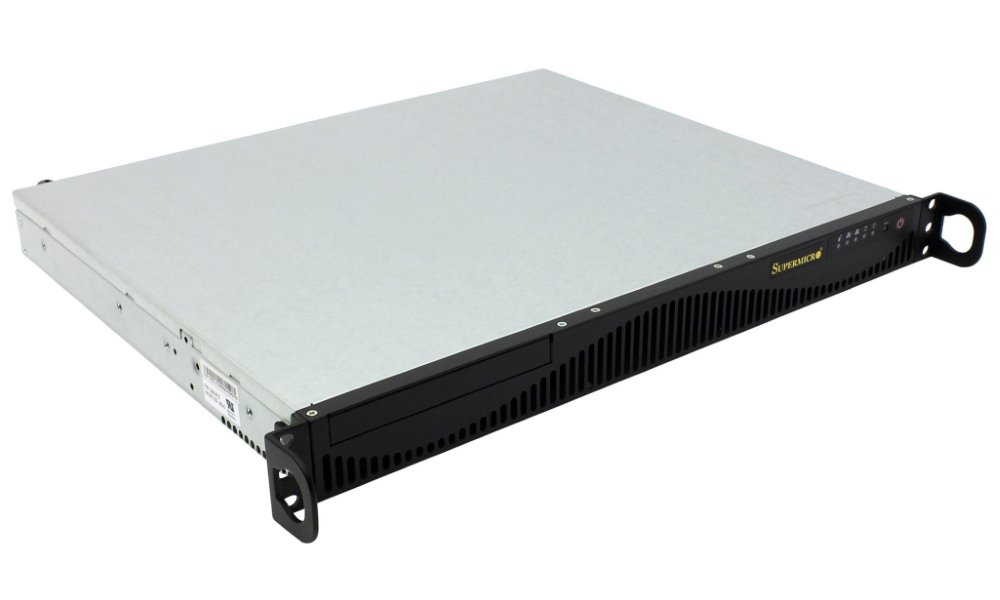

CSE-512F-350B SuperChassis 512F-350B (Black)


Form Factor

14.5" Mini 1U chassis support for max. motherboard size - 12" x 10" ATX

Processor Support

Supports dual, single Intel® / AMD processors

Dimensions

Height 1.7" (43mm)
Width 17.2" (437mm)
Depth 14.5" (369mm)
Packaging 22" (W) x 6.3" (H) x 20" (L)
Gross Weight 14 lbs (6.4kg)
Available Colors Black

Expansion Slot

1x full-height half-length expansion slot (Riser Card Required)

Drive Bays

Internal Bay 2x 3.5" internal drive bays
SAS or enterprise SATA HDD only recommended

Peripheral Drives

DVD-ROM Slim DVD-ROM Drive (optional)

Front Panel

Buttons Power On/Off button
Reset button
LEDs Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED

System Cooling

Fans 2x 4cm 4-pin PWM Fans


Operating Environment (System)

Operating Temperature Range 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range 5% - 95% (non-condensing)

Power Supply

350W AC power supply w/ PFC
AC Voltage 100-240 V, 50-60 Hz, 4.2-1.8 Amp
+5V 18 Amp
+5V standby 3 Amp
+12V 29 Amp
+3.3V 15 Amp
Certification
  80 PLUS Gold Certified
  [ Test Report ]

Regulatory (Power Supply)

Power Supply Safety / EMC USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant







Standard Parts List

Part Number Qty Description
Chassis CSE-512F-350B 1 14" Mini 1U Chassis (Black)
Power Supply PWS-351-1H 1 1U 350W MULTI OUTPUT 80PLUS GOLD PWS
Cable 1 CBL-0156L 1 Front ctrl cable Round 16pin to 16pin, 40cm, PBF
Cable 2 CBL-0260L 1 US power cord 18AWG 6ft, PBF (default for low watt)
Cable 3 CBL-0261L 1 40CM 7PIN SATA CABLE S-RA for SC512,512L, PBF
Cable 4 CBL-0262L 1 4PIN TO 1xSATA(RA)+1x4PIN(RA)+1xFPD PWS EXT. CBL
Peripheral Drive MCP-290-00006-01 1 Black DVD dummy cover for SC512, RoHS
Fan FAN-0087L4 2 40x56,4 Pin PWM Fan
Front Panel MCP-280-51201-0N 1 Front control board (FP512) for SC512 (surface-mounted LED)
Fan Holder MCP-320-00003-01 1 Fan holder of two 40x40x56mm fans for SC512F-280
Part(s) MCP-260-00024-0N 1 1U I/O shield for X8 server MB (3rd LAN + 4xLAN)
Part(s) MCP-290-00005-01 2 Black chassis handle for SC512F-520




Optional Parts List

Part Number Qty Description
Cable CBL-0084L - Front control cable 16-pin split convertor 6", PBF
Hard Drive Bracket MCP-220-00051-0N
MCP-220-00044-0N -
- Single 2.5" fixed HDD mounting bracket
Dual 2.5" fixed HDD mounting bracket (only w/o DVD)
Mounting Rails MCP-290-00004-03 - 25.6" to 33.05" chassis rail set for SC512F
Quick Release Rails MCP-290-00055-0N
MCP-290-00056-0N -
- 25.6" to 33.05" chassis rail set, screw/quick, for SC512F
19" to 26.4" outer rail, /quick, for 1U 17.2" W chassis
Peripheral Drives DVM-TEAC-824B
DVM-PNSC-824B
DVM-TEAC-DVD-SBT1
DVM-PNSC-DVD-SBT1 -
-
-
- Black slim IDE DVD (8x DVD, 24x CDR), TEAC
Black slim IDE DVD (8x DVD, 24x CDR), Panasonic
Black slim SATA DVD (8x DVD, 24x CDR), TEAC
Black slim SATA DVD (8x DVD, 24x CDR), Panasonic
Heatsink / Retention - - Please refer to our Thermal Components Matrix
