Popis produktu:

For quality assurance purpose, the product is required to be sold as complete system with HDDs fully integrated and tested. Please contact your Supermicro sales representative for validated HDDs.

Key Features

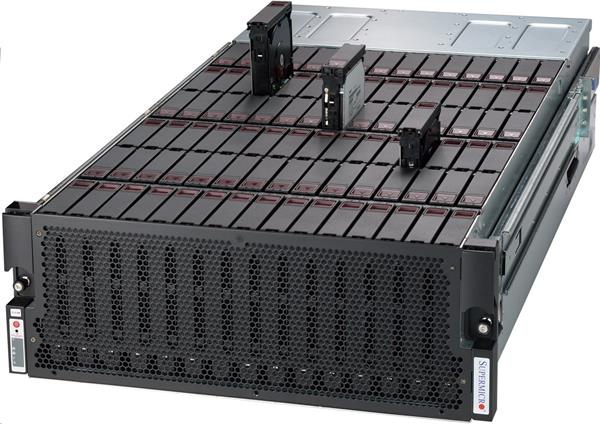

1. Extreme High Density and High Capacity Dual-path Storage Enclosure
2. Support 90 x 3.5” or 2.5” Top Loading SAS3 12Gb/s Hot-swappable HDDs
3. Hot-swappable Expanders with redundant BMC for Remote System Power on/off and monitoring
4. Hot-swappable Tool-less Modular Design for Easy Service and Easy Maintenance
5. High Performance up to 20+ GB/s data transfer rate
6. Tool-less HDD tray with HDD LED indicator
7. SCSI Enclosure Services (SES 3.0) compliant
8. Flexible to configure up to 4 Hosts HDD Zoning and individual HDD power cycling
9. Slide Rails and Cable Management Arm included
Product SKUs

CSE-946ED-R2KJBOD
SuperChassis 946ED-R2KJBOD (Black)

Form Factor

4U chassis

Processor Support

N/A

Dimensions

Height
7" (178mm)
Width
17.6" (447mm)
Depth
35.66" (906mm)
Packaging
31.49'' (W) x 30.12''(H) 45.28'' (L)
Gross Weight
225 lb (102.06 kg)
Available Colors
black

Drive Bays

JBOD Chassis
• 90 x 3.5"/2.5" hot-swap SAS drive bay with SES3
• SAS HDD only recommended

Expander Module


• Dual hot-swappable SAS3 expander module

Front Panel

Buttons • Power On/Off button
• Unit Identification (UID) button
LEDs • 2 Network Activity LEDs
• Power Fail LED
• System Information LED
• Unit Identification (UID) LED


System Cooling

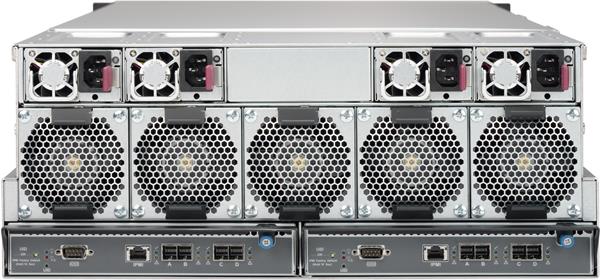

Fans 5 x 80mm heavy duty fans with PWM fan speed control


Operating Environment (System)

Operating Temperature Range
5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range
-40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range
8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)

Power Supply with Digital Switching Control

1U 1000W Redundant Single Output Power Supply Titanium Level
AC Input
100-127 V, 50-60 Hz
200-240 V, 50-60 Hz
+12V
Max: 66.7A (100Vac-127Vac)
Max: 83A (200Vac-240Vac)
12V SB
Max: 2.1A
Certification Titanium Level 96%    Titanium Level
 `  [ Test Report ]

Regulatory (Power Supply)

Power Supply Safety / EMC
USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant


See Parts List



Standard Parts List

Part Number Qty Description
Chassis CSE-946ED-R2KJBOD 1 4U Chassis (Black)
Power Supply PWS-1K04A-1R 4 1U CRPS Redundant 1000W Titanium ( 185X73.5X40mm)
Power Distributor PDB-PT946-S616 1 12V 25pair connector input support 4pcs power supplies redundancy with special wires 12V/345A output
Fan 1 FAN-0161L4 5 SC946ED (90-Bay) Chassis Cooling Fan
Drive Tray(s) MCP-220-94601-0N 90 SC946ED 3.5\" tool-less HDD tray
Mounting Rails MCP-290-00129-0N 1 cable arm for SC946
Mounting Rails MCP-290-00124-0N 1 SC946ED rail set


Optional Parts List

Part Number Qty Description
--
Cable CBL-SAST-0677 -- 3m external Mini SAS HD to external mini SAS HD
Cable CBL-SAST-0690 -- 2m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
