Popis produktu:

Skvělý produkt v montovatelný do 5,25 pozice, který umožnuje plynulou regulaci až 4 větráčků ve Vašem počítači a tím dokonale ztišit Váš počítač při dobrém chlazení. Navíc obsahuje LCD panel s 1 teplotním čidlem, který umožňují sledovat teplotu a ještě ALARM upozorňující na překročení nastavené teploty. Ukazuje i maximální a minimální naměřenou teplotu. Produkt je napájen z 5,25 napájecího konektoru jako disk.

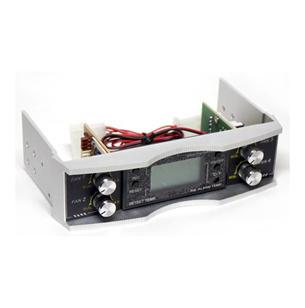

Thermaltake Advanced System Controller
Application:

Design for 5.25’’ drive bay
Temp. alarm LCD monitor
4 adjustable fan speed controllers
Aluminum housing


Features


ON / OFF: power on or power off switch.
ºC / ºF: Celsius and Fahrenheit display switch.
RESET: clean the temperature setting. (MAX & MIN)
REC: please adjust the pre-setting temperature by using the cross-head screw driver. When it shows the temperature you would like to set, ( the screen should be shown without MIN or MAX, see figure 1), please press the button to record the temperature.
Alarm Temp. Setting: Control the temperature you would like to set.
Temp. Display with alarm Specification:


Range: 0 ºC ~ 90 ºC (32 ºF ~ 194 ºF)
Resolution: 0.1 ºC (0.1 ºF)
Accuracy: +/-1 ºC (+/-2 ºF)
Sampling rate: 3 sec
Alarm setting range: 40 ºC ~ 90 ºC
Power: Lithium battery CR2032 3V


There are two temperature shown on the screen (T1, T2). T1 always mean pre-setting temperature as well as T2 representatives the temperature from sensor.

Note:
When the screen is shown MAX(Figure 2), it means the highest temperature you have recorded. In the meanwhile, T1 is the highest temperature you set, T2 is the highest temperature that the sensor detected.

On the other hand, MIN (Figure 3)means the lowest temperature that have been recorded.


Fan speed controller operation
If the fan unit you wish to control is over 0.35Amp, please connect it to either Speed Controller # 2 or 3. However, the total current of fan unit is less than 0.35Amp, please connect it to Fan1 or Fan 4.


If you wish to control a fan unit with a 3pin power connection, please use the included CPU Fan Adaptor.  Once connected, you may still monitor the RPM by connecting the Yellow wire directly to motherboard.
Example
An efficient way to control the fan units is to chain connect each Silent Fan Units.


Then attach this set to one of the Speed Controllers.



*If 4 or more Silent Fan Units are chain connected altogether, please attach the set to either Speed Controller #2 or #3.  This is because each Silent Fan Unit requires 0.10Amp:
[0.1Amp X 4 Silent Fan Units] is greater than 0.35Amp, so it must be connected to Fan2 or Fan3 only.
