Popis produktu:

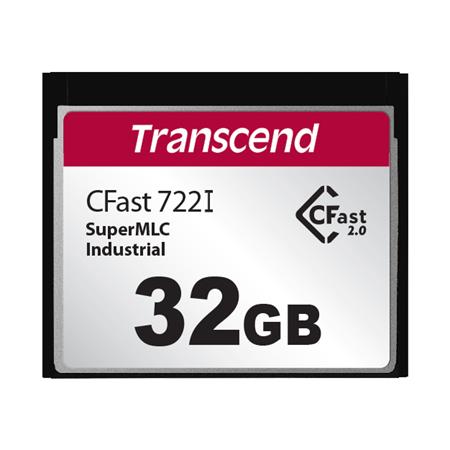

Transcend 32GB INDUSTRIAL TEMP CFAST CFX722I (MLC) paměťová karta (SLC mode), 510MB/s R, 355MB/s

Transcend's SLC Mode technology is a cost-effective solution that offers performance close to that of SLC NAND flash at a more affordable price. The CFX722I SLC Mode CFast 2.0 cards combine the advantages of high-performance, endurance, and stability. These cards can be used as bootable disks and perform on the level of an SSD at a cost-effective price, especially suitable for industrial-grade applications.

Technologies:
- SLC Mode
- Wide Temperature
- Garbage Collection
- Wear Leveling
- TRIM
- Bad Block Management
- Early Move

Firmware Features:
- Built-in ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- Wear-Leveling
- Security Command
- Power-saving DevSleep (Device Sleep) mode

Hardware Features:
- Compliant with RoHS 2.0 standards
- Compliant with CFast specification 2.0
- High-quality MLC NAND flash and SLC mode (also called SuperMLC) for exceptional endurance and reliability
- Durability: 10,000 insertion/removal cycles
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)


Software Solutions

Scope Pro
Manage / analyze data in real time and capture more of your market.


Specifications:
Dimensions: 42.8 mm x 36.4 mm x 3.3 mm
Form Factor: Compact flash card
Bus Interface: SATA III 6Gb/s
Flash Type: MLC NAND flash (SLC mode)
Capacity: 32 GB
Operating Voltage: 3.3V±5%
Operating Temperature:
- Wide Temp.-40°C ~ 85°C
Storage Temperature: -40°C ~ 85°C
Humidity: 0% ~ 95%
Shock: 1500 G, 0.5 ms, 3 axis
Vibration (Operating): 3 G (peak-to-peak), 5 Hz ~ 800 Hz (frequency)
Power Consumption (Max.): 2.01 watt(s)
Performance:
- Read Speed (Max.): up to 510 MB/s
- Write Speed (Max.): up to 355 MB/s
Mean Time Between Failures (MTBF): 1,000,000 hour(s)

Note
Speed may vary due to host hardware, software, usage, and storage capacity.

Certificate : CE/FCC/UKCA/ICES
Warranty: Three-year Limited Warranty

Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
