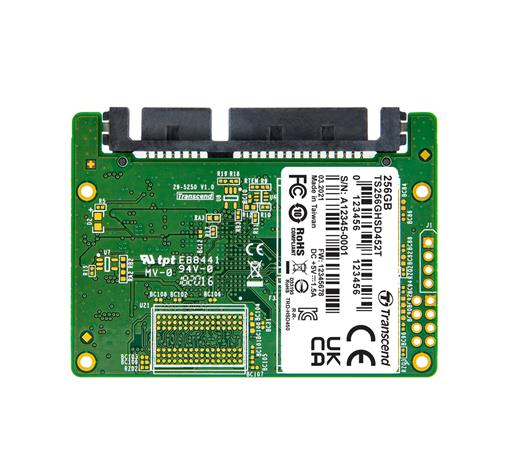

TRANSCEND HSD452T-I 256GB Industrial Half-Slim (3K P/E) SSD disk SATA III 6Gb/s, 3D TLC, 560MB/s R, 520MB/s W

Equipped with the SATA III 6Gb/s interface, a powerful controller, and state-of-the-art 96-layer 3D NAND flash, Transcend's HSD452T-I Half-Slim SSDs feature the latest Corner Bond technology for enhanced durability, built-in DRAM cache for fast access, an extended operating temperature range from -40°C to 85°C, and an endurance rating of 3K Program/Erase cycles for reliable operation. Following the MO-297 standard set by JEDEC, HSD452T-I SSDs undergo extensive reliability testing to ensure the utmost quality and performance, best suited to read-heavy applications and space-limited mobile devices such as industrial control systems, medical equipment, mobile devices, and POS terminals.

Technologies:
- 96-layer 3D NAND Flash
- Corner Bond
- Extended Temperature
- Wide Temperature
- Dynamic Thermal Throttling
- Thermal Sensor
- Read Disturbance
- Garbage Collection
- Wear Leveling
- TRIM
- Bad Block Management
-Power Shield (PS)
- Early Move

Firmware Features:
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Full drive encryption with Advanced Encryption Standard (AES) (optional)
- Power-saving DevSleep (Device Sleep) mode (HSD452T)

Hardware Features:
- Compliant with RoHS 2.0 standards
- Compliant with JEDEC MO-297
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Key components fortified by default with Corner Bond technology
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage

Software Solutions:

Control Center
Improve your control by easily managing devices at anytime from edge to cloud.

Scope Pro
Manage / analyze data in real time and capture more of your market.

ATA Security Toolbox
Secure your data in just a few easy steps.

One Touch Recovery
Rescue your data with a click to create a reliable and robust environment.


Specifications:
Dimensions: 54.0 mm x 39.8 mm x 4 mm
Weight: 9 g
Pin Count: 7+15 pin
Form Factor: Half-slim (MO-297)
Bus Interface: SATA III 6Gb/s
Capacity: 256 GB
Flash Type: 3D NAND flash
Operating Voltage: 5V±5%
Operating Temperature: -40°C~ 85°C
Storage Temperature: -55°C (-67°F) ~ 85°C (185°F)
Humidity: 5% ~ 95%
Shock: 1500 G, 0.5 ms, 3 axis
Vibration (Operating): 20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power Consumption (Operation): 2.7 watt(s)
Power Consumption (Sleep): 0.6 watt(s)
Sequential Read/Write (CrystalDiskMark):
- Read: up to 560 MB/s
- Write: up to 520 MB/s
4K Random Read/Write (IOmeter):
- Read: up to 90,000 IOPS
- Write: up to 85,000 IOPS
Mean Time Between Failures (MTBF): 3,000,000 hour(s)
Terabytes Written (TBW): up to 880 TBW
Drive Writes Per Day (DWPD): 1.61 (3 yrs)

Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.

Certificate : CE/FCC/BSMI/UKCA
Warranty: Three-year Limited Warranty

Warranty does not apply when Scope Pro software wear-out indicator displays 0% within the warranty coverage.
Due to the complexity and variety of industrial applications, Transcend cannot guarantee 100% compatibility with all platforms and under all scenarios. For special applications and environments, it is strongly suggested that you contact Transcend beforehand for clarification.
Scope Pro software is required by request. Please contact us for more information.
