Popis produktu:

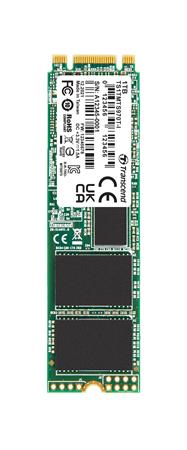

TRANSCEND MTS970T-I 1TB Industrial 3K P/E SSD disk M.2 2280 SATA III 6Gb/s  B+M Key (3D TLC), 560MB/s R, 520MB/s W

Transcend's M.2 SSD MTS970T-I features the SATA III 6Gb/s interface and the state-of-the-art 3D NAND technology, which allows 112 layers of 3D NAND flash chips to be vertically stacked. Compared to 3D NAND at 96 layers, this density breakthrough greatly improves storage efficiency, and its built-in DRAM cache allows faster access. Applied with 30µ" gold finger PCB and Corner Bond technology, the MTS970T-I is fully tested in-house to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles and an extended operating temperature ranging from -40°C ~ 85°C, to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.

Technologies:
- 12-layer 3D NAND Flash
- 30µ” PCB Gold Finger
- Corner Bond
- Extended Temperature
- Wide Temperature
- Dynamic Thermal Throttling
- Thermal Sensor
- Read Disturbance
- Anti-sulfur Technology
- Garbage Collection
- Wear Leveling
- TRIM
- Bad Block Management
- Power Shield (PS)
- Early Move

Firmware Features:
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Static Data Refresh
- Early Move
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- TRIM command for better performance
- N CQ command for better performance
- Full drive encryption with Advanced Encryption Standard (AES) (optional)
- Power-saving DevSleep (Device Sleep) mode (optional)

Hardware Features:
- Compliant with RoHS 2.0 standards
- Space-saving M.2 form factor (80mm) – ideal for mobile computing devices
- DDR3 DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Anti-sulfur technology implemented to prevent sulfurization in the environment
- Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
- Extended Temp. (-20°C ~ 75°C) and Wide Temp. (-40°C ~ 85°C) options available
- Supports Transcend Scope Pro software

Software Solutions:

Control Center
Improve your control by easily managing devices at anytime from edge to cloud.

Scope Pro
Manage / analyze data in real time and capture more of your market.

One Touch Recovery
Rescue your data with a click to create a reliable and robust environment.

Specifications
Dimensions: 80.0 mm x 22.0 mm x 3.58 mm
Weight: 9 g
M.2 Type: 2280-D2-B-M (Double-sided)
Form Factor: M.2 2280
Bus Interface: SATA III 6Gb/s
Capacity: 1 TB
Flash Type: 112-layer 3D NAND flash
Operating Voltage: 3.3V±5%
Operating Temperature:
Extended Temp.: -40°C ~ 85°C
Storage Temperature: -55°C ~ 85°C
Humidity: 5% ~ 95%
Shock: 1500 G, 0.5 ms, 3 axis
Vibration (Operating): 20 G (peak-to-peak), 7 Hz ~ 2000 Hz (frequency)
Power Consumption (Operation): 4.0 watt(s)
Power Consumption (Sleep): 1.2 watt(s)
Sequential Read/Write (CrystalDiskMark):
- Read: up to 560 MB/s
- Write: up to 520 MB/s
4K Random Read/Write (IOmeter):
- Read: up to 90,000 IOPS
- Write: up to 85,000 IOPS
Mean Time Between Failures (MTBF): 3,000,000 hour(s)
Terabytes Written (TBW): up to 4840 TBW
Drive Writes Per Day (DWPD): 2.16 (3 yrs)

Note
Speed may vary due to host hardware, software, usage, and storage capacity.
The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest capacity.

Certificate : CE/FCC/BSMI/UKCA
Warranty: Three-year Limited Warranty

Warranty does not apply when Scope Pro software wear-out indicator displays 0% within the warranty coverage.
Scope Pro software is required by request. Please contact us for more information.
