Popis produktu:

Local console operation - control your system from the extended USB keyboard, USB mouse, and monitor via local console
Built-in ASIC for greater reliability and compatibility
Supports computers with PS/2 or USB keyboards and mice
Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*

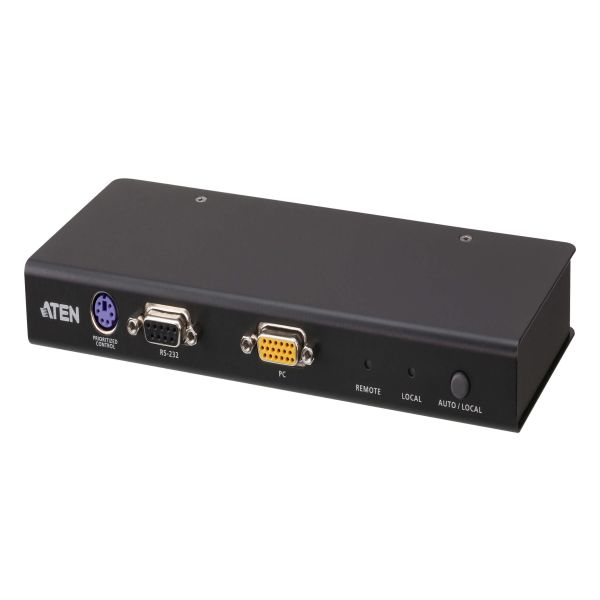

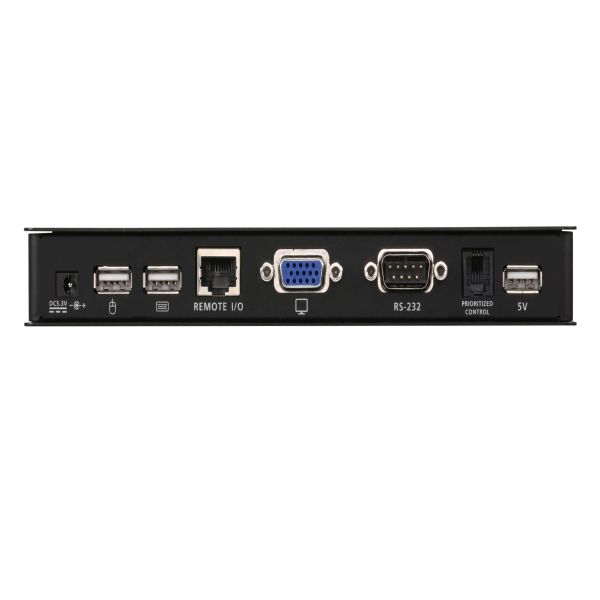

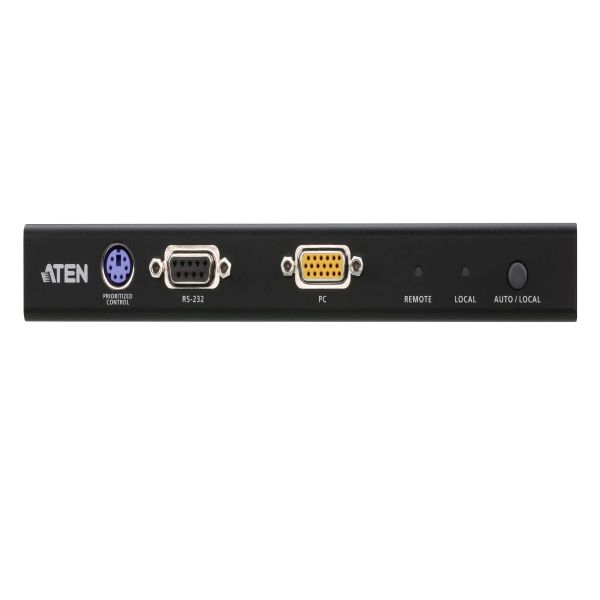

For smooth operation and added convenience, ATEN´s KA7171 USB-PS/2 KVM Adapter Module is designed to provide a full console connection locally in a KVM over IP Switch or Matrix KVM* installation. The KA7171 allows a PS/2 or USB server to be connected to the switch via Cat 5e/6 cable and provides an extra console via USB keyboard, USB mouse, and monitor to use for extended local operations. In addition, the Privileged Console Control function prevents remote users from operating the device when a local administrator requires full control of the server - reducing conflicts and unwanted operations.

Cat 5e/6 cable connects the device and KVM switch
Supports computers with PS/2 or USB keyboards and mice
Local console operation - control your system from the extended USB keyboard, USB mouse, and monitor via local console
Pushbutton operating mode selection for privileged console control
Built-in ASIC for greater reliability and compatibility
USB overcurrent detection and prevention
Built-in ESD protection and surge protection
Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
Supports VGA , SVGA , SXGA , UXGA , WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B
Easy to install – no software required - connecting cables to the devices is all it takes

* This maximum resolution may vary depending on the transmission distance. For more details, please refer to the product pages of the connected KVM switches.

Package Contents
1x KA7171 USB-PS/2 KVM Adapter Cable with Local Console
1x 0AD6-1605-09EG Power Adapter
1x 2L-5301UP USB-PS/2 KVM Cable
1x Foot Pad Set (4pcs)
1x User Instructions
