Popis produktu:

IFP8632

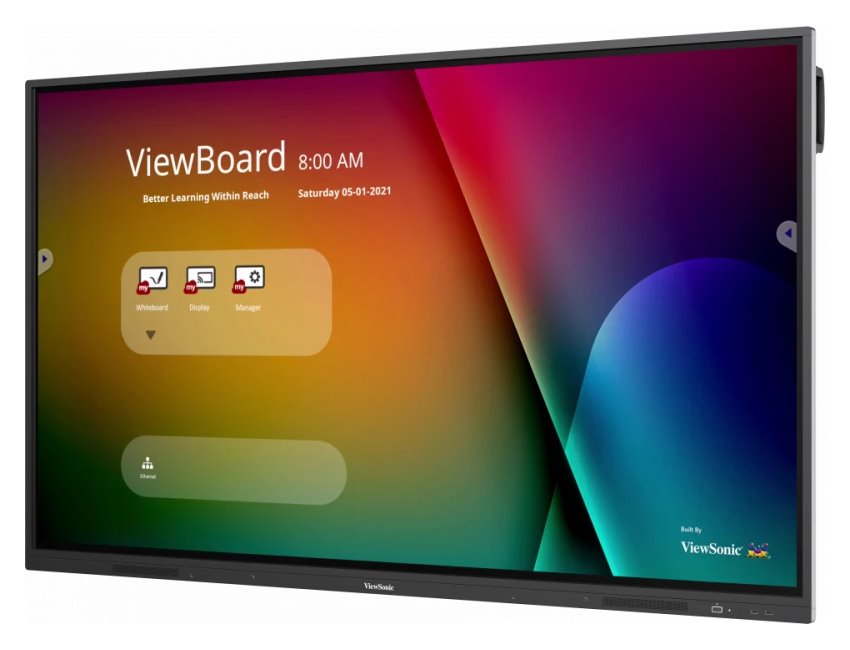

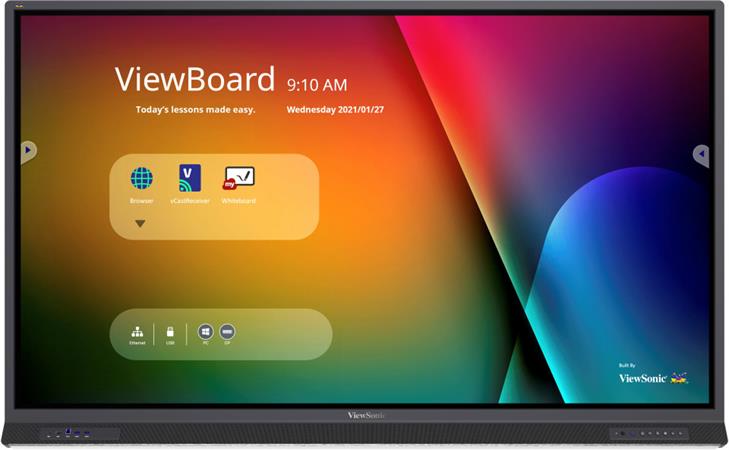

ViewBoard® 86" 4K Interactive Display
myViewBoard™ suite with whiteboard, wireless casting and remote device management
Front-facing dual speakers for better engagement ?
Pen-on-paper writing experience with Ultra Fine Touch Technology?
Quad Core CPU powered by Android 9.0 OS?
Low blue light certified

OVERVIEW
The ViewBoard® 32 series provides a comprehensive solution for schools and teachers looking to deliver more interactive and engaging lessons. The 4K UHD display features bonding technology for clearer colours and less glare. A 20-point touchscreen interface allows users to collaborate naturally either with a finger or one of the ViewBoard styluses. The built-in access to the myViewBoard suite brings together all of the hardware with a seamless software integration. ? The display also features Ultra Fine Touch Technology that delivers a paper-like writing experience with instant response and high accuracy, while dual-tip pen support allows you to simultaneously write or draw with two different colours. Users will also enjoy additional connectivity via the SmartPort™ USB and multi I/O ports, including HDMI/VGA, when looking to connect other devices for further classroom support. ? The included myViewBoard digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools including simple, wireless casting capability with secure single sign-on, innovative collaboration tools, easy conversion of common files, and much more. Additionally, myViewBoard Manager offers a single-point management system capable of simultaneously controlling multiple displays.


SPECIFICATIONS

Display
Panel Size: 86"
Panel Type: TFT LCD Module with DLED Backlight
Display Area (mm): 1895.04(H) x 1065.96(V)mm (85.6” diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colours: 1.07B colours (10bit)
Brightness: 350 nits (typ.)
Contrast Ratio: 4000:1
Response Time: 6.5ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours (Min)
Surface Treatment: Hardness: 9H Anti-glare coating
Orientation: Landscape
Platform
Processor: ARM quad-core Cortex-A55
RAM: 2GB DDR4
Storage: 16GB
Touch
Type/ Tech: Ultra Fine Touch Technology
Touch Point: 20 points touch, 2 points writing
INPUT
HDMI: 2.0 x2 (3840x2160 @60Hz)(HDMI2 port support ARC function)
RGB / VGA: x1
Audio: x1 (PC audio in)
RS232: x1
OPS: x1 (Optional Intel Standard OPS)
WiFi: x1 (Optional VB-Wifi-002)
OUTPUT
Audio: x1 (Earphone out)
LAN
RJ45: x1
USB
Type A: USB2.0 Front x2 (SmartPort™ USB); Rear x2
Type B: x1 for HDMI/VGA touch
SPEAKERS
10W x 2 subwoofers
Top Camera Plate
Yes
Embedded OS
Android 9
Bundle Software
Basic Annotation Software: myViewBoard Whiteboard
Pro Annotation Software: myViewBoard Whiteboard for Windows (Embedded in optional Windows Slot-in PC)
Wireless Presentation: myViewBoard Display
Special Features
All-in-one USB port: Front “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC
Light Sensor: Yes
Power
Voltage: 162-240VAC +/- 10%
Consumption: On: 314W (typ.) / Off: <0.5W
ERGONOMICS
Wall Mount (VESA® ): 800x600
OPERATING CONDITIONS
Temperature (o C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 1957×1160×87 mm / 77x45.7x34.2 inch
Packaging (inch / mm): 2112×280×1283 mm / 83.1x11x50.5 in
WEIGHT
Net (lb / kg): 66.7kg/147lb
Gross (lb / kg): 84.2kg/185.6lb
REGULATIONS
BIS, CB, CE
PACKAGE CONTENTS
1. Power cable (3 meters) / 2. Remote control / 3. USB cable (3 meters) / 4. Touch pen x 2 / 5. Quick start guide / 6. RS232 adaptor / 7. Clamp x 5 / 8. Webcam plate / 9. Screw x 8 / 10. HDMI cable (3 meters)
Compatible Slot-in PC
VPC12-WPO/VPC25/VPC2C/VPC27
