Popis produktu:

VB-SEN-001

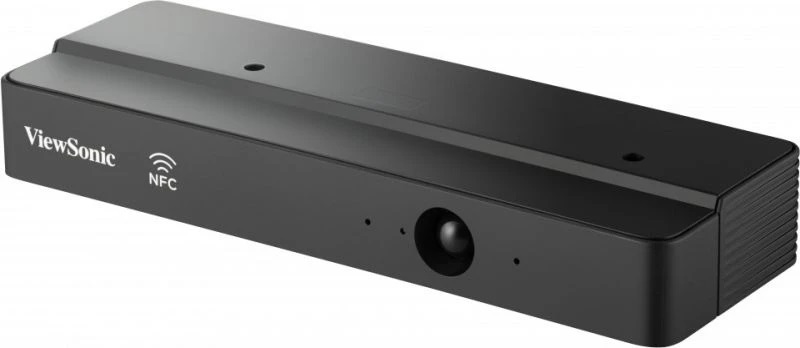

ViewSonic 6-in-1 Smart Sensor
Monitor temperature, humidity levels, and air quality to maintain optimal learning conditions
Energy-saving automatic wake up of the ViewBoard when people enter the room
Unlock the ViewBoard with an NFC card to ensure secure access
Powered by the ViewBoard via USB, for less cable clutter

OVERVIEW
The 6-in-1 Smart Sensor VB-SEN-001 is an accessory module for the ViewBoard IFP50-5 and IFP33 Series that provides smart classrooms with comprehensive conditions monitoring tools. Equipped with multiple sensors, it measures the CO2 and PM2.5 levels, temperature, and humidity to ensure optimal learning conditions at all times. The device provides extended interactive whiteboard access possibilities with advanced detectors and PIR technology that automatically wakes up the interactive whiteboard when people are in the room, and an NFC chip reader to restrict access to authorized personnel. The 6-in-1 Smart Sensor is powered by the ViewBoard via USB, eliminating the need for an additional adapter and maintaining a clutter-free learning space.

Maintain the Best Learning Conditions
The VB-SEN-001 Smart Sensor measures the room's humidity, temperature, particulate matter, and CO2 levels in real-time. This information is displayed on-screen and can be accessed and exported via the dedicated dashboard for further analysis, enabling educators to maintain an optimal learning environment at all times.

Save Energy with Smart Sensor and PIR Technology
Start your lesson immediately after entering the classroom. The Smart Sensor's advanced detectors and PIR technology wake up the ViewBoard when detecting movement within a 7-meter radius, allowing the teacher to focus on their class while being more energy-efficient.

Manage Access Securely
Improve access management and ensure that the ViewBoard is not used inappropriately. The VB-SEN-001 Smart Sensor allows you to unlock the interactive whiteboard by swiping a work badge or any registered NFC card, enhancing security and preventing unauthorized use.

SPECIFICATIONS

PIR Sensor
Detection Range: 0-7M
Detection Angle: 0-5m, -40° to +40° (80°) ;
5-7m, -10° to +10° (20°)
Humidity
Accuracy: ±5%
Range: 5%RH to 95%RH
Temperature
Accuracy: ±2°C
Range: -20°C to 85°C
NFC
Operation Mode: Reader / Writer
Detecting Distance: 3-5cm
Supporting ISOs: 15693 @13.56MHz and 14443 @13.56MHz
PM 2.5
Detection Range: 0-1000µg/m3
VOCS
Response Time: <2S
Detecting Range: 400-29000ppm
USB
Type B: USB B type (2.0)
Power
Voltage: 5V / 0.5A
Supported OS
Android 11
Dimensions (L × W × H)
Physical (inch / mm): 8.1 x 2.7 x 1.24 in / 206 x 69 x 31.7mm
Weight
Net (lb / kg): 0.4 lb/0.183kg
Operating Conditions
Temperature: 0? ~ 40?
Humidity: 10% ~ 90% RH Non-Condensing
Storage Conditions
Temperature: -20°C ~ 60°C
Humidity: 10% ~ 90% RH
Package Content
1.USB type-B to type-A cable
2.Screws
3.Cable Clips
4.Quick Start Guide
