Popis produktu:

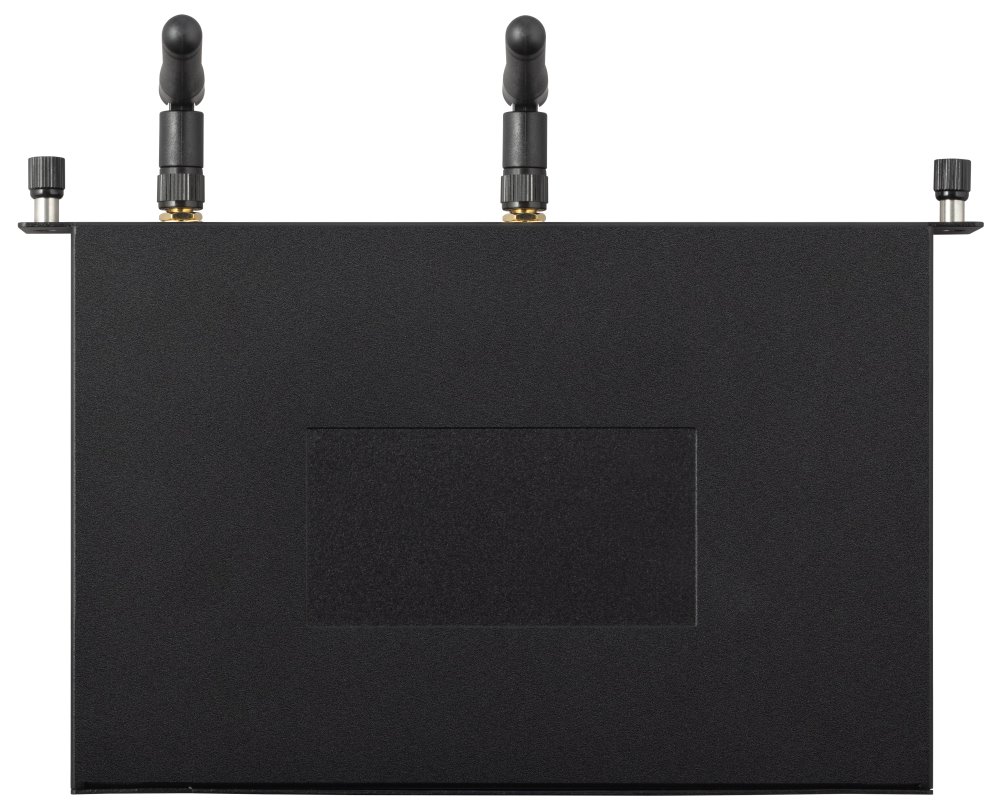

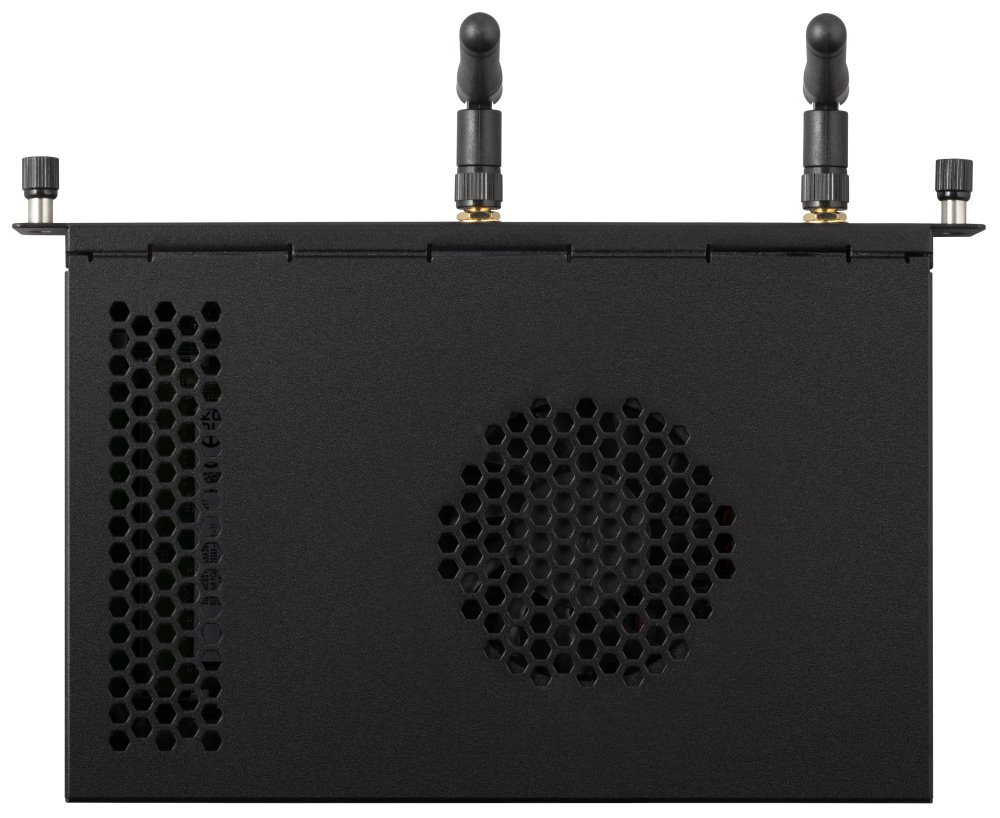

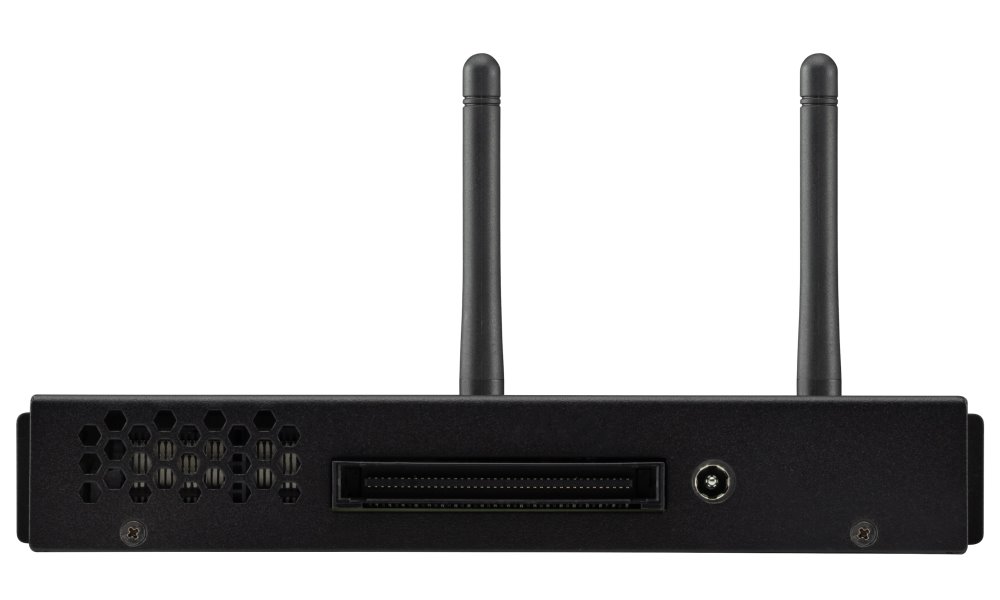

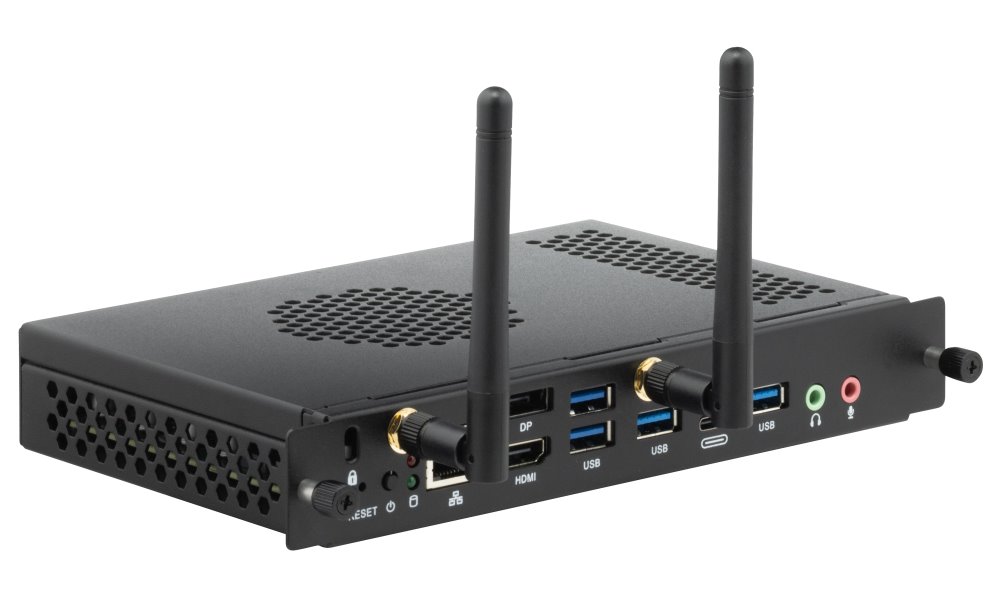

VPC35-W53-G1
Slot-in PC for ViewBoard®
Windows 11 Pro
Ideal Integrated Solution for ViewBoard® Interactive Displays and Presentation Display
Powerful Intel® 12th Core Processors? embeded TPM2.0
Improved System Stability, Security, & Thermal Control

POPIS
Seize the power to get more done when you sync your ViewBoard® interactive displays and Presentation Displays with the ViewSonic VPC35-W53-G1 slot-in PC. Integrated with exceptional performance from Intel® processors, 16GB DDR4 memory, and 256GB SSD storage, the experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.1, and a range of ports, including 4K HDMI, DP1.4, USB 3.0, and Gigabit LAN RJ45 for faster workflows.

Tap into a productivity powerhouse
Boost the interactive whiteboard with remarkable power and lightning-fast speed from Intel® 12th Gen Core™ processors, letting you zip through lessons and tutorials effortlessly. Integrated with Intel® WiFi 6 and Bluetooth 5.1, experience ultra-fast, versatile connectivity to facilitate remote and hybrid classes with ease.

Stability in every lesson
Teach and present without any worry about sudden disruptions. Built with the FinchGuard, a Watchdog timer software, the VPC35-W53-G1 intuitively detects and recovers from system malfunctions seamlessly to maximize productivity.?

Stay cool and blaze through classes?
Equipped with a thermal control circuit and noise reduction capabilities, the fan within the device will dissipate much more heat in quieter acoustics of under 35 decibels for more conducive and longer lessons. ?

Boot up with total security
Prevent malicious software and unwanted operating systems from loading during start-up with the optional Secure Boot in the BIOS setting. This stops existing errors from loading and keeps unauthorized personnel from accessing PC settings. ?

Built-in myViewBoard Software
The VPC35-W53-G1 seamlessly integrates with myViewBoard software, offering teachers a wide range of interactive lesson and presentation possibilities. Effortlessly prepare, save, and share class materials across various platforms in an instant.

SPECIFIKACE

Software
Operační systém: Windows 11 Pro
Jádro
CPU: Intel® Core™ i5-1240P 1.7G Turbo boost 4.4G
Grafika: Integrated Intel® iris Xe Graphics (80EU)
Total Available Graphics Memory: 32GB
Max Resolution up to 7680x4320@60Hz (DP)
Paměť
Typ: DDR4 SO-DIMM
Kapacita: 16GB (Up to 32GB)
Úložný prostor
Rozměr: M.2 2280 (22 x 80 mm)
Kapacita: 256GB SSD
Rozhraní: PCIE and SATA 3

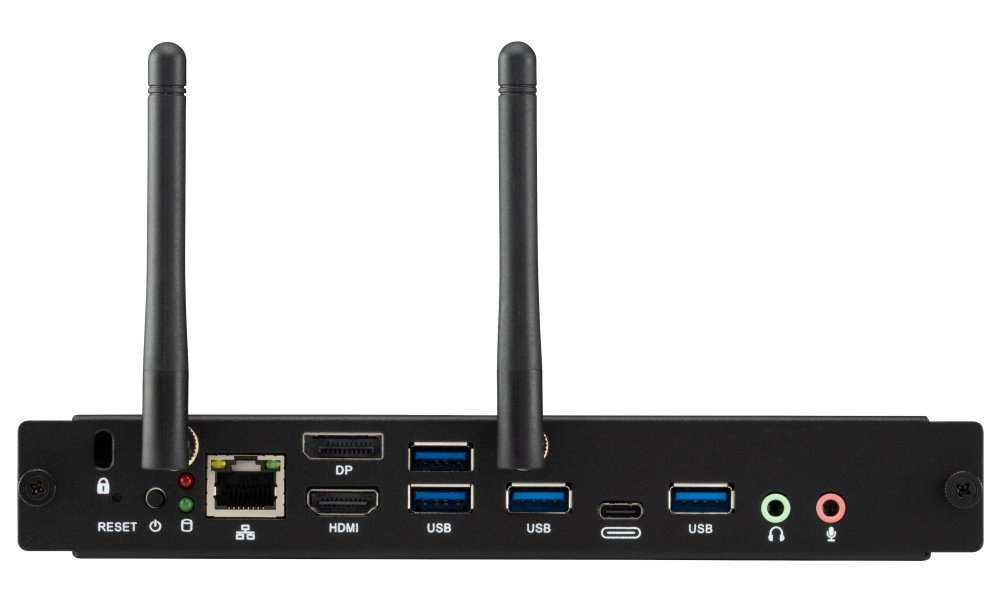

INPUT
MIC (Mikrofon): x1 (3.5mm Jack)
OUTPUT
DisplayPort: x1 (1.4 max. resolution 7860x4320@60Hz)
HDMI: x 1 (2.0 max, resolution 3840x2160@60Hz)
Audio: x 1 (Earphone Out 3.5mm)
LAN
RJ45: x1
Bezdrátové připojení / Bluetooth
Bezdrátové připojení / Bluetooth: Intel® Wi-Fi 6 AX200 802.11 a/b/g/n/ac/ax 2T2R + BT5.1
USB
Typ A: USB 3.0 x 4
Typ C: x 1 (data only)
Balíček softwaru
Balíček softwaru: myViewBoard for Window
Adobe Reader
BIOS Winflash tool
FinchGuard (Watch Dog)
Výkon
Napětí: DC 12-19V/ 8A
Spotřeba: 96 W (Max)
OPERATING CONDITIONS
Teplota (o C): -5~40°C
Vlhkost: 10% ~ 90% @ 40°C Non-condensing.
ROZMĚRY (Š x V x H)
Fyzicky (palce / mm): 7.95 x 4.83 x 1.18 in / 202 x 122.6 x 30 mm
Balení (palce / mm): 10.51 x 7.56 x 2.83 in / 267x 192 x 72mm
WEIGHT
Čistá hmotnost (lb / kg): 1.33lb/0.6kg
Hrubá hmotnost (lb / kg): 2.14 lb/0.97kg
REGULATIONS
REGULATIONS: cTUVus, FCC/ICES003, FCC ID/ ICID, TPCH DoC, Packing waste, CA65 DoC, CE EMC, (LVD or CB,CE R&TTE, ErP, RoHS Green BOM & DoC,REACH SVHC,WEEE
OBSAH BALENÍ
OBSAH BALENÍ: 1. VPC OPS
2. Quick Start Guide
