Popis produktu:

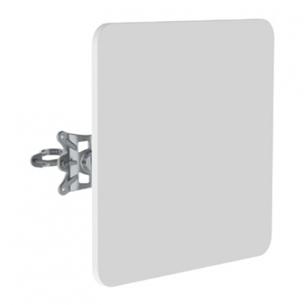

Venkovní jednotka Deliberant APC Mach 5 určená zejména pro Point To Point nebo pro Point To Multi Point řešení v pásmu  5GHz. Jednotka disponuje duální polarizací panelové antény se ziskem 23 dBi. MiMo technologie je zde samozřemostí plus klasické operační mody jako je AP, Client a WDS. Podrobnou specifikaci naleznete v datasheetu který je u produktu ke stažení.

Parametry a specifikace:

Bezdrátová část
WLAN standard IEEE 802.11 a/n, iPoll (proprietary)
Radio mode: MIMO 2x2
Operační mody: Access point (auto WDS), Station, Station WDS, iPoll Access Point, iPoll Station
Frekvence 5.1 - 5.9 GHz (country dependent - FCC 5.745 to 5.825 GHz)
Transmit power Up to 29 dBm (country dependent)
Receive sensitivity Varying between -95 and -75 dBm depending on modulation
Channel size 20, 40 MHz
Modulation schemes 802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
Data rates 802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps
                802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
Error correction FEC, Selective ARQ,
Duplexing scheme Time division duplex
Anténa: dualní polarizace, panelová, zisk 23 dBi

Síťová část
Interface: 10/100 Base-T, RJ45 s vestavěnou přepěťovou ochranou
Operační mody: Bridge, Router
WAN Static IP, DHCP client, PPPoE client
NAT Routing w/ or w/o NAT
Static routing Supported
DHCP Client, Server, Relay
Port forwarding Supported
VLAN Supported for management and data

Softwarová část
General Ability to define/limit frequency, channel width, EIRP, modulation
Advanced wireless functionality ATPC (automatic transmit power control), DFS 3, auto-channel, auto-modulation
Operating mode Router, Bridge
Wireless operating modes AP auto WDS, Station, Station WDS, Virtual radios (VSSID), iPoll access point, iPoll client
Wireless security WPA/WPA2 Personal, WPA/WPA2 Enterprise, WACL, User isolation, UAM (web portal authentication)
Wireless QoS WMM
WAN protocols Static IP, DHCP client, PPPoE client
Network NAT, static routing, firewall, port forwarding, VLAN, traffic shaping
Services DHCP server, SNMP server, NTP client, Alerts, Remote syslog, Wireless and
Ethernet statistics, bandwidth limiting
Management: HTTP(S) GUI, SSH CLI, SNMP read, WNMS, troubleshooting file, reset via reset tool
Nástoje: Site survey, Link test, Antenna alignment, Ping, Traceroute, Spectrum analyzer
System configuration: User-friendly web GUI, Command line via SSH, centralized Wireless Network, Management System, reset to defaults via special ICMP packet
System monitoring:  SNMP v1/2c/3 server, Syslogs, system alerts via e-mail and SNMP trap

Ostatní
Rozměnry: délka 335 mm (13 ‘’), šířka 335 mm (13 ‘’), výška 90 mm (3.5 ‘’)
Hmotnost:t 3.3 kg (7.3 lb)
Sítový adaptér:12 - 48 V DC passive PoE
Napájení:100 – 240 VAC via included adapter
Spotřeba energie: 6.5 W
Provozní teplota: -30°C až 75°C
