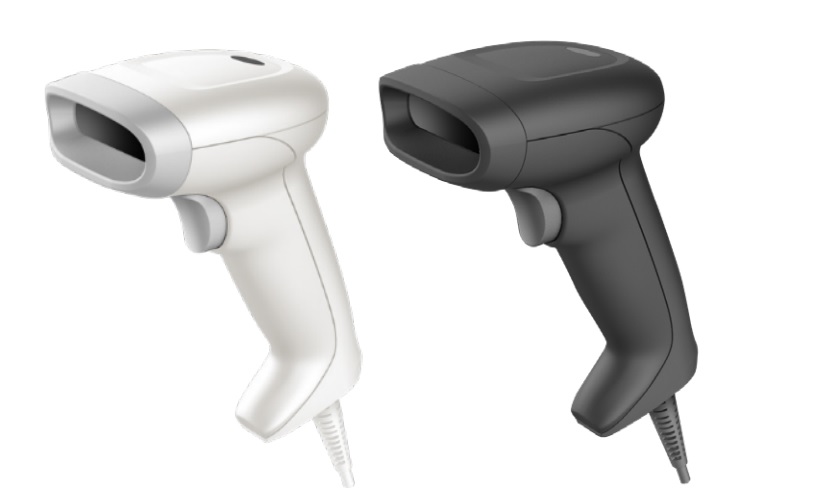

Affordable 2D Area Imager Scanner MECHANICAL/ELECTRICAL Dimensions (L x W x H): 72.5mm×125mm×154mm (2.85 in 4.92 in 6.06 in) Scanner Weight: 130 g (4.58 oz) Input Voltage: 5 ± 0.5VDC Operating Power: 2 W (400 mA @ 5V DC) Standby Power: 0.55 W (110 mA @ 5V DC) Host System Interfaces: USB, RS-232 ENVIRONMENTAL Operating Temperature: 0°C to 50°C (32°F to 122°F) Storage Temperature: -40°C to 60°C (-40°F to 140°F) Electrostatic Discharge (ESD) (Scanners and Cradles): ±8 kV indirect coupling plane, ±15 kV direct air Humidity: 0% to 95% relative humidity, non-condensing Tumble Spec: 250 0.5 m (1.6 ft) tumbles (impacts) Drop: Engineered to withstand 1.2m 2times drop to concrete Environmental Sealing: IP40 Light Levels: 0 to 100,000 lux (9,290 foot-candles) SCAN PERFORMANCE Scan Pattern: Area Image (1280 x 800 pixel array) Motion Tolerance: up to 75 cm/s for 13 mil UPC at optimal focus Scan Angle: *Horizontal: 48° nominal; *Vertical: 30° nominal Roll, Pitch, Skew: ±180°, ±60°, ±65° Print contrast: 25% Decode Capabilities: Reads standard 1D, PDF, 2D, and DotCode symbologies Note: Decode capabilities dependent on configuration. Warranty: 3-year factory warranty
