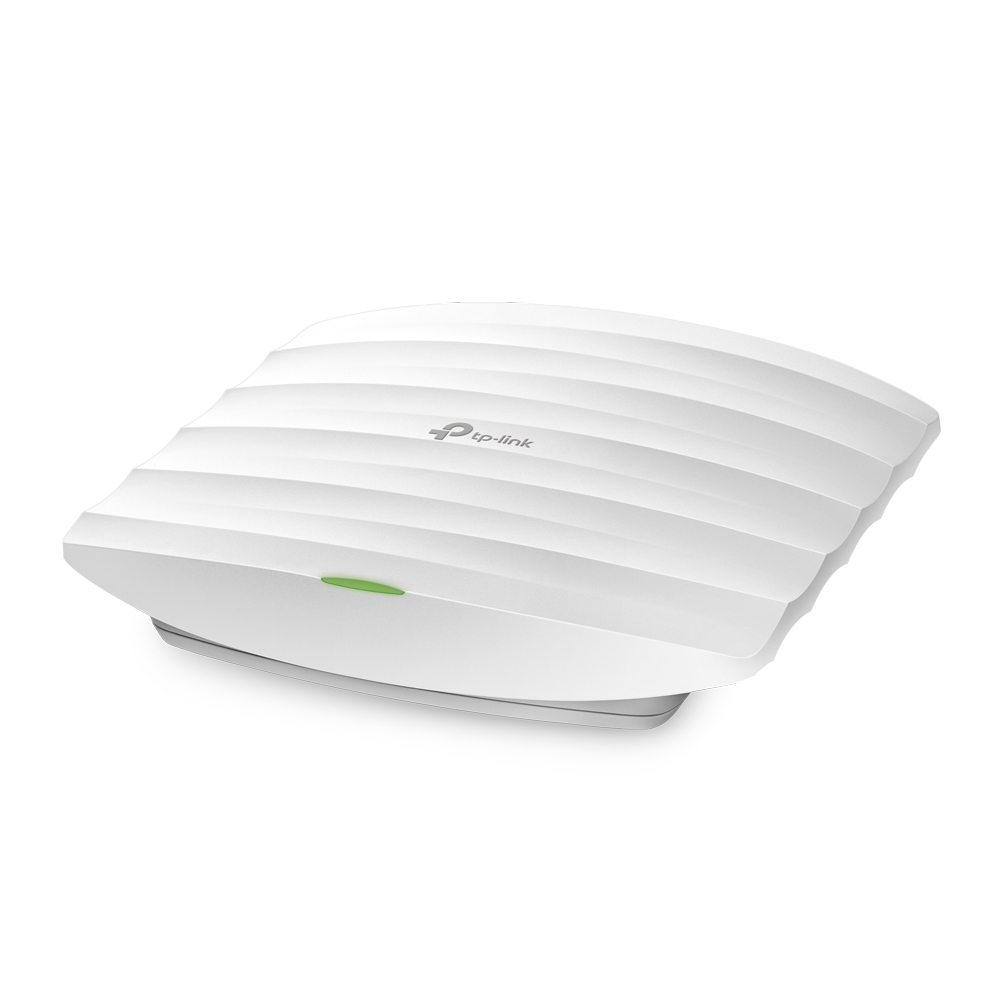

300Mbps Wireless N Ceiling Mount Access Point: EAP115 300Mbps Wireless N Ceiling Mount Access Point, Qualcomm, 300Mbps at 2.4GHz, 802.11b/g/n, 1 10/100Mbps LAN, 802.3af PoE Supported, Centralized Management, Load Balance, Rate Limit, Captive Portal, Cluster Mode, 2 Internal Antennas, Ceiling/Wall Mount Krátké představení Omada SDN: https://www.youtube.com/watch?v=Veb8-o8EE6U PŘEHLED *Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs *The user-friendly Cluster Mode allows manage up to 24 (EAP115) without requiring any extra hardware or software *Supports Power over Ethernet (802.3af) for convenient and affordable installation *Simple mounting design for easy attachment to a wall or ceiling *Captive portal provides one convenient method of authentication for Wi-Fi guests *Enterprise class Wi-Fi security help to decrease network security threats *Multi-SSID divides multiple wireless networks for different user types TECHNICKÁ SPECIFIKACE Interface * Fast Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE) Button * Reset Power Supply * PoE or external 12VDC/1.0A power supply Power Consumption * 5W Wireless Standards * IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Dimensions ( W x D x H ) * 180*180*47.5mm Antenna Type * Internal 2* 3dBi Omni Mounting * Ceiling /Wall Mounting (Kits included) Physical Security Lock * Kensington Lock Slot Watch Dog * Yes WIRELESS FEATURES Wireless Standards * IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Frequency * 2.4-2.4835GHz Signal Rate * 11n: Up to 300Mbps(dynamic) * 11g: Up to 54Mbps(dynamic) * 11b: Up to 11Mbps(dynamic) Reception Sensitivity * 300M: -71dBm@10% PER * 150M: -75dBm@10% PER * 54M: -78dBm@10% PER * 11M: -93dBm@8% PER * 6M: -92dBm@10% PER * 1M: -96dBm@8% PER Wireless Functions * Multiple SSIDs (Up to 8 SSIDs) * Enable/Disable Wireless Radio * Automatic Channel Assignment * Transmit Power Control (Adjust Transmit Power on dBm) * QoS(WMM) * Rate Limit * Reboot Schedule * Wireless Schedule * Wireless Statistics based on SSID/AP/Client Wireless Security * Captive Portal Authentication * Access Control * Wireless Mac Address Filtering * Wireless Isolation Between Clients * SSID to VLAN Mapping * Rogue AP Detection * 802.1X Support * 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK Transmission Power * CE: * <20dBm * FCC: * <26dBm * MANAGEMENT Auranet Controller Software * Yes Cluster Mode * Yes Email Alerts * Yes LED ON/OFF Control * Yes Management MAC Access Control * Yes SNMP * v1,v2c System Logging Local/Remote Syslog * Local/Remote Syslog Telnet * Yes Web-based Management * HTTP/HTTPS OTHERS Certification * CE, FCC, RoHS Package Contents * 300Mbps Wireless N Ceiling Mount Access Point EAP115 * Power Adapter * Mounting Kits, * Installation Guide System Requirements * Microsoft Windows 10/8/7/Vista/XP Environment * Operating Temperature: 0°C~40°C * Storage Temperature: -40°C~70°C * Operating Humidity: 10%~90% non-condensing * Storage Humidity: 5%~90% non-condensing
