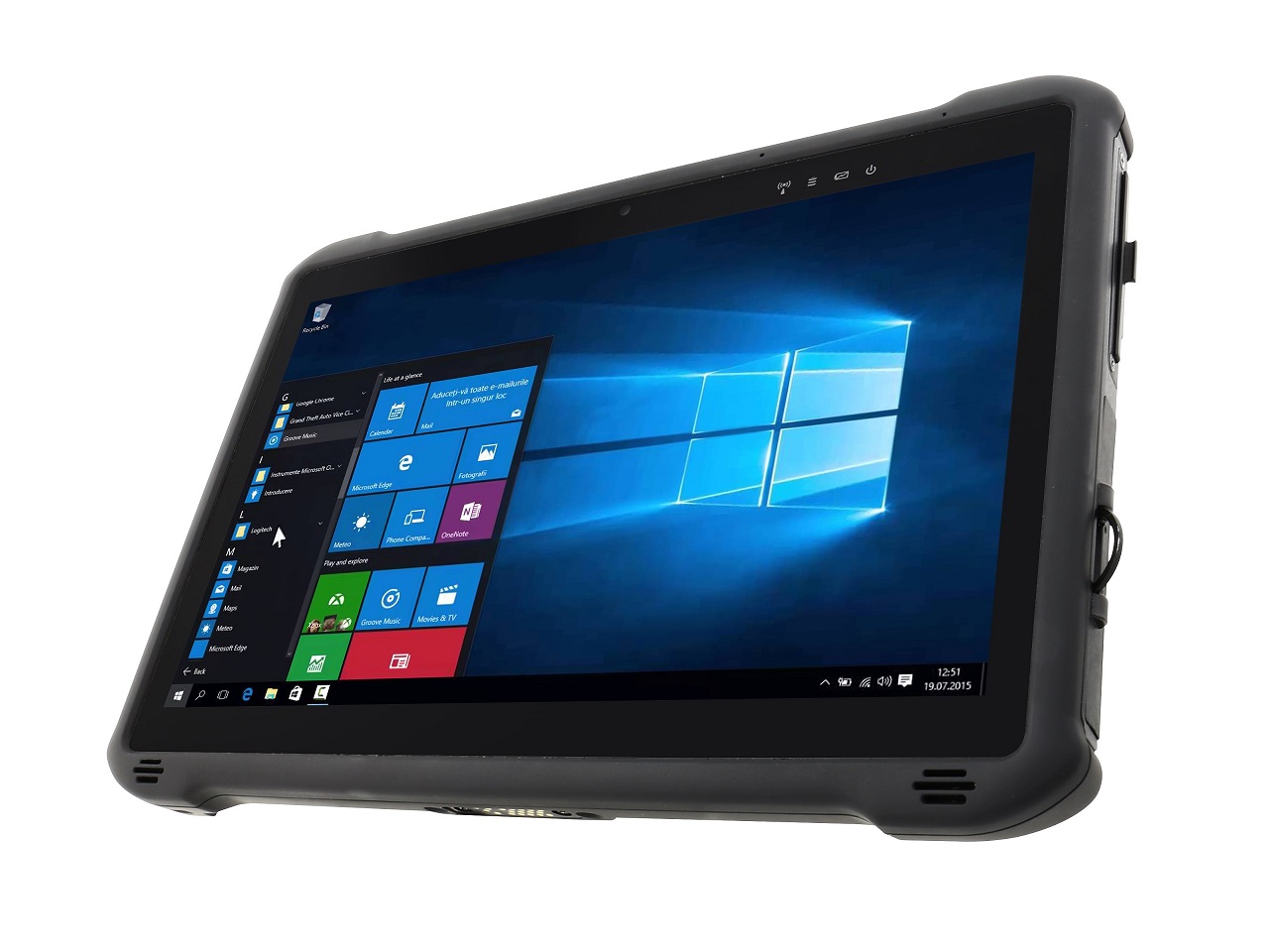

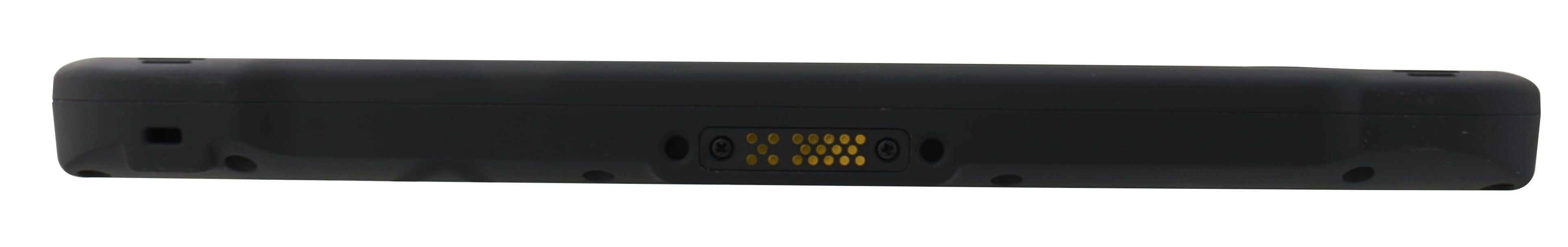

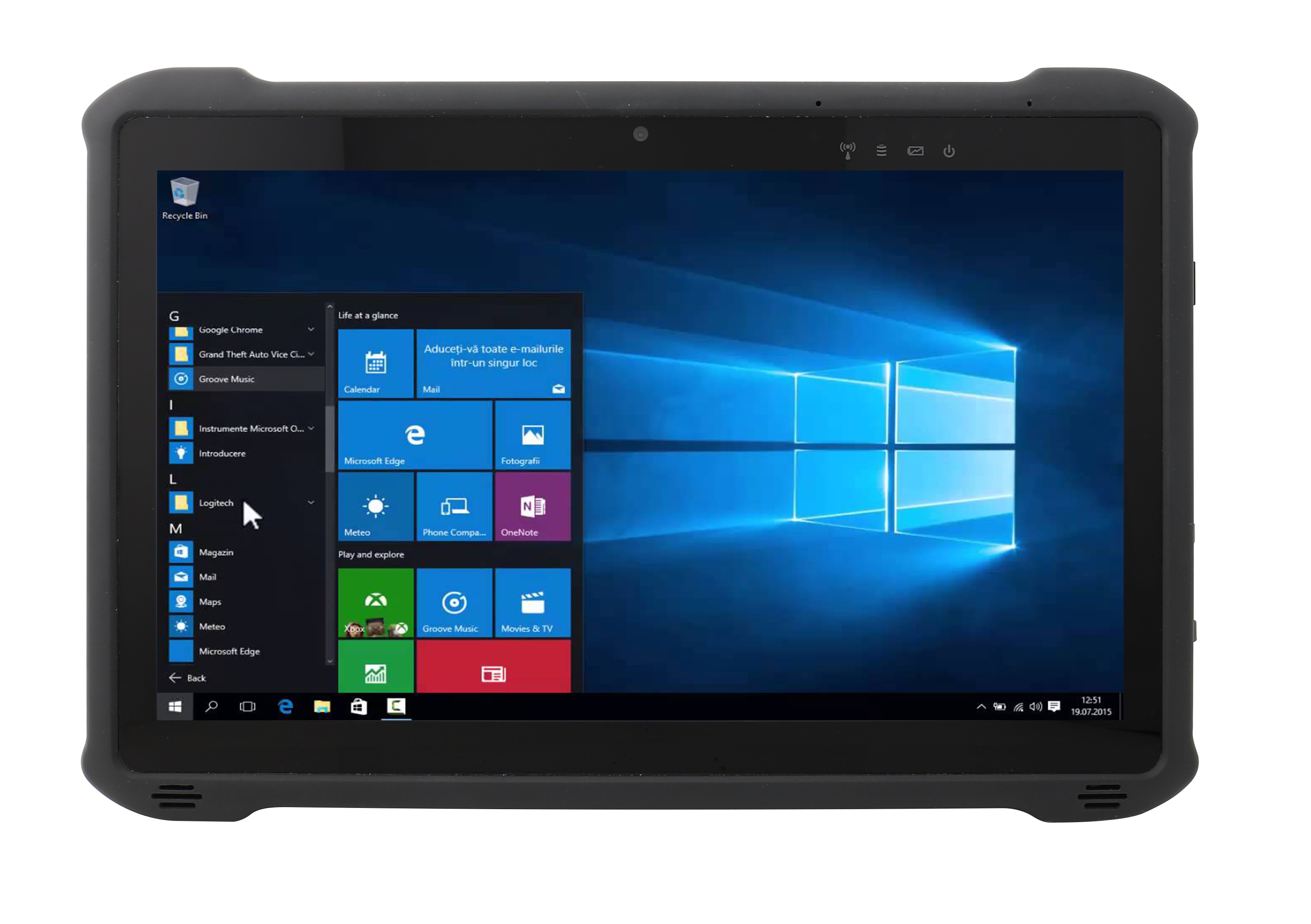

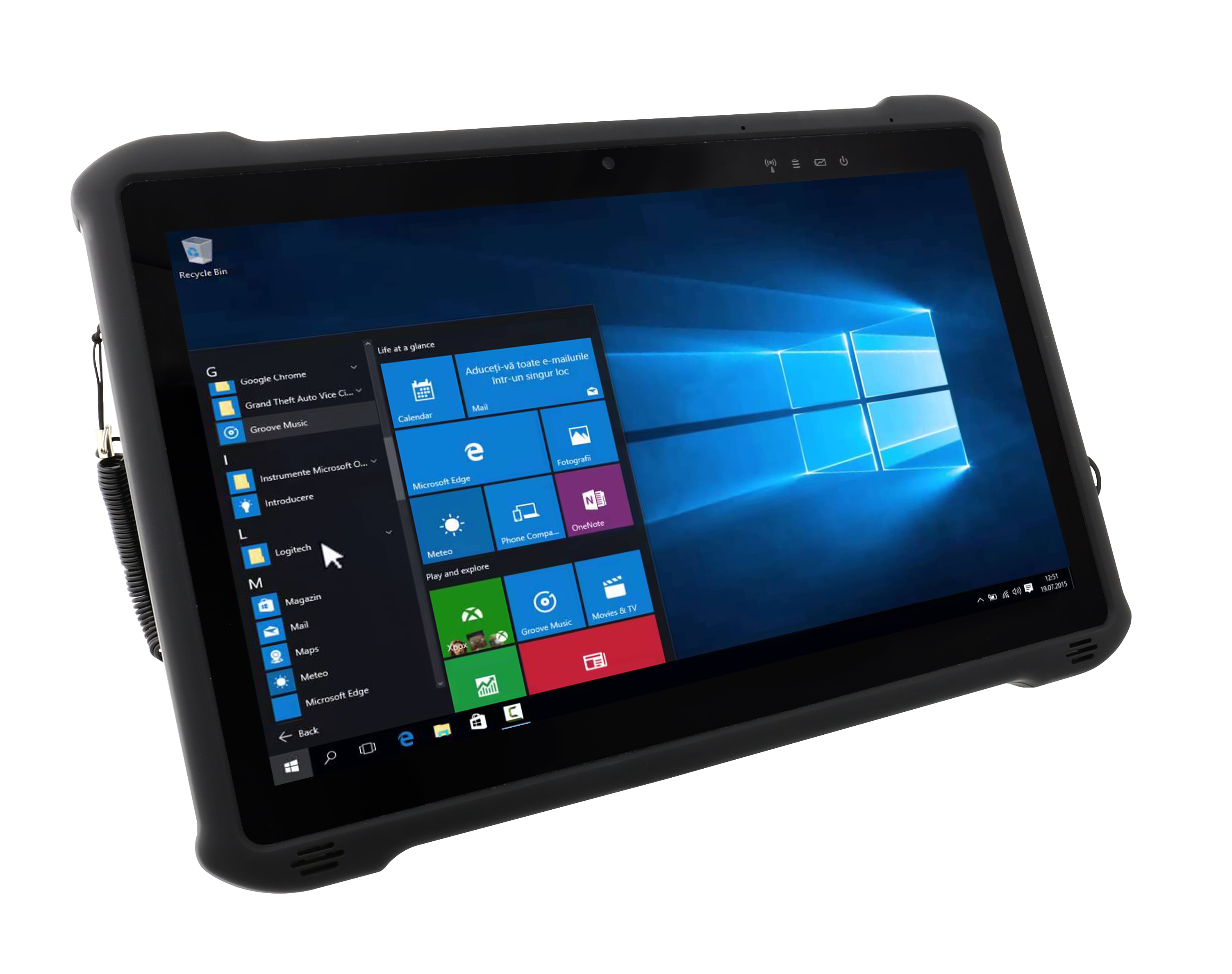

Display Specifications Size 11.6-inch display with LED Backlight Resolution 1920 x 1080 Full HD Contrast Ratio 1000:1 Panel Brightness 850 nits with direct optical bonding for sunlight readability Viewing Angle 89/89/89/89 Touch Projected capacitive multi-touch Technology • Anti-glare technology (Default) • Automatic screen rotation System Specification CPU Intel® Pentium® N4200 1.1GHz (Turbo up to 2.5 GHz) System Memory 4GB LPDDR4 RAM 1 (up to 8GB) Storage 128GB SSD (options up to 512GB) Additional storage available with micro SDXC card slot Graphics Intel® HD Graphics 504 Operating System Windows 10 IoT Enterprise (64 bit) Sensors Light sensor/ g-sensor / Gyro / E-compass Wireless Communication WLAN 802.11 a/b/g/n/ac WiFi Bluetooth Bluetooth 5.0 GNSS GPS, GLONASS WWAN Optional 4G LTE Interface Docking Connector 1 x 19-pin docking connector HDMI 1 x micro HDMI USB 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type C) 2 Power Input 1 x Power Jack Micro SD 1 x Micro SDXC slot Audio 1 x Audio combo connector (Mic in or Line Out) LAN 1 x RJ45-10/100/1000 GigaLAN port (Optional) Expansion Port 1 x Expansion connector for USB 2.0/ Full RS232 (Optional) Micro SIM 1 x Micro SIM card slot mini PCIe 1 x Mini PCIe for WWAN Module Keyboard and Input Physical Buttons 1 x Power; 3 x function keys Touch 10-point multi-touch, supports Rain / Glove / Stylus Modes Audio Microphone Built-in dual digital mic with noise cancellation Speaker 2 x 1 watt front-facing speakers Cameras Front Camera 2MP front camera Rear Camera 8MP rear camera with autofocus and LED light Data Capture Integrated Optional 1D/2D Barcode Reader Optional HF RFID reader 13.56 MHz Optional Smart Card Reader Add-on Module Optional add-on UHF RFID Reader or Smart Card Reader Security Function Security • Trusted Platform Module (TPM) 2.0 • Kensington Lock Mobile Device Mgmt. SOTI Mobicontrol compatible Certificate • CE, FCC Mechanical and Environment Dimensions (W x L x H) 300.67 x 201.97 x 22.5 mm Weight 1.35 kg Operating Temperature -20°C to 60°C (AC mode), -10°C to 50°C (Battery mode) Storage Temperature -30°C to 70°C Operating Humidity 10% to 90% RH, non-condensing Shock MIL-STD-810G Method 516.6 Procedure I Vibration MIL-STD-810G Method 514.6 Procedure I Drop MIL-STD-810G Method 516.6, 4 ft to concrete IP Rating IP65 certified, dustproof and waterproof Power Management Power Input 19V DC AC Adapter 100-240V, 50-60Hz (19V DC) Battery Hot-swappable 7.7V typ. 5900 mAh Li-Polymer Battery (2S1P) Optional 7.4V typ. 10280 mAh Li-Polymer Battery (2S2P) Battery Operating Time Std. Battery: 8 hours

Standard Accessories • Adapter and Power Cord • Capacitive Stylus • Standard Battery

Optional Accessories • Desk Dock • Vehicle Dock • Vehicle Charger • Battery Charger • Smart Card Reader • UHF RFID Reader • High Capacity Battery • Hand Strap • VESA Mount Kit • Shoulder Strap • Carry Bag • Micro HDMI Cable • USB-C to Ethernet Adapter • USB-C to RS232 Adapter • USB-C to USB-A Hub
