Popis produktu:

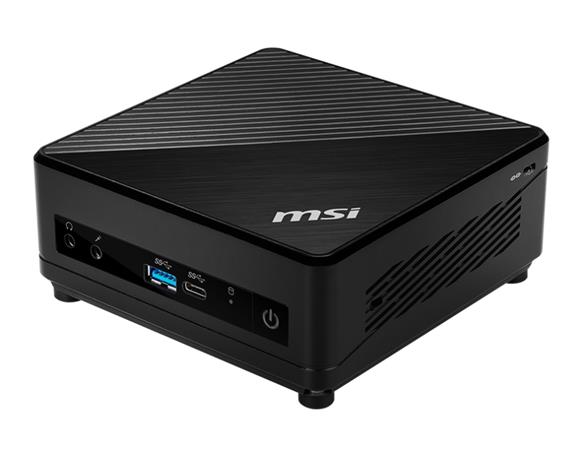

MSI PC Cubi 5 10M-427EU /Intel i3-10110U/8GB/256GB SSD/Wifi/USB/Black/ Win 11 Pro

MKT Spec Cubi 5 10M-427EU
Website Name Cubi 5 10M
Color ID1/Black-Black-Black
System/Barebone System
Processor
CPU Core Name COMET LAKE
CPU Socket BGA-1528pin
CPU Number Intel Core i3-10110U
CPU Clock 2.1GHz
CPU Cores 2
TDP 15W
CPU Cooler
Max Turbo Frequency up to 4.10 GHz
Cache 4 MB Intel® Smart Cache
Threads 4
Chipset
Chipsets N/A
MB Ori. MKT Name N/A
Graphics
GPU1 Vendor N/A
GPU1 MKT Name N/A
GPU1 Number
GPU1 VRAM Size
VGA I/O Port N/A
VGA MKT Name N/A
Memory
Memory Size 8GB(8GB*1)
Memory Type DDR4 SDRAM
Memory Speed 1333(2666)MHz
Module Type SO-DIMM
Memory Slot 1
Memory Slot(Total) 2
Memory Slot(Free)
Max Capacity Max 64GB
Storage
SSD Interface PCIe GEN3x4 NVMe
SSD Form Factor M.2-2280 M-KEY
SSD Config 256GB*1
SSD Size 256GB
HDD1 Interface N/A
HDD1 Form Factor N/A
HDD1 Size N/A
HDD1 RPM N/A
ODD(Type) N/A
ODD Height N/A
ODD Type
mSATA slots N/A
mSATA slots(Total) NA
mSATA slots(Free)
M.2 slots 1
M.2 slots(Total) 1
M.2 slots(Free)
2.5" Drive Bays N/A
2.5" Drive Bays(Total) 1
2.5" Drive Bays (Free)
3.5" Drive Bays N/A
3.5" Drive Bays(Total) NA
3.5" Drive Bays(Free)
Communications
LAN Intel I219-V
WLAN INTEL/AX201.NGWG.NVW
WLAN Version 802.11ax 2x2+BT
BT Version 5,2
VESA
VESA size 100 x 100 mm
Audio
Audio Chipset Realtek ALC887
Audio Type 2.1 Channel HD Audio
Speaker NA
I/O Ports (Front)
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
USB 3.2 Gen 2 Type C NA
USB 3.2 Gen 2 Type A NA
USB 3.2 Gen 1 Type C 1
USB 3.2 Gen 1 Type A 1
USB 2.0 Type A NA
USB 2.0 Type C NA
Thunderbolt N/A
Audio Mic-in 1
Audio Headphone-out 1
Audio Headphone-out (HiFi/SPDIF) NA
Mic-in/Headphone-out combo NA
I/O Ports (Rear)
USB 3.2 Gen 2x2 Type C (R) NA
USB 3.2 Gen 2x2 Type A (R) NA
USB 3.2 Gen 2 Type C (R) NA
USB 3.2 Gen 2 Type A (R) NA
USB 3.2 Gen 1 Type C (R) NA
USB 3.2 Gen 1 Type A (R) 2
USB 2.0 Type C (R) NA
USB 2.0 Type A (R) 2
Thunderbolt (R) N/A
RJ45 1
WiFi Antenna N/A
Card Reader NA
VGA out NA
VR-Link NA
HDMI out 1x (v1.4)
DP out 1x (v1.2)
mini DP in N/A
mini DP out NA
PS/2 NA
COM Port NA
DVI-D out NA
Audio jack NA
S/PDIF NA
Flash BIOS Button N/A
Power
Power 65W
Power Certification N/A
Formfactor N/A
Type ADAPTOR
Operating Systems
OS PROFESSIONAL(WIN 11 PRO OLC OA3)
OS Type W11P
Operating Systems Windows 11 Pro
Pallet
Pallet Q'ty (by air) 300
Pallet Q'ty (by sea) 200
Dimension&Weight
Product Dimension (WxDxH) (mm) 124 x 124 x 53.7
Product Dimension (WxDxH) (inch) 4.88 x 4.88 x 2.11
Inside Carton Dimension (WxDxH) (mm) 205 x 220 x 94
Inside Carton Dimension (WxDxH) (inch) 8.07 x 8.66 x 3.7
Outer Carton Dimension Standard (WxDxH) (mm) 221 x 506 x 469
Outer Carton Dimension Standard (WxDxH) (inch) 8.7 x 19.92 x 18.46
Outer Carton Dimension with bundle item (WxDxH) (mm) N/A
Outer Carton Dimension with bundle item (WxDxH) (inch) N/A
Weight (Net kg) 0,55
Net Weight (lbs) 1,21
Weight (Gross kg) 1,4
Gross Weight (lbs) 3,09
Liter 0,66
Pint 1,39
Warranty
Warranty 24months
SW Feature - 3rd Party Royalty
Nahimic Sound effect N/A
HDMI Royalty Y
Mechanical and Environmental
Operating, Storage Temperature 0° C ~ 35° C ; -20° C ~ 60° C
Operating, Storage Humidity 0% ~ 85%;0% ~ 90%
Regulatory Compliance FCC(Class B)
CB/CE
UL(CUL)
BSMI
VCCI
RCM(C-Tick)
Accessories
AC Adaptor 1
Power Cord 1
Warranty Card 1
Quick Guide 3
User Manual N/A
VESA Mount kit 1
