Popis produktu:

DSL Compliant
Comply G.993.2, G.993.5 (Vectoring), G.998.2 (PTM bonding), & G.998.4 (G.INP) Profile 8a, 8b, 8c, 8d, 12a, 12b, 17a
UPBO/DPBO
Seamless rate adaptation
Single End Loop Test (SELT)/Dual End Loop Test (DELT)
On-line reconfiguration
Impulse Noise Monitoring (INM)
Virtual noise
ADSL2+ fallback
ADSL G.992.1 (G.DMT)
ADSL2 G.992.3 Annex M
ADSL2+ G.992.5 Annex M
GPON Compliant
ITU-T 984.1
ITU-T 984.2
ITU-T 984.3
ITU-T 984.4
ITU-T 984.7
Dynamic bandwidth allocation for upstream bandwidth dynamic adjustment
Forward error correction
GPON encapsulation method fragmentation
GPON Type-B protection
Rogue ONT detection
Support up to 128 ONTs per PON port
Topology Protocols
ERPS
Ring/Tree/Star topology
STP/RSTP/MSTP
Link aggregation
Switch Function
IEEE 802.1q VLAN
IEEE 802.1ad VLAN stacking
VLAN translation 1:1
VLAN translation N:1
Jumbo frame
Mirroring by port
Mirroring by VLAN
Port isolation
Multicast
Multicast VLAN registration
IGMPv2 & v3, snooping & proxy
IGMP filter profile setting
IGMP fast leave
MLDv1 & MLDv2 snooping and proxy
Security
DHCP Relay agent
PPPoE IA
Static MAC
Drop packet by ACL
MAC limit per port
MAC filtering source/destination MAC
Storming control
Anti MAC spoofing
Prevent ARP spoofing
QoS
IEEE 802.1P
Ingress port rate limit
Egress port rate limit
Scheduling algorithm SP, SP+WFQ, WFQ
Limit packet rate by ACL
OAM&P
SNMP
In band management/Out-of-band management
CLI via console port/Telent/SSH
Web GUI
NetAtlas EMS

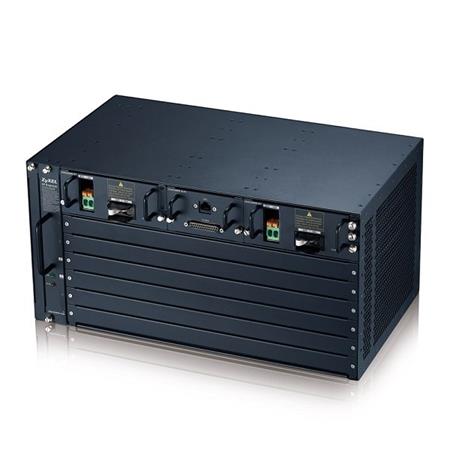

Chassis—IES5206M
6-slot rack mountable enclosure, 19" chassis
4 slots for VDSL, GPON, and GE line cards
2 slots for management and switch cards
1 slot for Vectoring card
2 DC power input modules for redundancy or one AC and one DC power input module for redundancy
One fan and dust filter module
One alarm module
Management Switch Card—MSC1240XA
Four 10G (SFP+) or four 1G uplink/subtending interfaces
One mini-RJ11 console port
One 10M/100M/1G out-of-band Mgmt interface
Management Switch Card—MSC1280XA
Eight 10G (SFP+) or eight 1G uplink/subtending interfaces
One mini-RJ11 console port
One 10M/100M/1G out-of-band Management interface
Gigabit Ethernet Line Card—GLC1440X-55A
Hot swappable 40-port active Gigabit Ethernet line card
20 open slots for Gigabit or Fast Ethernet SFP (1000/100BASE-FX/BX/LX/EX)
20 open slots for 40 ports Gigabit Ethernet C-SFP
One mini-RJ11 console
VDSL Line Cards—VLC1448X-51/VLC1448X-51S
Hot swappable 48-port vectored VDSL2 line card over POTS
Support G.993.5, G.998.4, G.993.2, G.994.1, G.997.1
Maximum transmission rate up to 100 Mbps/50 Mbps
One mini-RJ11 console port
Support VDSL2 profiles 8a, 8b, 8c, 8d, 12a, 12b and 17a
Support U0 band, customer PSD, RFI notch, single latency in PTM mode and INP
Support UPBO and DPBO, Reed Solomon and trellis coding
Support ADSL fall back with ADSL/ADSL2/ADSL2+ CPE in Annex A, J, M, L modes
GPON Line Card—OLC3416-42A
16 GPON SFP open slots compatible with class B+ and class C+ SFP
One mini-RJ11 console port
Upstream signaling speed: 1.244 Gbps
Downstream signaling speed: 2.488 Gbps

Chassis—IES5206M
Item dimensions (WxDxH): 442 x 275 x 222 mm
Item weight: 13 kg
Management Switch Card—MSC1240XA
Item dimensions (WxDxH): 391 x 258 x 25 mm
Item weight: 1.2 kg
Management Switch Card—MSC1280XA
Item dimensions (WxDxH): 391 x 258 x 25 mm
Item weight: 1.2 kg
VDSL Line Card—VLC1448X-51S
Item dimensions (WxDxH): 391 x 258 x 25 mm
Item weight: 1.6 kg
VDSL Line Card—VLC1448X-51
Item dimensions (WxDxH): 391 x 258 x 25 mm
Item weight: 1.2 kg
Gigabit Ethernet Line Card—GLC1440X-55A
Item dimensions (WxDxH): 391 x 258 x 25 mm
Item weight: 1.1 kg
GPON Line Card—OLC3416-42A
Item dimensions (WxDxH): 391 x 258 x 25 mm
Item weight: 1.1 kg

MSC1240XA: 87 W
MSC1280XA: 93 W
VLC1448X-51: 73 W
VLC1448X-51S: 73 W
VEC1001X: 51 W
GLC1440X-55A: 83 W
OLC3416-42A: 69 W

Operating Environment
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 10% to 95% (Non-condensing)
Storage Environment
Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 10% to 95% (Non-condensing)

Safety:
EN60950-1
IEC60950-1
EMC:
EN55022 class A
EN55024 class A
ETSI 300 386 V1.6.1
ITU-T K.20
