Popis produktu:

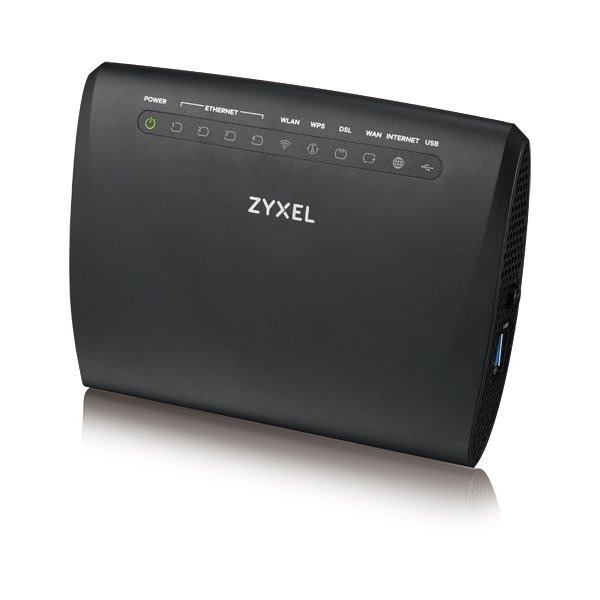

Zyxel VMG3312-T20A, Wireless N VDSL2 4-port Gateway Combo WAN Gigabit Gateway

The Zyxel VMG3312-T20A is an advanced VDSL2 gateway that provides autosensing between VDSL2 and ADSL2+ for high-speed Internet access. In addition, with supports to G.vectoring, it increases speed and coverage to compete with other broadband technologies without infrastructural change.

The Zyxel VMG3312-T20A integrates an IEEE 802.11 b/g/n access point and a 10/100 Ethernet switch for Local Area Network (LAN) access. It can act as a concentrator or power hub to distribute contents between different devices connected inside the LAN wired and wirelessly. We’ve also enhanced the WiFi ability to ensure a quality user experience.

Additionally, it comes with the multiple-WAN function suitable for future FTTH deployments with optimized CAPEX.

Users could also leverage the USB interface on the Zyxel VMG3312-T20A for file sharing or pair with a 3G USB dongle for mobile connectivity.

VDSL2 G.vectoring for maximized service coverage

Combo WAN-in-a-box for optimized CAPEX in FTTH/VDSL2 deployments

2.4 GHz 11n (2x2) for superior performance and coverage

Advanced QoS to ensure quality of triple-play services

Remote provisioning and management through TR-069/TR-181 issue-2

ROM-D feature for easy distributor/operator customization

Easy upgrade to 3G USB support through configuration files

VDSL2 Vectoring for maximized service coverage
The Zyxel VMG3312-T20A Wireless N VDSL2 Combo WAN Gateway comes with USB supports to the Vectoring technology that eliminates crosstalk or interference among different VDSL lines. With the mechanism, Vectoring significantly increases bit rates to compete with cable/fiber technologies as well as to enlarge service coverage without changing the current infrastructure — a way to significantly save cost comparing to fiber-to-thehome (FTTH) deployments, and the CAPEX can be optimized by the improved data rates and coverage without upgrading equipment.

Wireless Standard

802.11 b/g/n 2.4 GHz
VDSL Compliance

ITU-T G.993.2 VDSL2, band plan 997, 998
VDSL profiles (8a/b/c/d, 12a/b, 17a, 30a)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.inp): up to 16 symbols
SRA (Seamless Rate Adaptation)
UPBO (Upstream Power Back-off)
PhyR (Physical Layer Retransmission)
TR-114
ADSL Compliance

ITU-T G.992.1 (G.dmt) Annex A
ITU-T G.992.2 (G.lite) Annex A
ANSI T1.413
ITU-T G.992.3 ADSL2
ITU-T G.992.5 ADSL2+
ITU-T G.998.4 (G.inp)
Reach-Extended ADSL (RE ADSL)
SRA (Seamless Rate Adaption)
PhyR (Physical Layer Retransmission)
TR-067/100
WLAN

IEEE 802.11 b/g/n compliance
Frequency: 2.4 GHz
Data rate: 300 Mbps
WPA/WPA2
WPA2-PSK with AES
WPA/WPA2-PSK with AES/TKIP+AES
WEP data encryption 64/128 bit
Wireless Protected Setup (WPS)
Multi SSID (up to 4) and hidden SSID support
USB

File sharing
3G dongle
Bridge/Router

PPPoE (RFC2516)
PPPoA (RFC2364)
DHCP client/server/relay
DHCP option 60/61/125
DNS Proxy/Static DNS/DNS from ISP
NAT (Enable/Disable)
Fullcone NAT (Enable/Disable)
IGMP Proxy (Enable/Disable)
IGMP v1, v2, v3
IEEE 802.1d transparent bridge
NAT server (Port forwarding)
Static route/policy routing
IP protocol (IPv4/IPv6)
VLAN/QoS

VLAN Active (Enable/Disable)/802.1p (0-7)/802.1q (1-4094)
Support flexible traffic classification
TCP/UDP port range
Ether type (NA/IP/ARP/PPPoE Discovery/PPPoE Session/802.1Q/IPv6)
Source & Destination address/subnet mask/port range/MAC/MAC mask
Predefine service
IP protocol (TCP/UDP/ICMP/IGMP/User defined)
DHCP OPT (60/61/77/125)
Packet length
6-bit DiffServ code point (DSCP, RFC 2474)
TCP ACK
Firewall & Security

MAC filter
Scheduler rule
IPv4/IPv6 Firewall (Sateful packet inspection)
Parental control
ACL rule support: (32 ACL rules)
DoS protection
Management

Web/HTTP: 3 level log-in
Login privilege
Command Line Interpreter (CLI) via SSH or Telnet
Firmware upgrade via Web/TFTP/FTP/TR069 RPC method
Text based configuration (XML based)
Configuration backup/update/restore default via Web
Configurable access control for remote management (Interface and/port number)
Trust domain
DSL forum TR-069, TR-098, TR-181 issue-2, TR-064, TR-111
SNMP v1, v2
Rom-D support
TR-069 serial number parameter MUST be device serial number in back label

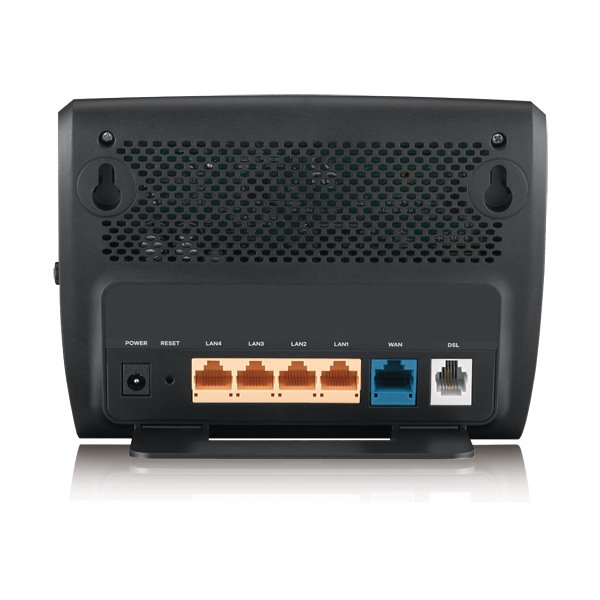

WAN:
One RJ-11 interface for VDSL/ADSL2 (over POTS)
One RJ-45 connector for Giga-Ethernet WAN port
LAN: 4 auto-sensing 10/100Mbps Ethernet LAN ports
Wireless: Two internal antennas
1 USB 2.0 host
Status LED indicator: Power, Ethernet, WLAN, WPS, DSL, WAN, Internet, USB
Power On/Off button
WLAN/WPS button
One button for WLAN on/off
One button for WPS configuration
Reset/Restore button
One real button for restore factory default settings
Power consumption: 10.96 Watt max

Item dimensions (WxDxH): 158 x 118 x 26 mm (6.22" x 4.64" x 1.02")
Item weight: 220 g (0.48 lb.)
Packing dimensions (WxDxH): 260 x 145 x 37 mm (10.23" x 5.7" x 1.45")
Packing weight: 440 g (0.97 lb.)

Package Contents
Wireless router
Power adapter
Ethernet cable
RJ-11 cable
Quick start guide
Safety warning card
