EX3301, WiFi 6 AX1800 5 Port IAD Gigabit Ethernet Gateway with Easy Mesh Support

The Zyxel EX3301-T0 provides high-speed internet access with QoS support to meet the worldwide market demand for triple-play services. With the built-in 2x2 802.11ax WLAN function and Zyxel MPro Mesh® Solutions, the Series provides seamless WiFi experience and superior, feature-rich WiFi connectivity for service providers to deliver high-performance internet access services.

WiFi 6 (11ax) for superior performance and coverage
Zyxel MPro Mesh® Solutions (compliant with EasyMesh standards)
Remote management via TR-069 and TR-181 i2
NAT, firewall with SPI and DoS for better security
VoIP SIP protocol with 3-way conference calls
Multiple SSIDs for various service deployment scenarios
Zyxel-developed OPAL for superior flexibility and faster time-to-market
Ecofriendly compact design

Benefits
WiFi 6 technology for superior lag-free performance
Supporting the latest WiFi 6 (11ax) standard, the Series offers speeds of up to 1200 Mbps* with 2x2 802.11ax and 574 Mbps* with 2x2 802.11ax. The uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA) and beamforming technologies empower the Series to deliver high speed internet for multi-streaming data access and optimal WiFi experience without dead zones.

Zyxel OPAL firmware achieves superior flexibility and faster time-to-market
Compliant with the same OPAL firmware trunk applied in all Zyxel CPEs,the Series inherits a rich, field-proven feature set for guaranteed unchanged user experience even after migrating to the new devices.

Quality of Service (QoS) support
With QoS features, service providers can freely design their QoS policies and prioritize mission-critical services such as IPTV and VoIP based on their service plan offerings. This improves network efficiency and productivity that enable service providers to offer a real multi-play solution to meet the residential user needs.

TR-069/TR-181 issue-2 remote management for lower OPEX
Compliant with TR-069, the Series significantly simplifies deployment complexity and lowers operating and maintenance costs. The additional support to the latest TR-181 issue-2 data model also enhances service providers' visibility on subscriber LAN networks to offer improved customer assistance.

Ecofriendly compact design
Zyxel commits to a sustainable future and to improving the environmental well-being of the community. The Zyxel EX3301-T0 adopts foldable stands with an ultra-thin exterior case to shrink each package volume, which improves pallet utilization by approximately 46% for lower carbon emissions.

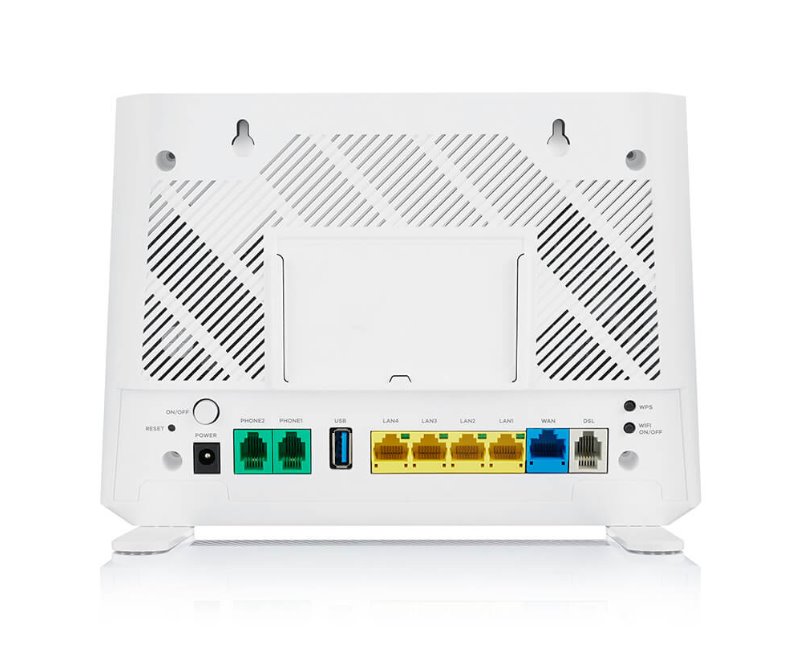

Hardware
WAN interface
RJ45/GbE

Ethernet port (10/100/1000)
5 (1 for Ethernet WAN)

POTS FXS port
2

USB port
1 (USB 2.0)

Router features
IPv4/IPv6
NAT
Port forwarding
WAN connection types: DHCP, PPPoE
DHCP option 60/121/125
DHCP server on LAN
IGMP v1/v2
IGMP proxy
Dynamic DNS
Wireless

Auto channel selection
WiFi Multimedia (WMM)
Wireless scheduling
Wireless output power management
Multiple SSID up to 4
Wi-Fi Protected Setup (WPS)
Intra-BSS traffic block
MAC address filtering

VLAN
802.1q tag/tag based VLAN
VLAN to ETH port mapping
Bridged/routed VLAN

WLAN
2.4 GHz 2x2 ax + 5 GHz 2x2 ax

Network
TCP/IP
Yes

PPPoE
Yes

DHCP client/server/relay
Yes

PPPoA
Yes

DHCP server
Yes

UPnP
Yes

IP policy routing
Yes

Multi-to-multi NAT
Yes

Dynamic DNS (DDNS)
Yes

IGMP
Yes

Management
Web configurator

Yes
TR-069/TR-181 i2

Yes
Remote firmware upgrade

Yes
SNMP

Yes

Button
Power on/off
Wireless on/off
WPS
Reset

Status LEDs indicators
Power
WAN
Internet
LAN
2.4 GHz
5 GHz
WPS
Phone (DX3301-T0 and EX3301-T0)

Power consumption
12V DC, 2A

Package contents
Wireless gateway/IAD
Power adapter
Ethernet cable
Phone cable
Quick Start Guide

Dimensions (WxDxH)(mm/in.)
220 x 35 x 153/8.66 x 1.38 x 6.02

Weight (g/lb.)
377/0.83
